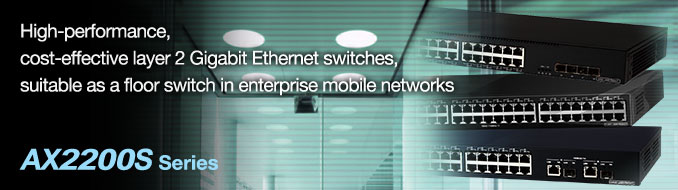

Layer 2 box-type switchesAX2200S Series
The AX2200S Series Switches are cost-effective layer 2 Gigabit Ethernet switches with PoE/PoE+ that are capable of accommodating 24 high-speed wireless access points.
Further, the AX2200S Series supports 60W-capable PoE for connection to new network devices such as digital signage displays.The AX2200S Series Switches also supports network authentication to reject unauthenticated access.
- 24 ports for 1 Gigabit Ethernet PoE/PoE+
- Possible to use a centralized authentication point to provide integrated security management that handles wired and wireless devices efficiently.
- PoE switch capable of feeding power to large capacity devices, suitable for use in smart buildings and commercial facilities
- Possible to feed power to various PoE devices, such as wireless access points, IP surveillance cameras, and so on.
- Four 60W-capable PoE ports for large capacity devices, such as thin clients, digital signage displays, etc.
Network Configuration Example
Enterprise LAN
Security
Triple authentication
- Supports three authentication methods (IEEE802.1X, Web, MAC), enabling flexible secure networking.
Multi-step authentication
- By using two authentication methods together, possible to configure a more robust security system.
High-performance web authentication
- Simultaneous authentication of a large number of terminals
DHCP Snooping
- Forwards only authorized packets coming from trusted DHCP clients whose IP addresses were issued by DHCP servers.
Quarantine solution
- Only PCs complying with a security policy can access a network.
Filtering
- Supports access control lists for layer 2, layer 3, and layer 4 headers.
VLAN
- Port-based VLAN, Tag-VLAN, protocol VLAN, MAC VLAN
Green IT and Power Saving
Dynamic power saving to cut unnecessary power use
- Auto power off to cut power to unused ports
- Scheduling: power consumption is reduced during the periods of low network usage (e.g., nighttime / holidays).
Energy saving design
- Low power consumption with low power architecture / circuit design and energy saving parts
Fanless models
- Suitable for use in places that should be noise-free (e.g., conference rooms)
- No dust accumulation and no moving parts, reducing chance of malfunction. (AX2230S-24T)
PoE/PoE+
PoE for reducing use of power cords
- 24 ports for Gigabit Ethernet PoE/PoE+ (AX2230S-24P)
- Capable of housing PoE devices (i.e., IP telephone, wireless AP), thus requiring fewer cables and reducing stress associated with wiring complexity, resulting in cost reduction and shorter construction periods.
- AX2230S-24P supports Class 3 (15.4W) power feeding at all ports (Max. 24 ports), as well as Class 4 (30.0W) power feeding using PoE+ (IEEE802.3at) (Max. 12 ports).
60W PoE
- Capable of 60W power feeding (Max. 4 ports).
High Reliability and High Availability
Ring protocol (supports only transit nodes.)
- Possible to configure a ring network using the ALAXALA proprietary layer 2 redundancy protocol enabling fast switchover within 1 sec.
- Possible to configure a high-flexibility, multi-ring network.
High reliability
- Improves reliability with link aggregation, STP, GSRP aware (Gigabit Switch Redundancy Protocol), uplink redundancy, UDLD, and EtherOAM.
Prevention of a loop failure
- Loop detection function prevents loops that may be accidentally caused by miscabling.
Storm control
- Storm control prevents the suspension of an entire system when storm has occurred.
QoS
- Granular QoS control enables priority control (for important packets / voice packets), port bandwidth control and so on.
IPv6
IPv6 Multicast in layer 2 networks
- Supports MLD snooping.
Operation Management and Maintenance
Unified CLI
- Unified Command Line Interface enabling easy operation and maintenance
Command-free maintenance
- Easy maintenance operation (e.g. backup data and update software.) just by inserting an SD card (script) into the switch
AX2230S
Model | AX2230S-24T | AX2230S-24P | ||
---|---|---|---|---|
Performance | Switching capacity (Gbit/s) | 56 | 56 | |
Packet forwarding rate (Mpacket/s) | 41.6 | 41.6 | ||
Max. ports | 1000BASE-SX/ SX2/LX/BX/LH (SFP) |
4 | 4 | |
10BASE-T/100BASE-TX/ 1000BASE-T |
24 | - | ||
10BASE-T/100BASE-TX/ 1000BASE-T [PoE/PoE+/60WPoE] |
- | 24 #1 | ||
Layer 2 features | MAC entries | 16K | ||
VLAN | Port VLAN, Tag-VLAN (IEEE 802.1Q), Protocol VLAN, MAC VLAN | |||
Spanning tree protocol | STP(IEEE 802.1D), RSTP(IEEE 802.1w), PVST+, MSTP(IEEE 802.1s), BPDU filter, Root guard, Loop guard | |||
Multicast | IGMPv1/v2 snooping, MLDv1/v2 snooping | |||
Ring protocol | Autonomous extensible ring protocol #2 | |||
Others | L2 loop detection, Storm control, IEEE802.3ah/UDLD, Ether OAM | |||
Advanced features | Network authentication | Triple authentication (IEEE802.1X, Web, MAC), Multi-step authentication, One-time password for Web authentication(RSA SecurID) #3 |
||
Security | Filtering(L2, IPv4, L4), DHCP snooping, Inter-port relay blocking | |||
QoS | Flow detection(L2, IPv4, L4), Marking(DSCP, user priority), Priority control(flow-based, user priority mapping), Discard control, Shaping(port bandwidth control, scheduling(PQ, WRR, PQ+WRR, WFQ)), Diff-serv |
|||
High reliability | Link aggregation(IEEE802.3ad), Uplink redundancy, GSRP aware | |||
Virtualization(Network partition) | - | |||
Others | IPv4 DHCP server, Secure wake on LAN #3 | |||
Operation management |
Network management | SNMPv1/v2c, MIB II, RMON, LLDP, Port mirroring | ||
Operation / maintenance | CLI, Command-free maintenance(SD card script), RADIUS, SSH #5, syslog, ping, traceroute, telnet, ftp, NTP |
|||
Power saving | Static power saving | Powering off ports | ||
Dynamic power saving | Powering off ports(scheduling), Suppressing power feeding for unused ports #4 | |||
Redundancy | - | |||
Fanless support | Fanless | - | ||
Equipmentconditions | Input voltage | AC 100-120V / 200-240V | ||
Max. input current (A) | 0.5 @ AC 100V 0.3 @ AC 200V |
6.7 @ AC 100V 3.4 @ AC 200V |
||
Max. power consumption (W) | 30 | 470 | ||
Max. heat output (kJ/h) | 108 | 1692 | ||
Dimensions W x D x H (mm) | 445 x 230 x 43 (1U) | 445 x 350 x 43 (1U) | ||
Weight (Kg) (Only main body) | 3 | 5 | ||
Environmentaltspecifications | Operating temperature | 0°C to 45°C | 0°C to 50°C | |
Non-operating temperature | -10°C to 50°C | |||
Storage temperature | -25°C to 65°C | |||
Operating relative humidity | 10% to 90% (non-condensing) | |||
Non-operating humidity | 8% to 90% (non-condensing) | |||
Storage relative humidity | 5% to 90% (non-condensing) | |||
Floating dust | Floating dust of about 10 microns or smaller: 0.15mg/m3 |
- #1
- The maximum number of ports for power feeding is 24 for Class 3 (15.4W), 12 for Class 4 (30.0W) and 4 (dedicated ports only) for 60.0W.
- #2
- Only transit is supported.
- #3
- Software option license is required.
- #4
- Supported on 10/100/1000BASE-T(UTP) ports.
- #5
- SSH function is subject to export control regulations, and may be excluded when exported.
