Layer 3 box-type switchesAX3660S Series
The AX3660S, which are compact Gigabit layer 3 switches, facilitate mission-critical services with high reliability and high performance functionality. They are suited for site-to-site connection and for use as a core/distribution switch in campus LANs.
# The AX3660S Series supports RoHS.

High-end model supporting rapid switchover by redundancy for mission-critical systems
- In an Ethernet ring, rapid switchover of 50 ms or less is possible.
- Usable as a VXLAN gateway, which allows you to realize a flexible virtual network.
- Supports policy-based mirroring, which enables per-tenant traffic monitoring.
- Builds a 10GBase-T (UTP) environment capable of accommodating 10G servers (AX3660S-48XT4QW).
- Equipped with 4 ports of 40G/100G (AX3660S-48XT4QW).
- Handles rapidly increasing smart devices (Max. 30,000 ARP entries and 200,000 MAC entries).

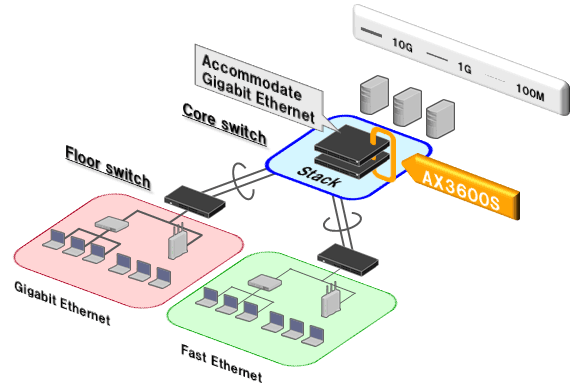

Network Configuration Example

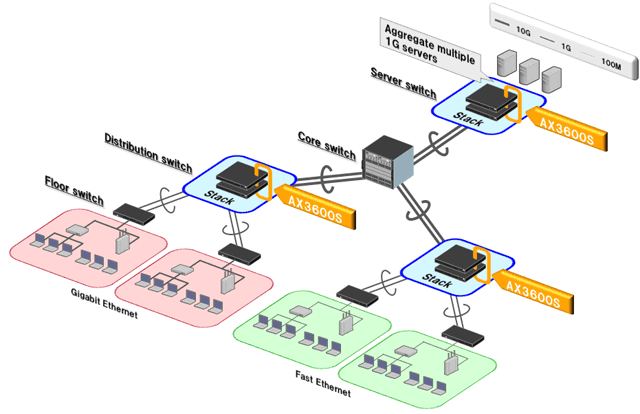

Example of Campus LAN

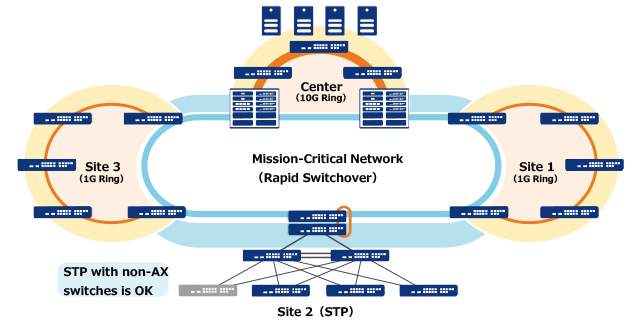

Example of Rapid Switchover Ring

Fault Tolerant Network
Non-stop network
- Link-aggregation-only redundant system without STP avoids troubles that might be caused due to system complexity and enhances network stability.
Stack
- Possible to handle multiple switches as a single switch (protocol-less redundancy, centralized management).
- Link aggregation with multiple switches allows route diversion if a link/device failure occurs (non-stop communication) .
- Stack by Ethernet port enables stacking of remotely separated switches.
Virtualization (VXLAN)
Network virtualization solution of the cloud era
- Supports the RFC-standard VXLAN (Virtual eXtensible Local area Network) function.
- Allows you to apply L2 extension (L2-VPN) to multiple sites over existing networks or carrier networks.
- Costs less to build a multi-tenant (with multiple sites/DCs) environment than the conventional techniques (VPLS/MPLS)

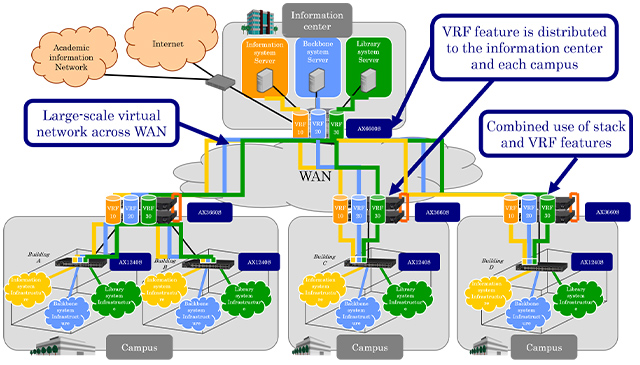

Virtualization (Network Partition)
Simple and low cost network virtualization
- Logical network segmentation by VRF (Virtual Routing and Forwarding) and VLAN (Virtual LAN)
- Secure and high reliability virtual network (partition) at low cost
Virtual Router (VRF function)
- Realizes a virtual network by managing multiple separate routing tables in a single device.
Flexible networking
- Possible for large enterprises and local government organizations to build an integrated network system on a wide area network where switches are located at multiple sites.
- Possible to set an independent IP address space for each partition (no address overlap, flexible network design).
- Cooperation with triple authentication enables secure login to partitions.
High Reliability & High Availability
Ring protocol
- ALAXALA-proprietary L2 redundancy protocol realizes a ring network that allows rapid switchover within 50 ms.
- A multi-ring configuration using multiple rings realizes flexible network topologies.
- Combination of Stack and Ring simplifies switch redundancy on each site.
High reliability functionality
- The functions such as link aggregation, STP/VRRP, GSRP (Gigabit Switch Redundancy Protocol), Uplink Redundant, Graceful Restart (helper), UDLD, and EtherOAM enhance the reliability of interfaces/routes.
- Switch redundancy enables in-service software update.
Loop prevention
- Supports the loop detection function, by which you can automatically prevent a loop that may be caused by misconnection.
Storm control
- The storm control function prevents an entire system down when a storm occurs.
QoS functionality
- Granular QoS control is possible (e.g., prioritization for mission-critical packets and voice packets vulnerable to delay, bandwidth control) .
Hot-swappable power supply unit
- The internal redundant power supply unit of the AX3660 Series is hot-swappable, thus non-stop replacement is possible.
Stable High-functionality Routing
Experience rich, field proven routing functionality
- High reliability, mission-critical level routing software (field-proven by ISPs/carriers) is installed.
- Using BGP4 and BFD together enables faster path switchover.
Policy-based routing
- Policy-based routing (IPv4) selects a best routing path for each traffic.
- Supports the tracking function, which facilitates communication failure detection and automatic path switchover.
- Combined use of Policy-Based Routing and Network Partition is possible.
IPv6 Support
High-speed IPv6 routing
- As with IPv4 routing, the AX3660S Series supports high-speed IPv6 routing by hardware.
- Rich functionality (e.g., static, RIPng, OSPFv3, BGP4+, multicast) helps build various IPv6 networks.
Cooperation with IPv6 multicast
- MLD Snooping is available that controls the output of IPv6 multicast packets.
Power Saving
Power saving design
- Focused on low power consumption, the AX3660S Series is designed on power-saving architecture/circuits using components that consume less electricity.
Security
Policy-based mirroring (PBM)
- Extracts and mirrors the data flow of specific users/applications.
- Reduces the total system cost by optimizing the bandwidth/performance of security devices.
- Supports Network Forensics, which assists a security device handling a large amount of data traffic.
Triple authentication
- Supports IEEE802.1X, Web-based authentication and MAC authentication. Thus, it is possible to perform user authentication in an environment containing various types of OS and terminal devices.
DHCP Snooping
- Rejects unauthorized fixed IP clients by blocking communications other than the IP addresses output from DHCP servers.
Quarantine solution
- Blocks the terminals that do not match the network policy in cooperation with authentication/quarantine servers.
Filtering
- Possible to block unauthorized traffic by ACL (Access Control List) of L2/L3/L4.
VLAN functionality
- Various VLAN features (Port VLAN, Tag-VLAN, Protocol VLAN, MAC VLAN) are available.
Operation Management & Maintenance
CLI common through the AX Series
- Supports the command line interface common through the AX Series, which realizes uniformed operation management and enhances maintenance operability.
Commandless maintenance
- Possible to automatically save logs and update firmware just by inserting an SD card.
Network management
- Supports the GUI management tool (AX-Network's Utility) to enhance operability.
Long Life Solution
Long-term stable operation
- Trouble resolution and maintenance parts delivery service for up to 10 years.
- Supports long life solution that enables long-term stable network operation.
AX3660S-24T4XW

|
Switching capacity:
|
Packet forwarding rate
|
Power supply type | Hot-swappable power supply unit |
---|---|
Input voltage | AC100 to 120V / 200 to 240V, DC -48V |
Dimensions | 445 (W) x450 (D) x43(H)mm (1U) |
Weight (with full installation) | 10.0 kg or less |
Max. power consumption | 130W, 145W (AC, DC) |
Permissible operating temperature / humidity |
-10 to 50℃ / 10 to 90% (non-condensing) |
AX3660S-24T4X

|
Switching capacity:
|
Packet forwarding rate
|
Power supply type | AC power supply x 2 (fixed) |
---|---|
Input voltage | AC100 to 120V / 200 to 240V, DC -48V |
Dimensions | 445 (W) x380 (D) x43(H)mm (1U) |
Weight (with full installation) | 6.0 kg or less |
Max. power consumption | 110W (AC) |
Permissible operating temperature / humidity |
-10 to 50℃ / 10 to 90% (non-condensing) |
AX3660S-16S4XW

|
Switching capacity:
|
Packet forwarding rate
|
Power supply type | Hot-swappable power supply unit |
---|---|
Input voltage | AC100 to 120V / 200 to 240V, DC -48V |
Dimensions | 445 (W) x450 (D) x43(H)mm (1U) |
Weight (with full installation) | 10.0 kg or less |
Max. power consumption | 135W, 150W (AC, DC) |
Permissible operating temperature / humidity |
-10 to 50℃ / 10 to 90% (non-condensing) |
AX3660S-24S8XW

|
Switching capacity:
|
Packet forwarding rate
|
Power supply type | Hot-swappable power supply unit |
---|---|
Input voltage | AC100 to 120V / 200 to 240V, DC -48V |
Dimensions | 445 (W) x450 (D) x43(H)mm (1U) |
Weight (with full installation) | 10.0 kg or less |
Max. power consumption | 155W, 165W (AC, DC) |
Permissible operating temperature / humidity |
-10 to 50℃ / 10 to 90% (non-condensing) |
AX3660S-48T4XW

|
Switching capacity:
|
Packet forwarding rate
|
Power supply type | Hot-swappable power supply unit |
---|---|
Input voltage | AC100 to 120V / 200 to 240V, DC -48V |
Dimensions | 445 (W) x450 (D) x43(H)mm (1U) |
Weight (with full installation) | 10.0 kg or less |
Max. power consumption | 140W, 155W (AC, DC) |
Permissible operating temperature / humidity |
-10 to 50℃ / 10 to 90% (non-condensing) |
AX3660S-48XT4QW

|
Switching capacity:
|
Packet forwarding rate
|
Power supply type | Hot-swappable power supply unit |
---|---|
Input voltage | AC100 to 120V / 200 to 240V, DC -48V |
Dimensions | 445 (W) x480 (D) x43(H)mm (1U) |
Weight (with full installation) | 11.0 kg or less |
Max. power consumption | 250W, 270W (AC, DC) |
Permissible operating temperature / humidity |
-10 to 50℃ / 10 to 90% (non-condensing) |
AX3660S-24X4QW

|
Switching capacity:
|
Packet forwarding rate
|
Power supply type | Hot-swappable power supply unit |
---|---|
Input voltage | AC100 to 120V / 200 to 240V, DC -48V |
Dimensions | 445 (W) x480 (D) x43(H)mm (1U) |
Weight (with full installation) | 11.0 kg or less |
Max. power consumption | 190W, 200W (AC, DC) |
Permissible operating temperature / humidity |
-10 to 50℃ / 10 to 90% (non-condensing) |
AX3660S-48X4QW

|
Switching capacity:
|
Packet forwarding rate
|
Power supply type | Hot-swappable power supply unit |
---|---|
Input voltage | AC100 to 120V / 200 to 240V, DC -48V |
Dimensions | 445 (W) x480 (D) x43(H)mm (1U) |
Weight (with full installation) | 11.0 kg or less |
Max. power consumption | 230W, 240W (AC, DC) |
Permissible operating temperature / humidity |
-10 to 50℃ / 10 to 90% (non-condensing) |
Click image for larger view
AX3660S-24T4X | AX3660S-24T4XW | AX3660S-16S4XW | AX3660S-24S8XW | AX3660S-48T4XW | AX3660S-48XT4QW | AX3660S-24X4QW | AX3660S-48X4QW | |||
---|---|---|---|---|---|---|---|---|---|---|
performance | Switching capacity (Gbit/s) | 288 | 288 | 296 | 392 | 336 | 1440 | 1280 | 1760 | |
Packet forwarding rate (Mpacket/s) | 214.3 | 214.3 | 220.2 | 291.7 | 250.0 | 714.2 | 519.3 | 758.9 | ||
Max. ports | 100GBASE-CR4/SR4/LR4 (QSFP28) | - | - | - | - | - | 4*3 *5 | 4*3 | 4*3 | |
40GBASE-CR4/SR4/LR4 (QSFP+) | 2 (for Stack) |
2 (for Stack) |
2 (for Stack) |
2 (for Stack) |
2 (for Stack) |
4*4 *5 | 4*4 | 4*4 | ||
10GBASE-CU/SR/LR/ER/ZR/BR (SFP+) | 4*1 | 4*1 | 4 | 8 | 4*1 | 4*1 *5 | 24*1 | 48*1 | ||
1000BASE-SX/LX/BX/LH/LHB (SFP) | 4*2 | 4*2 | 16 | 24 | 4*2 | 4*2 *5 | 24*2 | 48*2 | ||
100BASE-TX/1000BASE-T/10GBASE-T | - | - | - | - | - | 44 *5 | - | - | ||
10BASE-T/100BASE-TX/1000BASE-T | 24 | 24 | 12 | 12 | 48 | - | - | - | ||
10BASE-T/100BASE-TX/1000BASE-T (SFP) | - | - | 16 | 24 | - | - | 24*2 | 48*2 | ||
Routing protocol | IPv4 | Unicast | Static, RIP, RIP2, OSPF, BGP4, Policy-based routing | |||||||
Multicast | PIM-SM, PIM-SSM, IGMPv2/v3 | |||||||||
IPv6 | Unicast | Static, RIPng, OSPFv3, BGP4+ | ||||||||
Multicast | PIM-SM, PIM-SSM, MLDv1/v2 | |||||||||
Layer 2 features | VLAN | Port VLAN, Tag-VLAN (IEEE802.1Q), Protocol VLAN, MAC VLAN, Tag translation | ||||||||
Spanning tree protocol (STP) | STP(IEEE802.1D), RSTP(IEEE802.1w), PVST+, MSTP(IEEE802.1s), BPDU filter, Root guard, Loop guard | |||||||||
Multicast | IGMPv1/v2/v3 snooping, MLDv1/v2 snooping | |||||||||
Ring protocol | Autonomous Extensible Ring Protocol, Rapid switchover (50ms) | |||||||||
Other | L2 loop detection, Storm control, IEEE802.3ah/UDLD, Ether OAM | |||||||||
Network features |
Authentication | Triple authentication (IEEE802.1X, Web-based authentication, MAC authentication) | ||||||||
Security | Filtering (L2/IPv4/IPv6/L4), DHCP snooping, Inter-port relay blocking, Policy-based mirroring | |||||||||
QoS | Flow detection (L2/IPv4/IPv6/L4), Bandwidth monitoring (UPC (Policer)), Marking (DSCP/user priority), Priority control (flow-based, user priority mapping), Discard control, Shaping (port bandwidth control, scheduling (PQ, RR, PQ+DRR, PQ+WRR, WRR, WFQ)), Diff-serv | |||||||||
High reliability | Stack, Load balance (IPv4/IPv6), VRRP (IPv4/IPv6), Static polling (IPv4/IPv6), VRRP polling (IPv4/IPv6), Link aggregation (IEEE802.1AX), GSRP, Uplink redundancy, Graceful Restart, BFD (BGP4) | |||||||||
Virtualization | VRF (Virtual Routing and Forwarding), Inter-VRF routing, VXLAN | |||||||||
Other | IPv4 DHCP server/relay agent, IPv6 DHCP server (Prefix delegation)/relay agent, L2-VPN (VLAN tunneling) |
|||||||||
Operation management features | Network management | SNMPv1/v2c/v3, MIB-II, IPv6 MIB, RMON, sFlow, LLDP, OADP, CDP, Port mirroring | ||||||||
Operation / maintenance | CLI, OAN, Commandless maintenance (SD card script), RADIUS, TACACS+, SSH, syslog, ping, traceroute, telnet, ftp, tftp, NTP, IEEE1588 PTP (TC), Synchronous Ethernet *7 | |||||||||
Redundancy | PS unit (AC) | PS unit (AC, DC) | ||||||||
Equipment conditions |
Input voltage | AC100-120V/ 200-240V |
AC100-120V/ 200-240V, DC -48V |
AC100-120V/ 200-240V, DC -48V |
AC100-120V/ 200-240V, DC -48V |
AC100-120V/ 200-240V, DC -48V |
AC100-120V/ 200-240V, DC -48V |
AC100-120V/ 200-240V, DC -48V |
AC100-120V/ 200-240V, DC -48V |
|
Max. power consumption (W)(AC / DC) | 110/- | 130/145 | 135/150 | 155/165 | 140/155 | 250/270 | 190/200 | 230/240 | ||
Max. heat output (KJ/h) | 396/- | 468/522 | 486/540 | 558/594 | 504/558 | 900/972 | 684/720 | 828/864 | ||
Outer dimensions W x D x H (mm)[U: height] | 445x380x43 (1U) | 445x450x43 (1U) | 445x480x43 (1U) | |||||||
Weight (kg) (including PS units) | 6.0 or less | 10.0 or less | 11.0 or less | |||||||
Environmental conditions |
Operating temperature | -10℃ to 50℃ *6 | ||||||||
Non-operating temperature (when powered off) | -10℃ to 50℃ | |||||||||
Storage/transportation temperature | -25℃ to 65℃ | |||||||||
Operating humidity | 10% to 90% when AC power supply is in use (non-condensing), 10% to 80% when DC power supply is in use (non-condensing) |
|||||||||
Non-operating humidity (when powered off) | 10% to 90% (non-condensing) | |||||||||
Storage/transportation humidity | 10% to 90% (non-condensing) | |||||||||
Floating dust | Floating dust of about 10 microns or smaller: 0.15mg/m3 |
- *1
- These ports are SFP / SFP+ shared ports. The actual number of ports available for SFP+ is reduced by the number of ports used for SFP (1000BASE-X).
- *2
- These ports are SFP / SFP+ shared ports. The actual number of ports available for SFP is reduced by the number of ports used for SFP+ (10GBASE-R).
- *3
- These ports are QSFP28 / QSFP shared ports. The actual number of ports available for QSFP28 is reduced by the number of ports used for QSFP (40GBASE-R).
- *4
- These ports are QSFP28 / QSFP shared ports. The actual number of ports available for QSFP is reduced by the number of ports used for QSFP28 (100GBASE-R).
- *5
- Total bandwidth: up to 1440Gbps
- *6
- 0℃ to 50℃ when the device is being started up or when SFP-BX1U/1D,SFP-BX4U/4D is in use.
- *7
- For AX3660S-48X4QW only.
- #Functions supported by L3M advanced software: OSPF, OSPFv3, BGP4, BGP4+, VRF, Policy-based routing, VXLAN, Rapid switchover ring
