Layer 2 box-type switchesAX2500S Series

The AX2500S Series Switches are stackable(#1) feature-rich Gigabit Ethernet layer 2 switches, suitable as a distribution or floor switch in enterprise networks.
The AX2500S Series Switches support rich layer 2 features to meet the various demands of layer 2 networks.


Gigabit floor switches with high-scalability and high-performance authentication features
Stack function(#1) enables a small startup using a floor switch.
Feature-rich layer 2 functions (e.g. triple authentication, multi-step authentication, loop detection, ring protocol, etc.)
High-performance network authentication enables smooth authentication even with more robust 2048-bit SSL, which has been becoming popular in education and research fields.
Layer 2 distribution switches capable of simple redundancy and unified management
Stack function(#1) enables fast switchover within 1 second in the event of a failure.
Unified management for redundant switches
Stack will be supported in 2014.

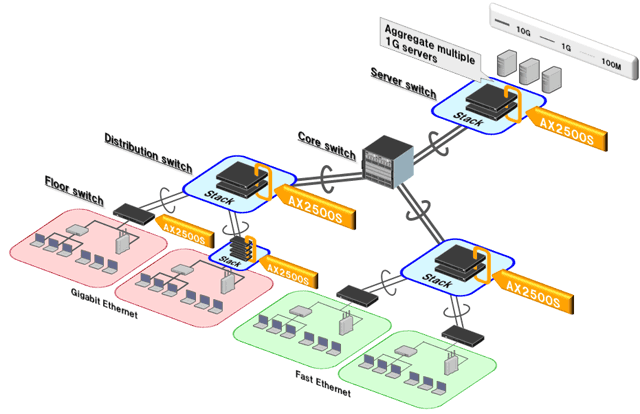

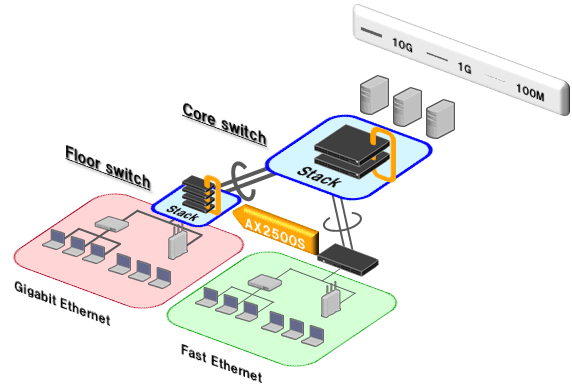

Network Configuration Example

Large-scale Enterprise LAN

Large-scale Enterprise LAN

Medium/small-scale Enterprise LAN

Medium/small-scale Enterprise LAN
  • IPv6 Ready Logo Phase2(Core)(Logo-ID-:02-C-000806)

    IPv6 Ready Logo Phase2(Core)

  • RoHS compliant


Triple authentication

  • Supports three authentication methods (IEEE802.1X, Web, MAC), enabling flexible secure networking.

Multi-step authentication

  • By using two authentication methods together, possible to configure a more robust security system.

Industry-leading web authentication performance

  • Simultaneous authentication of a large number of terminals
  • Smooth authentication even with more robust 2048-bit SSL

Dynamic ACL/QoS

  • Possible to specify Access Control List (ACL) dynamically in authentication, thus enables communication control for each user.

DHCP Snooping

  • Forwards only authorized packets coming from trusted DHCP clients whose IP addresses were issued by DHCP servers.

Quarantine solution

  • Only PCs complying with a security policy can access a network.


  • Supports access control lists for layer 2, layer 3, and layer 4 headers.


  • Port-based VLAN, Tag-VLAN, protocol VLAN, MAC VLAN

Fault Tolerant Network

Non-stop network

  • STP-free redundancy prevents trouble that is caused due to the complexity of using multiple protocols and provides more stable systems.


  • Stack enables multiple switches to operate together as a single switch, enabling simple protocol-free redundancy and unified management.
  • Link aggregation across stacked switches enables fast switchover in the event of a failure.
  • Ethernet cables are used for stacking, which enables long-haul communication between stack members. (To be supported in 2014.)

High Reliability and High Availability

Ring protocol

  • Possible to configure a ring network using the ALAXALA proprietary layer 2 redundancy protocol enabling fast switchover within 1 sec.
  • Possible to configure a high-flexibility, multi-ring network.

High reliability

  • Improves reliability with link aggregation, STP, GSRP aware(Gigabit Switch Redundancy Protocol), uplink redundancy, UDLD, and EtherOAM.

Prevention of a loop failure

  • Loop detection function prevents loops that may be caused by miscabling.

Storm control

  • Storm control prevents the suspension of an entire system when storm has occurred.


  • Granular QoS control enables priority control (for important packets / voice packets), port bandwidth control and so on.

Green IT and Power Saving

Dynamic power saving to cut unnecessary power use

  • Auto power off to cut power to unused ports
  • Device sleep: the switch shifts into the sleep mode according to a predetermined schedule.
  • Scheduling: power consumption is reduced during the periods of low network usage (e.g., nighttime / holidays).

Energy saving design

  • Low power consumption with low power architecture / circuit design and energy saving parts

Fanless models

  • Suitable for use in places that should be noise-free (e.g., conference rooms)
  • No dust accumulation and no moving parts, reducing chance of malfunction. (AX2530S-24T)

Optic Multi-port Models

Optic multi-port models for a large-scale LAN

  • A model with optical fiber ethernet (1000BASE-X) is available for use as a core or distribution switch in enterprise networks.

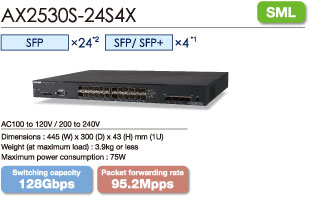

    AX2530S-2S4X : 24 ports for 1000BASE-X
  • Suitable for networks that require long distance wiring over 100m that UTP cables cannot reach, and for use in noisy environment (e.g. hospital, factory, etc.).


IPv6 Multicast in layer 2 networks

  • Supports MLD snooping.

Operation Management and Maintenance

Unified CLI

  • Unified Command Line Interface enabling easy operation and maintenance

Command-free maintenance

  • Easy maintenance operation (e.g. backup data and update software.) just by inserting an SD card (script) into the switch

AX2530SDescriptions for the marks

Click image for larger view


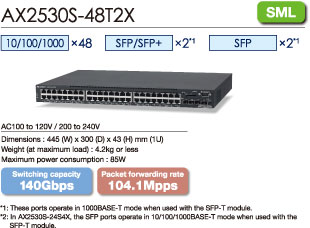

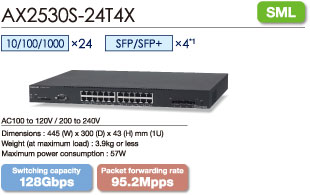

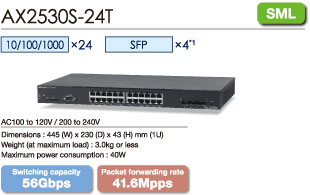

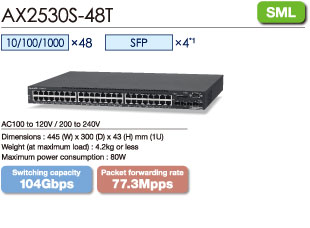

Model AX2530S
Performance Switching
capacity (Gbit/s)
56 128 128 104 140
forwarding rate
41.6 95.2 95.2 77.3 104.1
Max. ports 10GBASE-CU/SR/
- 4 #1 4 #1 - 2 #1
4 4 #3, 4 28 #3 #5 4 4 #3 #6
24 24 48 48
100BASE-FX (SFP) - - 24 - -
Layer 2 features MAC entries 32K
VLAN Port VLAN, Tag-VLAN (IEEE 802.1Q), Protocol VLAN, MAC VLAN, Tag translation
tree protocol
STP(IEEE 802.1D), RSTP(IEEE 802.1w), PVST+, MSTP(IEEE 802.1s), BPDU filter, Root guard, Loop guard
Multicast IGMPv1/v2 snooping, MLDv1/v2 snooping
Ring protocol Autonomous extensible ring protocol
Others L2 loop detection, Storm control, IEEE802.3ah/UDLD, Ether OAM
Advanced features Network
Triple authentication (IEEE802.1X, Web, MAC), Multi-step authentication, Dynamic ACL/QoS
One-time password for Web authentication(RSA SecurID) #7
Security Filtering(L2, IPv4, IPv6, L4), DHCP snooping, Inter-port relay blocking
QoS Flow detection(L2, IPv4, IPv6, L4), Marking(DSCP, user priority), Priority control(flow-based, user priority mapping),
Discard control, Shaping(port bandwidth control, scheduling(PQ, WRR, PQ+WRR, WFQ)), Diff-serv
High reliability Stack(*) #7, Split Multi Link(SML) #7, Link aggregation(IEEE802.3ad), Uplink redundancy, GSRP aware
(Network partition)
Others IPv4 DHCP server, L2-VPN(VLAN tunneling), Secure wake on LAN #7
Network management SNMPv1/v2c/v3, MIB II, IPv6 MIB, RMON, sFlow, LLDP, Port mirroring
Operation /
CLI, Command-free maintenance(SD card script), RADIUS,
SSH #10, syslog, ping, traceroute, telnet, ftp, tftp, NTP
Power saving Power consumption information indication
power saving
Powering off ports
power saving
Power control of the device, Powering off ports(scheduling), Suppressing power feeding for unused ports #8
Redundancy -
Fanless support Fanless - - Semi-fanless #9 -
Input voltage AC 100-120V / 200-240V
Max. input
current (A)
0.7 @
AC 100V
0.4 @
AC 200V
0.7 @
AC 100V
0.4 @
AC 200V
1.0 @
AC 100V
0.5 @
AC 200V
1.0 @
AC 100V
0.5 @
AC 200V
1.0 @
AC 100V
0.5 @
AC 200V
Max. power
consumption (W)
40 57 75 80 85
Max. heat output
144 205 270 288 306
W x D x H (mm)
445 x 230
x 43 (1U)
445 x 300
x 43 (1U)
445 x 300
x 43 (1U)
445 x 300
x 43 (1U)
445 x 300
x 43 (1U)
Weight (Kg)
(Only main body)
3.0 3.9 3.9 4.2 4.2
0°C to 45°C 0°C to 50°C 0°C to 50°C 0°C to 50°C 0°C to 50°C
-10°C to 60°C
-25°C to 65°C
Operating relative
10% to 90% (non-condensing)
8% to 90% (non-condensing)
Storage relative
5% to 90% (non-condensing)
Floating dust Floating dust of about 10 microns or smaller: 0.15mg/m3 or less
When SFP/SFP+ combo ports are used for 1000BASE-X(SFP), these values must be reduced by the number of such ports.
1000BASE-SX2 is not supported on the SFP/SFP+ combo ports.
When SFP/SFP+ combo ports are used for 10GBASE-R(SFP+), these values must be reduced by the number of such ports.
1000BASE-SX2 is not supported.
24 ports are available for 1000BASE-SX2.
2 ports are available for 1000BASE-SX2.
Software option license is required.
Supported on 10/100/1000BASE-T(UTP) ports.
The fan activates only when the temperature inside the switch has risen exceeding the permissible level (the fan is usually deactivated).
SSH function is subject to export control regulations, and may be excluded when exported.
  • * To be supported in the future.
