Layer 2 box-type switchesAX2200S Series

The AX2200S Series Switches are cost-effective layer 2 Gigabit Ethernet switches with PoE/PoE+ that are capable of accommodating 24 high-speed wireless access points.
Further, the AX2200S Series supports 60W-capable PoE for connection to new network devices such as digital signage displays.The AX2200S Series Switches also supports network authentication to reject unauthenticated access.

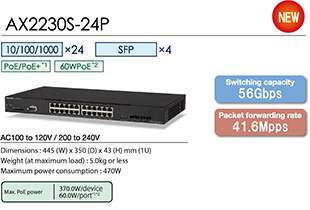

AX2230S-24P

24 ports for 1 Gigabit Ethernet PoE/PoE+
Possible to use a centralized authentication point to provide integrated security management that handles wired and wireless devices efficiently.
PoE switch capable of feeding power to large capacity devices, suitable for use in smart buildings and commercial facilities
Possible to feed power to various PoE devices, such as wireless access points, IP surveillance cameras, and so on.
Four 60W-capable PoE ports for large capacity devices, such as thin clients, digital signage displays, etc.

Network Configuration Example

Enterprise LAN

Enterprise LAN
  • RoHS compliant

Security

Triple authentication

  • Supports three authentication methods (IEEE802.1X, Web, MAC), enabling flexible secure networking.

Multi-step authentication

  • By using two authentication methods together, possible to configure a more robust security system.

High-performance web authentication

  • Simultaneous authentication of a large number of terminals

DHCP Snooping

  • Forwards only authorized packets coming from trusted DHCP clients whose IP addresses were issued by DHCP servers.

Quarantine solution

  • Only PCs complying with a security policy can access a network.

Filtering

  • Supports access control lists for layer 2, layer 3, and layer 4 headers.

VLAN

  • Port-based VLAN, Tag-VLAN, protocol VLAN, MAC VLAN

Green IT and Power Saving

Dynamic power saving to cut unnecessary power use

  • Auto power off to cut power to unused ports
  • Scheduling: power consumption is reduced during the periods of low network usage (e.g., nighttime / holidays).

Energy saving design

  • Low power consumption with low power architecture / circuit design and energy saving parts

Fanless models

  • Suitable for use in places that should be noise-free (e.g., conference rooms)
  • No dust accumulation and no moving parts, reducing chance of malfunction. (AX2230S-24T)

PoE/PoE+

PoE for reducing use of power cords

  • 24 ports for Gigabit Ethernet PoE/PoE+ (AX2230S-24P)
  • Capable of housing PoE devices (i.e., IP telephone, wireless AP), thus requiring fewer cables and reducing stress associated with wiring complexity, resulting in cost reduction and shorter construction periods.
  • AX2230S-24P supports Class 3 (15.4W) power feeding at all ports (Max. 24 ports), as well as Class 4 (30.0W) power feeding using PoE+ (IEEE802.3at) (Max. 12 ports).

60W PoE

  • Capable of 60W power feeding (Max. 4 ports).

High Reliability and High Availability

Ring protocol (supports only transit nodes.)

  • Possible to configure a ring network using the ALAXALA proprietary layer 2 redundancy protocol enabling fast switchover within 1 sec.
  • Possible to configure a high-flexibility, multi-ring network.

High reliability

  • Improves reliability with link aggregation, STP, GSRP aware (Gigabit Switch Redundancy Protocol), uplink redundancy, UDLD, and EtherOAM.

Prevention of a loop failure

  • Loop detection function prevents loops that may be accidentally caused by miscabling.

Storm control

  • Storm control prevents the suspension of an entire system when storm has occurred.

QoS

  • Granular QoS control enables priority control (for important packets / voice packets), port bandwidth control and so on.

IPv6

IPv6 Multicast in layer 2 networks

  • Supports MLD snooping.

Operation Management and Maintenance

Unified CLI

  • Unified Command Line Interface enabling easy operation and maintenance

Command-free maintenance

  • Easy maintenance operation (e.g. backup data and update software.) just by inserting an SD card (script) into the switch

AX2230SDescriptions for the marks

Click image for larger view

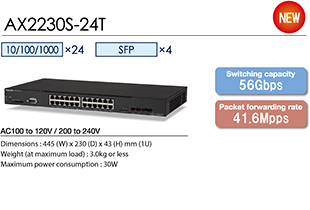

AX2230S

Model AX2230S-24T AX2230S-24P
Performance Switching capacity (Gbit/s) 56 56
Packet forwarding rate (Mpacket/s) 41.6 41.6
Max. ports 1000BASE-SX/
SX2/LX/BX/LH (SFP) 		4 4
10BASE-T/100BASE-TX/
1000BASE-T 		24 -
10BASE-T/100BASE-TX/
1000BASE-T
[PoE/PoE+/60WPoE] 		- 24 #1
Layer 2 features MAC entries 16K
VLAN Port VLAN, Tag-VLAN (IEEE 802.1Q), Protocol VLAN, MAC VLAN
Spanning tree protocol STP(IEEE 802.1D), RSTP(IEEE 802.1w), PVST+, MSTP(IEEE 802.1s), BPDU filter, Root guard, Loop guard
Multicast IGMPv1/v2 snooping, MLDv1/v2 snooping
Ring protocol Autonomous extensible ring protocol #2
Others L2 loop detection, Storm control, IEEE802.3ah/UDLD, Ether OAM
Advanced features Network authentication Triple authentication (IEEE802.1X, Web, MAC), Multi-step authentication,
One-time password for Web authentication(RSA SecurID) #3
Security Filtering(L2, IPv4, L4), DHCP snooping, Inter-port relay blocking
QoS Flow detection(L2, IPv4, L4), Marking(DSCP, user priority), Priority control(flow-based, user priority mapping),
Discard control, Shaping(port bandwidth control, scheduling(PQ, WRR, PQ+WRR, WFQ)), Diff-serv
High reliability Link aggregation(IEEE802.3ad), Uplink redundancy, GSRP aware
Virtualization(Network partition) -
Others IPv4 DHCP server, Secure wake on LAN #3
Operation
management 		Network management SNMPv1/v2c, MIB II, RMON, LLDP, Port mirroring
Operation / maintenance CLI, Command-free maintenance(SD card script), RADIUS,
SSH #5, syslog, ping, traceroute, telnet, ftp, NTP
Power saving Static power saving Powering off ports
Dynamic power saving Powering off ports(scheduling), Suppressing power feeding for unused ports #4
Redundancy -
Fanless support Fanless -
Equipment
conditions 		Input voltage AC 100-120V / 200-240V
Max. input current (A) 0.5 @ AC 100V
0.3 @ AC 200V 		6.7 @ AC 100V
3.4 @ AC 200V
Max. power consumption (W) 30 470
Max. heat output (kJ/h) 108 1692
Dimensions W x D x H (mm) 445 x 230 x 43 (1U) 445 x 350 x 43 (1U)
Weight (Kg) (Only main body) 3 5
Environmentalt
specifications 		Operating temperature 0°C to 45°C 0°C to 50°C
Non-operating temperature -10°C to 50°C
Storage temperature -25°C to 65°C
Operating relative humidity 10% to 90% (non-condensing)
Non-operating humidity 8% to 90% (non-condensing)
Storage relative humidity 5% to 90% (non-condensing)
Floating dust Floating dust of about 10 microns or smaller: 0.15mg/m3
#1
The maximum number of ports for power feeding is 24 for Class 3 (15.4W), 12 for Class 4 (30.0W) and 4 (dedicated ports only) for 60.0W.
#2
Only transit is supported.
#3
Software option license is required.
#4
Supported on 10/100/1000BASE-T(UTP) ports.
#5
SSH function is subject to export control regulations, and may be excluded when exported.
