構成定義ガイド
- <この項の構成>
- (1) 設定内容の概要
- (2) 構成図と設定条件
- (3) 構成定義情報例
(1) 設定内容の概要
フィルタおよびQoS制御機能を使用して,完全優先型のネットワーク構成例(EFサービス)を示します。リアルタイム性の高い映像や音声等のフローを最優先で,それ以外のフローはベストエフォートで送信する場合に有効な構成です。
Boundaryノードは,送信元IPアドレスでフローを検出したあと,QoS制御方針に基づきDSCPをマーキングします。後続のルータは,DSCPごとにフローをスケジューリングします。なお本構成例では,装置A側から装置B方向へのフローだけを対象にしています。
(2) 構成図と設定条件
- [構成図]

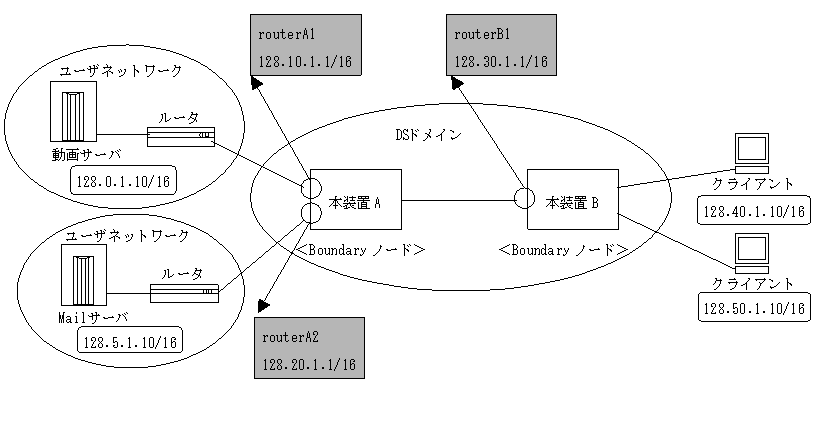

図13-19 構成図
- [設定条件]
- <本装置A/本装置Bのインタフェース>
表13-49 本装置A/本装置Bのインタフェース設定条件
装置名 インタフェース名 インタフェース種別 QoSキュー属性 本装置A routerA1 WAN OC-3c 完全優先 routerA2 WAN OC-3c 完全優先 本装置B routerB1 WAN OC-3c 完全優先
- <本装置A>
- パケット受信時に送信元IPアドレスによりフローを検出し,DSCP値を決定します。
表13-50 本装置Aの設定条件
インタフェース名 inbound/outbound 送信元IPアドレス DSCP書換え値 routerA1 inbound 128.0.1.10/16 46 その他 0 routerA2 inbound すべて 0 - パケット送信時にDSCP値によりフローを検出し,出力優先度,キューイング優先度を決定します。
表13-51 本装置Aの設定条件
インタフェース名 inbound/outbound DSCP値 契約帯域 違反時 出力優先度 キューイング優先度 routerA1 inbound 46 30M フレーム廃棄 6 4 routerA2 inbound 0 − − 1 1
- <本装置B>
- 受信したパケットのDSCP値から,EFの推奨値である出力優先度とキューイング優先度を決定します。
表13-52 本装置Bの設定条件
インタフェース名 inbound/outbound DSCP値 出力優先度 キューイング優先度 routerB1 inbound 46 6 4 0 1 1
(3) 構成定義情報例
- 本装置Aの設定
- [コマンドによる設定]
1 (config)# flow filter routerA1 in [flow filter routerA1 in] 2 (config)# list 1 ip 128.0.1.10 any action replace_dscp 46 [flow filter routerA1 in] 3 (config)# list 2 ip any any action replace_dscp 0 [flow filter routerA1 in] 4 (config)# exit 5 (config)# flow filter routerA2 in [flow filter routerA2 in] 6 (config)# list 1 ip any any action replace_dscp 0 [flow filter routerA2 in] 7 (config)# exit 8 (config)# flow qos routerA1 in [flow qos routerA1 in] 9 (config)# list 1 ip any any dscp 46 action upc 30000 priority 6 discard 1 [flow qos routerA1 in] 10 (config)# list 2 ip any any dscp 0 action priority 1 discard 4 [flow qos routerA1 in] 11 (config)# exit 12 (config)# flow qos routerA2 in [flow qos routerA2 in] 13 (config)# list 1 ip any any dscp 46 action upc 30000 priority 6 discard 1 [flow qos routerA2 in] 14 (config)# list 2 ip any any dscp 0 action priority 1 discard 4 [flow qos routerA2 in] 15 (config)# exit 16 (config)# flow yes表13-53 本装置Aの構成定義情報解説
解説番号 解説 1,2 インタフェース名称routerA1のinbound(受信側)に128.0.1.10のIPアドレスを送信元とするパケットのDSCP書き換え値=46に設定します(EFサービスのMF ClassifierとMarkerとして定義します)。 3,4 インタフェース名称routerA1のinbound(受信側)のリストに当てはまらなかったすべてのパケットをDSCP書き換え値=0に設定します(MF ClassifierとMarkerとして定義します)。 5〜7 インタフェース名称routerA2のinbound(受信側)において,すべてのパケットをDSCP書き換え値=0に設定します(MF ClassifierとMarkerとして定義します)。 8,9 インタフェース名称routerA1のinbound(受信側)DSCP値=46のパケットを契約帯域=30M,出力優先度=6,キューイング優先度=1によりQoS制御をします(BA Classifierとして定義します)。 10,11 インタフェース名称routerA1のinbound(受信側)DSCP値=0のパケットを出力優先度=1,キューイング優先度=4によりQoS制御をします(BA Classifierとして定義します)。 12,13 インタフェース名称routerA2のinbound(受信側)DSCP値=46のパケットを契約帯域=30M,出力優先度=6,キューイング優先度=1によりQoS制御をします(BA Classifierとして定義します)。 14,15 インタフェース名称routerA2のinbound(受信側)DSCP値=0のパケットを出力優先度=1,キューイング優先度=4によりQoS制御をします(BA Classifierとして定義します)。 16 フロー制御機能を使用する設定にします。
- [構成定義情報の表示]
flow yes flow filter routerA1 in list 1 ip 128.0.1.10 any action replace_dscp 46 list 2 ip any any action replace_dscp 0 flow filter routerA2 in list 1 ip any any action replace_dscp 0 flow qos routerA1 in list 1 ip any any dscp 46 action upc 30000 priority 6 discard 1 list 2 ip any any dscp 0 action priority 1 discard 4 flow qos routerA2 in list 1 ip any any dscp 46 action upc 30000 priority 6 discard 1 list 2 ip any any dscp 0 action priority 1 discard 4
- 本装置Bの設定
- [コマンドによる設定]
1 (config)# flow qos routerB1 in [flow qos routerB1 in] 2 (config)# list 1 ip any any dscp 46 action priority 6 discard 1 [flow qos routerB1 in] 3 (config)# list 2 ip any any dscp 0 action priority 1 discard 4 [flow qos routerB1 in] 4 (config)# exit 5 (config)# flow yes表13-54 本装置Bの構成定義情報解説
解説番号 解説 1,2 インタフェース名称routerB1のinbound(受信側)にDSCP値=46のパケットを出力優先度=6,キューイング優先度=1によりQoS制御をします(EFサービスのMF ClassifierとMarkerとして定義します)。 3,4 インタフェース名称routerB1のinbound(受信側)にDSCP値=0のパケットを出力優先度=1,キューイング優先度=4によりQoS制御をします(BA Classifierとして定義します)。 5 フロー制御機能を使用する設定にします。
- [構成定義情報の表示]
flow yes flow qos routerB1 in list 1 ip any any dscp 46 action priority6 discard 1 list 2 ip any any dscp 0 action priority 1 discard 4
