33.1.1 Overview of IPv6 Multicast Route Filtering
IPv6 multicast route filtering controls routes by filtering IPv6 multicast routes. This function is used only for IPv6 multicast extranets.
- <Structure of this section>
(1) IPv6 multicast extranet route filtering
To achieve IPv6 multicast extranets, you must pass forwarding requestsbetween VRF. The Switch uses a method for exchanging forwarding requests between VRF routing protocols. IPv6 multicast extranet route filtering filters forwarding requests between VRF routing protocols. This feature enables you to control whether forwarding requests are accepted between VRF for each destination IP for multicast packets. IPv6 multicast routing protocol refers to the unicast extranet routing information for the source IP address, so it follows the unicast extranet path filter.
If route filtering is not set for IPv6 multicast extranet, all forwarding requests between VRF are discarded.

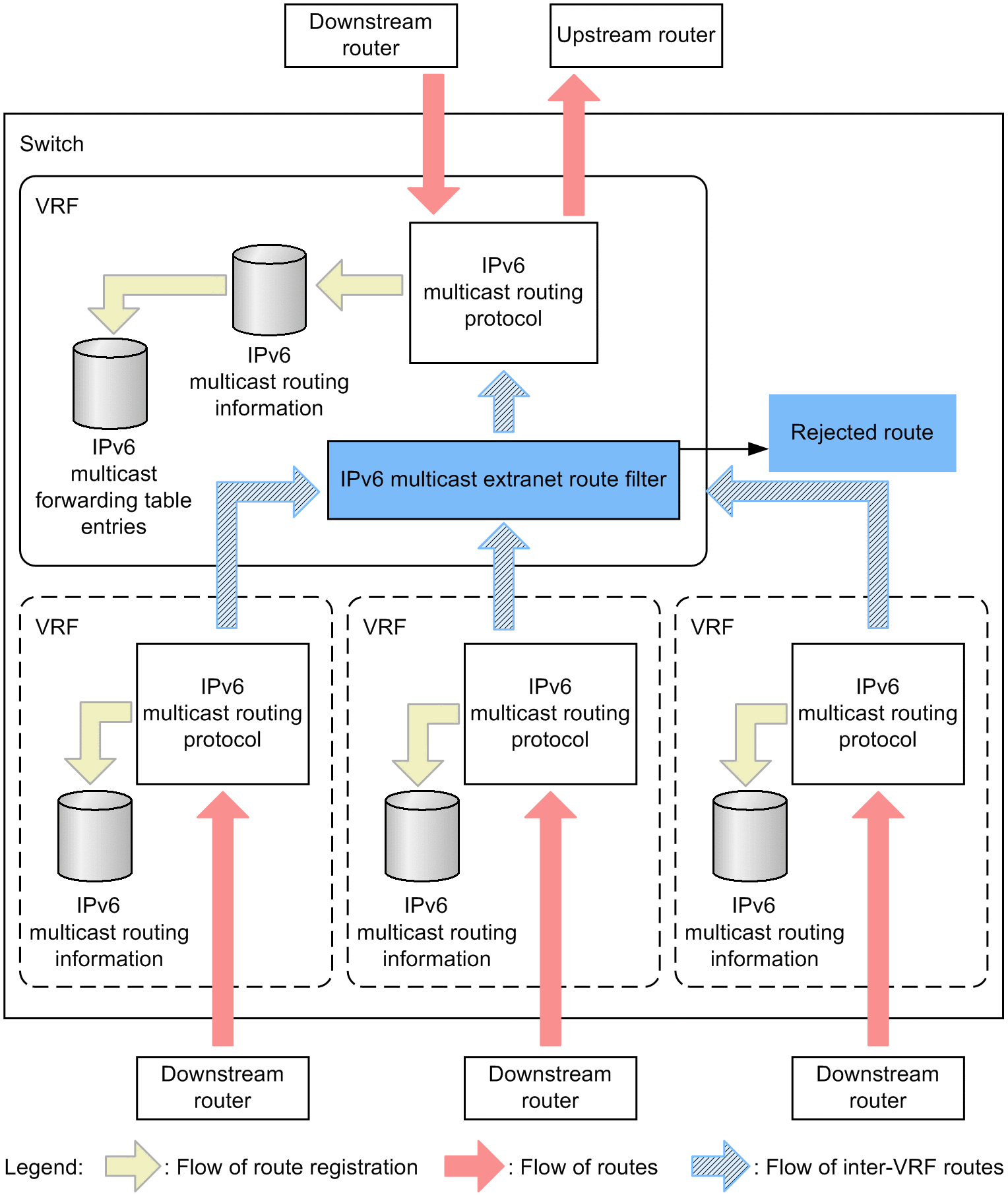

The following diagram shows the concepts of route filtering for IPv6 multicast extranet.
|
|
![[Figure Data]](./GRAPHICS/ZU332010.GIF)
