22.1 Description of the connected interface

The figure below shows an example of a typical Ethernet configuration that uses the Switch. In this example, the use of 10GBASE-R for connections between buildings and between servers improves communication performance between servers, as compared to the use of 10BASE-T, 100BASE-TX, 1000BASE-T, or 1000BASE-X.

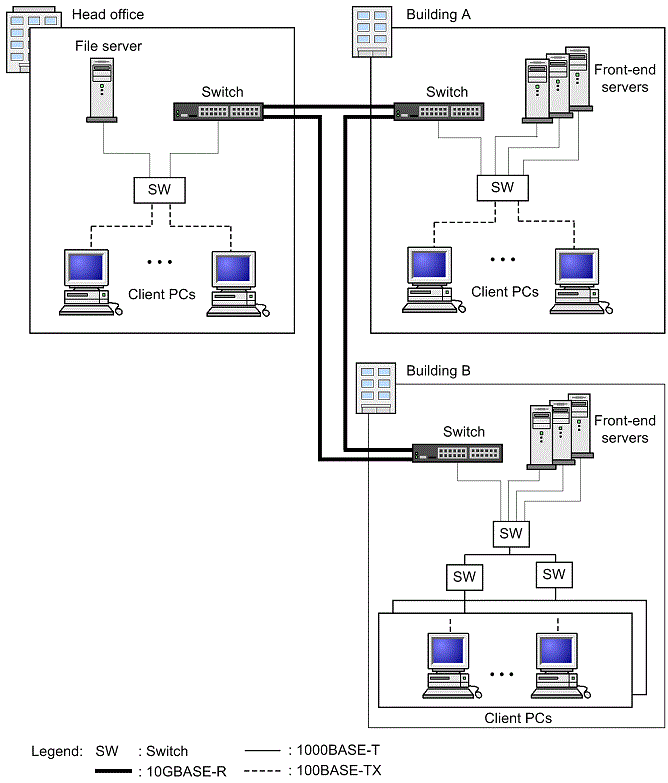

Figure 22-1: Example of Ethernet configuration

<Structure of this section>

• 22.1.1 Port Types and Supported Functions

• 22.1.2 10BASE-T/100BASE-TX/1000BASE-T

• 22.1.3 1000BASE-X

• 22.1.4 10GBASE-R
