12.4.3 BGP4+プロトコル(ルート・リフレクション)

<この項の構成>
(1) 設定内容の概要
(2) 構成図と設定条件
(3) コンフィグレーション例

(1) 設定内容の概要

AS番号200の自律システム(AS200)とAS番号300の自律システム(AS300)に接続されたAS番号100の自律システム(AS100)において,AS200およびAS300から広告された経路情報をAS内に配布します。また,AS内のネットワークをスタティック定義し,AS200およびAS300に広告します。

(2) 構成図と設定条件

[構成図]

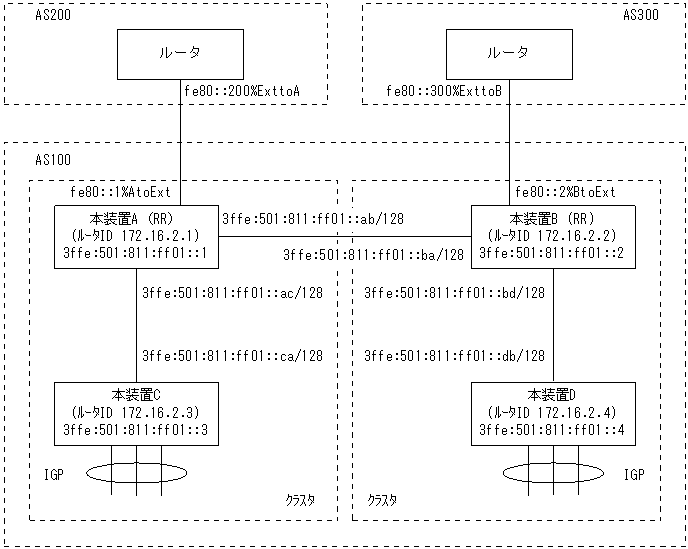

図12-15 構成図

[図データ]

[設定条件]

<本装置A/Bの環境>
  1. AS番号200/300の自律システムと外部ピアによりピアリングします。
  2. 本装置A/Bはおのおの本装置C/Dのルート・リフレクタとしてピアリングします。
  3. AS番号200/300の自律システムから受信した経路および直結経路をAS内に広告します。
  4. AS内のネットワークをスタティック定義し,AS番号200/300の自律システムに広告します。

<本装置C/Dの環境>
  1. 本装置C/Dはおのおの本装置A/Bのクライアントとしてピアリングします。
  2. デフォルト経路等のIGP(Interior Gateway Protocol)への配布,内部経路のBGP4+への配布は省略しています。

(3) コンフィグレーション例

[コマンドによる設定]

<本装置A>
 1    (config)# local-address 3ffe:501:811:ff01::1
 2    (config)# autonomoussystem 100
 3    (config)# routerid 172.16.2.1
 4    (config)# ripng yes
      [ripng]
 5    (config)# interface all
      [ripng interface all]
 6    (config)# ripin
      [ripng interface all]
 7    (config)# ripout
      [ripng interface all]
 8    (config)# exit
      [ripng]
 9    (config)# interface AtoExt
      [ripng interface AtoExt]
10    (config)# noripin
      [ripng interface AtoExt]
11    (config)# noripout
      [ripng interface AtoExt]
12    (config)# exit
      [ripng]
13    (config)# exit
14    (config)# bgp4+ yes
      [bgp4+]
15    (config)# clusterid 172.16.2.1
      [bgp4+]
16    (config)# externalpeeras 200
      [bgp4+ externalpeeras 200]
17    (config)# peer fe80::200%AtoExt
      [bgp4+ externalpeeras 200 peer fe80::200%AtoExt]
18    (config)# exit
      [bgp4+ externalpeeras 200]
19    (config)# exit
      [bgp4+]
20    (config)# routingpeeras 100
      [bgp4+ routingpeeras 100]
21    (config)# lcladdr 3ffe:501:811:ff01::1
      [bgp4+ routingpeeras 100]
22    (config)# peer 3ffe:501:811:ff01::2
      [bgp4+ routingpeeras 100 peer 3ffe:501:811:ff01::2]
23    (config)# exit
      [bgp4+ routingpeeras 100]
24    (config)# exit
      [bgp4+]
25    (config)# routingpeeras 100 reflector-client
      [bgp4+ routingpeeras 100 reflector-client]
26    (config)# lcladdr 3ffe:501:811:ff01::1
      [bgp4+ routingpeeras 100 reflector-client]
27    (config)# peer 3ffe:501:811:ff01::3
      [bgp4+ routingpeeras 100 reflector-client peer 3ffe:501:811:ff01::3]
28    (config)# exit
      [bgp4+ routingpeeras 100 reflector-client]
29    (config)# exit
      [bgp4+]
30    (config)# exit
31    (config)# export proto bgp4+ as 100
      [export proto bgp4+ as 100]
32    (config)# proto bgp4+ as 200
      [export proto bgp4+ as 100 proto bgp4+ as 200]
33    (config)# exit
      [export proto bgp4+ as 100]
34    (config)# proto bgp4+ as 100
      [export proto bgp4+ as 100 proto bgp4+ as 100]
35    (config)# exit
      [export proto bgp4+ as 100]
36    (config)# exit
37    (config)# static
      [static]
38    (config)# 3ffe:501:811:ff01::/64 interface null
      [static]
39    (config)# exit
40    (config)# export proto bgp4+ as 200
      [export proto bgp4+ as 200]
41    (config)# proto static
      [export proto bgp4+ as 200 proto static]
42    (config)# 3ffe:501:811:ff01::/64 exact
      [export proto bgp4+ as 200 proto static]
43    (config)# exit
      [export proto bgp4+ as 200]
44    (config)# exit

表12-48 本装置Aのコンフィグレーション解説

解説番号 解説
1 自装置アドレスを定義します。
2 自装置の属するAS番号を定義します。
3 自装置のルータIDを定義します。
4〜13 自AS内向けの各インタフェースでRIPngを定義します。
14 BGP4+プロトコルを動作させることを定義します。
15 ルート・リフレクションで使用するクラスタIDを定義します。
16〜19 AS200に対する外部ピアを定義します。
20〜24 本装置Bへの内部ピアを定義します。
25〜30 自装置がルート・リフレクタであり,クライアントである本装置Cへの内部ピアを定義します。
31〜33 AS200から受信した経路情報をAS内の内部ピアに広告するよう定義します。
34〜36 経路をリフレクト(AS100→AS100)するよう定義します。
37〜39 AS内のネットワークをスタティック経路として定義します。
40〜44 生成したスタティック経路をAS200との外部ピアに広告するよう定義します。

<本装置B>
 1    (config)# local-address 3ffe:501:811:ff01::2
 2    (config)# autonomoussystem 100
 3    (config)# routerid 172.16.2.2
 4    (config)# ripng yes
      [ripng]
 5    (config)# interface all
      [ripng interface all]
 6    (config)# ripin
      [ripng interface all]
 7    (config)# ripout
      [ripng interface all]
 8    (config)# exit
      [ripng]
 9    (config)# interface BtoExt
      [ripng interface BtoExt]
10    (config)# noripin
      [ripng interface BtoExt]
11    (config)# noripout
      [ripng interface BtoExt]
12    (config)# exit
      [ripng]
13    (config)# exit
14    (config)# bgp4+ yes
      [bgp4+]
15    (config)# clusterid 172.16.2.2
      [bgp4+]
16    (config)# externalpeeras 300
      [bgp4+ externalpeeras 300]
17    (config)# peer fe80::300%BtoExt
      [bgp4+ externalpeeras 300 peer fe80::300%BtoExt]
18    (config)# exit
      [bgp4+ externalpeeras 300]
19    (config)# exit
      [bgp4+]
20    (config)# routingpeeras 100
      [bgp4+ routingpeeras 100]
21    (config)# lcladdr 3ffe:501:811:ff01::2
      [bgp4+ routingpeeras 100]
22    (config)# peer 3ffe:501:811:ff01::1
      [bgp4+ routingpeeras 100 peer 3ffe:501:811:ff01::1]
23    (config)# exit
      [bgp4+ routingpeeras 100]
24    (config)# exit
      [bgp4+]
25    (config)# routingpeeras 100 reflector-client
      [bgp4+ routingpeeras 100 reflector-client]
26    (config)# lcladdr 3ffe:501:811:ff01::2
      [bgp4+ routingpeeras 100 reflector-client]
27    (config)# peer 3ffe:501:811:ff01::4
      [bgp4+ routingpeeras 100 reflector-client peer 3ffe:501:811:ff01::4]
28    (config)# exit
      [bgp4+ routingpeeras 100 reflector-client]
29    (config)# exit
      [bgp4+]
30    (config)# exit
31    (config)# export proto bgp4+ as 100
      [export proto bgp4+ as 100]
32    (config)# proto bgp4+ as 300
      [export proto bgp4+ as 100 proto bgp4+ as 300]
33    (config)# exit
      [export proto bgp4+ as 100]
34    (config)# proto bgp4+ as 100
      [export proto bgp4+ as 100 proto bgp4+ as 100]
35    (config)# exit
      [export proto bgp4+ as 100]
36    (config)# exit
37    (config)# static
      [static]
38    (config)# 3ffe:501:811:ff01::/64 interface null
      [static]
39    (config)# exit
40    (config)# export proto bgp4+ as 300
      [export proto bgp4+ as 300]
41    (config)# proto static
      [export proto bgp4+ as 300 proto static]
42    (config)# 3ffe:501:811:ff01::/64 exact
      [export proto bgp4+ as 300 proto static]
43    (config)# exit
      [export proto bgp4+ as 300]
44    (config)# exit

表12-49 本装置Bのコンフィグレーション解説

解説番号 解説
1〜15 <本装置A>の解説番号1〜15に同じ
16〜19 AS300に対する外部ピアを定義します。
20〜24 本装置Bへの内部ピアを定義します。
25〜30 自装置がルート・リフレクタであり,クライアントである本装置Cへの内部ピアを定義します。
31〜33 AS300から受信した経路情報をAS内の内部ピアに広告するよう定義します。
34〜36 経路をリフレクト(AS100→AS100)するよう定義します。
37〜39 AS内のネットワークをスタティック経路として定義します。
40〜44 生成したスタティック経路をAS300との外部ピアに広告するよう定義します。

<本装置C>
 1    (config)# local-address 3ffe:501:811:ff01::3
 2    (config)# autonomoussystem 100
 3    (config)# routerid 172.16.2.3
 4    (config)# ripng yes
      [ripng]
 5    (config)# interface all
      [ripng interface all]
 6    (config)# ripin
      [ripng interface all]
 7    (config)# ripout
      [ripng interface all]
 8    (config)# exit
      [ripng]
 9    (config)# exit
10    (config)# bgp4+ yes
      [bgp4+]
11    (config)# routingpeeras 100
      [bgp4+ routingpeeras 100]
12    (config)# lcladdr 3ffe:501:811:ff01::3
      [bgp4+ routingpeeras 100]
13    (config)# peer 3ffe:501:811:ff01::1
      [bgp4+ routingpeeras 100 peer 3ffe:501:811:ff01::1]
14    (config)# exit
      [bgp4+ routingpeeras 100]
15    (config)# exit
      [bgp4+]
16    (config)# exit

表12-50 本装置Cのコンフィグレーション解説

解説番号 解説
1〜9 <本装置A>の解説番号1〜9に同じ
10 BGP4+プロトコルを動作させることを定義します。
11〜16 本装置Aへの内部ピアを定義します。

<本装置D>
 1    (config)# local-address 3ffe:501:811:ff01::4
 2    (config)# autonomoussystem 100
 3    (config)# routerid 172.16.2.4
 4    (config)# ripng yes
      [ripng]
 5    (config)# interface all
      [ripng interface all]
 6    (config)# ripin
      [ripng interface all]
 7    (config)# ripout
      [ripng interface all]
 8    (config)# exit
      [ripng]
 9    (config)# exit
10    (config)# bgp4+ yes
      [bgp4+]
11    (config)# routingpeeras 100
      [bgp4+ routingpeeras 100]
12    (config)# lcladdr 3ffe:501:811:ff01::4
      [bgp4+ routingpeeras 100]
13    (config)# peer 3ffe:501:811:ff01::2
      [bgp4+ routingpeeras 100 peer 3ffe:501:811:ff01::2]
14    (config)# exit
      [bgp4+ routingpeeras 100]
15    (config)# exit
      [bgp4+]
16    (config)# exit

表12-51 本装置Dのコンフィグレーション解説

解説番号 解説
1〜9 <本装置A>の解説番号1〜9に同じ
10 BGP4+プロトコルを動作させることを定義します。
11〜16 本装置Cへの内部ピアを定義します。

[コンフィグレーションの表示]

<本装置A>
local-address 3ffe:501:811:ff01::1
!
autonomoussystem 100
!
routerid 172.16.2.1
!
ripng yes
  interface all
    ripin
    ripout
  interface AtoExt
    noripin
    noripout
!
bgp4+ yes
  clusterid 172.16.2.1
  routingpeeras 100
    lcladdr 3ffe:501:811:ff01::1
    peer 3ffe:501:811:ff01::2
  routingpeeras 100 reflector-client
    lcladdr 3ffe:501:811:ff01::1
    peer 3ffe:501:811:ff01::3
  externalpeeras 200
    peer fe80::200%AtoExt
!
static
  3ffe:501:811:ff01::/64 interface null
!
export proto bgp4+ as 100
  proto bgp4+ as 200
  proto bgp4+ as 100
!
export proto bgp4+ as 200
  proto static
    3ffe:501:811:ff01::/64 exact

<本装置B>
local-address 3ffe:501:811:ff01::2
!
autonomoussystem 100
!
routerid 172.16.2.2
!
ripng yes
  interface all
    ripin
    ripout
  interface BtoExt
    noripin
    noripout
!
bgp4+ yes
  clusterid 172.16.2.2
  routingpeeras 100
    lcladdr 3ffe:501:811:ff01::2
    peer 3ffe:501:811:ff01::1
  routingpeeras 100 reflector-client
    lcladdr 3ffe:501:811:ff01::2
    peer 3ffe:501:811:ff01::4
  externalpeeras 300
    peer fe80::300%BtoExt
!
static
  3ffe:501:811:ff01::/64 interface null
!
export proto bgp4+ as 100
  proto bgp4+ as 300
  proto bgp4+ as 100
!
export proto bgp4+ as 300
  proto static
    3ffe:501:811:ff01::/64 exact

<本装置C>
local-address 3ffe:501:811:ff01::3
!
autonomoussystem 100
!
routerid 172.16.2.3
!
ripng yes
  interface all
    ripin
    ripout
!
bgp4+ yes
  routingpeeras 100
    lcladdr 3ffe:501:811:ff01::3
    peer 3ffe:501:811:ff01::1

<本装置D>
local-address 3ffe:501:811:ff01::4
!
autonomoussystem 100
!
routerid 172.16.2.4
!
ripng yes
  interface all
    ripin
    ripout
!
bgp4+ yes
  routingpeeras 100
    lcladdr 3ffe:501:811:ff01::4
    peer 3ffe:501:811:ff01::2
