コンフィグレーションガイド
- <この項の構成>
- (1) 設定内容の概要
- (2) 構成図と設定条件
- (3) コンフィグレーション例
(1) 設定内容の概要
センタと複数の拠点を持つネットワークにおいて,センタ−拠点間の通信経路をOSPFv3プロトコルにより制御します。
(2) 構成図と設定条件
- [構成図]

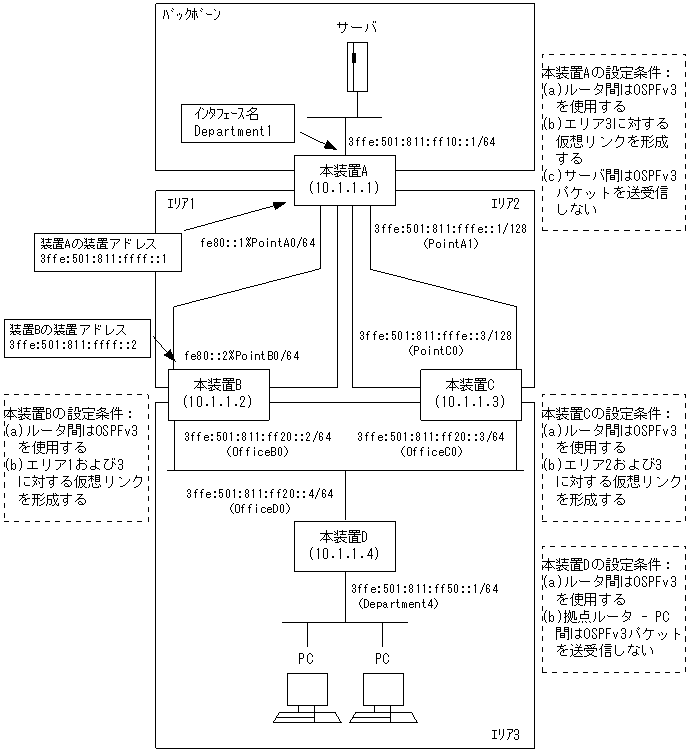

図12-8 構成図
- [設定条件]
- <本装置Aの環境>
- 本装置Aは三つのエリア(バックボーンエリア,エリア1,エリア2)に属します。
- 本装置A−本装置B/C間の経路制御はOSPFv3を使用します。
- エリア1およびエリア2上にエリア3に対する仮想リンクを形成します。
- 本装置A−サーバ間ではOSPFv3パケットを送受信しません。
- <本装置B/Cの環境>
- 本装置A−本装置B/C間の経路制御はOSPFv3を使用します。
- 本装置Bにエリア1およびエリア3に対する仮想リンクを形成します。
- 本装置Cにエリア2およびエリア3に対する仮想リンクを形成します。
- <本装置Dの環境>
- 本装置D−本装置B/C間の経路制御はOSPFv3を使用します。
- 本装置D−PC間ではOSPFv3パケットを送受信しません。
(3) コンフィグレーション例
- [コマンドによる設定]
- <本装置A>
1 (config)# routerid 10.1.1.1 2 (config)# ospf6 yes [ospf6] 3 (config)# backbone [ospf6 backbone] 4 (config)# interface Department1 [ospf6 backbone interface Department1] 5 (config)# passive [ospf6 backbone interface Department1] 6 (config)# exit [ospf6 backbone] 7 (config)# exit [ospf6] 8 (config)# area 1 [ospf6 area 1] 9 (config)# interface PointA0 [ospf6 area 1 interface PointA0] 10 (config)# exit [ospf6 area 1] 11 (config)# interface localhost [ospf6 area 1 interface localhost] 12 (config)# exit [ospf6 area 1] 13 (config)# exit [ospf6] 14 (config)# backbone [ospf6 backbone] 15 (config)# virtuallink neighborid 10.1.1.2 transitarea 1 [ospf6 backbone virtuallink neighborid 10.1.1.2 transitarea 1] 16 (config)# exit [ospf6 backbone] 17 (config)# exit [ospf6] 18 (config)# area 2 [ospf6 area 2] 19 (config)# interface PointA1 [ospf6 area 2 interface PointA1] 20 (config)# exit [ospf6 area 2] 21 (config)# exit [ospf6] 22 (config)# backbone [ospf6 backbone] 23 (config)# virtuallink neighborid 10.1.1.3 transitarea 2 [ospf6 backbone virtuallink neighborid 10.1.1.3 transitarea 2] 24 (config)# exit [ospf6 backbone] 25 (config)# exit [ospf6] 26 (config)# exit表12-24 本装置Aのコンフィグレーション解説
解説番号 解説 1 自装置のルータIDを定義します。 2〜7 OSPFv3プロトコルを動作させるとともに,バックボーンエリアおよびエリア内のインタフェースを定義します。passive指定は当該インタフェースでOSPFv3パケットを送受信しないことを意味します。 8〜13 エリア1およびエリア内のインタフェースを定義します。 14〜17 エリア3に対する通過エリア1の仮想リンクを定義します。 18〜21 エリア2およびエリア内のインタフェースを定義します。 22〜26 エリア3に対する通過エリア2の仮想リンクを定義します。
- <本装置B>
1 (config)# routerid 10.1.1.2 2 (config)# ospf6 yes [ospf6] 3 (config)# area 1 [ospf6 area 1] 4 (config)# interface PointB0 [ospf6 area 1 interface PointB0] 5 (config)# exit [ospf6 area 1] 6 (config)# interface localhost [ospf6 area 1 interface localhost] 7 (config)# exit [ospf6 area 1] 8 (config)# exit [ospf6] 9 (config)# backbone [ospf6 backbone] 10 (config)# virtuallink neighborid 10.1.1.1 transitarea 1 [ospf6 backbone virtuallink neighborid 10.1.1.1 transitarea 1] 11 (config)# exit [ospf6 backbone] 12 (config)# exit [ospf6] 13 (config)# area 3 [ospf6 area 3] 14 (config)# interface OfficeB0 [ospf6 area 3 interface OfficeB0] 15 (config)# priority 1 [ospf6 area 3 interface OfficeB0] 16 (config)# exit [ospf6 area 3] 17 (config)# exit [ospf6] 18 (config)# backbone [ospf6 backbone] 19 (config)# virtuallink neighborid 10.1.1.3 transitarea 3 [ospf6 backbone virtuallink neighborid 10.1.1.3 transitarea 3] 20 (config)# exit [ospf6 backbone] 21 (config)# exit [ospf6] 22 (config)# exit表12-25 本装置Bのコンフィグレーション解説
解説番号 解説 1 自装置のルータIDを定義します。 2〜8 OSPFv3プロトコルを動作させるとともに,エリア1およびエリア内のインタフェースPointB0, localhostを定義します。 9〜12 エリア3に対する通過エリア1の仮想リンクを定義します。 13〜17 エリア3およびエリア内のインタフェースOfficeB0を定義します。 18〜22 エリア1に対する通過エリア3の仮想リンクを定義します。
- <本装置C>
1 (config)# routerid 10.1.1.3 2 (config)# ospf6 yes [ospf6] 3 (config)# area 2 [ospf6 area 2] 4 (config)# interface PointC0 [ospf6 area 2 interface PointC0] 5 (config)# exit [ospf6 area 2] 6 (config)# exit [ospf6] 7 (config)# backbone [ospf6 backbone] 8 (config)# virtuallink neighborid 10.1.1.1 transitarea 2 [ospf6 backbone virtuallink neighborid 10.1.1.1 transitarea 2] 9 (config)# exit [ospf6 backbone] 10 (config)# exit [ospf6] 11 (config)# area 3 [ospf6 area 3] 12 (config)# interface OfficeC0 [ospf6 area 3 interface OfficeC0] 13 (config)# priority 1 [ospf6 area 3 interface OfficeC0] 14 (config)# exit [ospf6 area 3] 15 (config)# exit [ospf6] 16 (config)# backbone [ospf6 backbone] 17 (config)# virtuallink neighborid 10.1.1.2 transitarea 3 [ospf6 backbone virtuallink neighborid 10.1.1.2 transitarea 3] 18 (config)# exit [ospf6 backbone] 19 (config)# exit [ospf6] 20 (config)# exit表12-26 本装置Cのコンフィグレーション解説
解説番号 解説 1 自装置のルータIDを定義します。 2〜6 OSPFv3プロトコルを動作させるとともに,エリア2およびエリア内のインタフェースPointC0を定義します。 7〜10 エリア3に対する通過エリア2の仮想リンクを定義します。 11〜15 エリア3およびエリア内のインタフェースOfficeC0を定義します。 16〜20 エリア2に対する通過エリア3の仮想リンクを定義します。
- <本装置D>
1 (config)# routerid 10.1.1.4 2 (config)# ospf6 yes [ospf6] 3 (config)# area 3 [ospf6 area 3] 4 (config)# interface OfficeD0 [ospf6 area 3 interface OfficeD0] 5 (config)# priority 1 [ospf6 area 3 interface OfficeD0] 6 (config)# exit [ospf6 area 3] 7 (config)# interface Department4 [ospf6 area 3 interface Department4] 8 (config)# passive [ospf6 area 3 interface Department4] 9 (config)# exit [ospf6 area 3] 10 (config)# exit [ospf6] 11 (config)# exit表12-27 本装置Dのコンフィグレーション解説
解説番号 解説 1 自装置のルータIDを定義します。 2〜6 OSPFv3プロトコルを動作させるとともに,エリア3およびエリア内のインタフェースOfficeD0を定義します。 7〜11 エリア3内のインタフェースDepartment4を定義します。passive指定は当該インタフェースでOSPFv3パケットを送受信しないことを意味します。
- [コンフィグレーションの表示]
- <本装置A>
routerid 10.1.1.1 ! ospf6 yes backbone interface Department1 passive virtuallink neighborid 10.1.1.2 transitarea 1 virtuallink neighborid 10.1.1.3 transitarea 2 area 1 interface localhost interface PointA0 area 2 interface PointA1
- <本装置B>
routerid 10.1.1.2 ! ospf6 yes backbone virtuallink neighborid 10.1.1.1 transitarea 1 virtuallink neighborid 10.1.1.3 transitarea 3 area 1 interface localhost interface PointB0 area 3 interface OfficeB0 priority 1
- <本装置C>
routerid 10.1.1.3 ! ospf6 yes backbone virtuallink neighborid 10.1.1.1 transitarea 2 virtuallink neighborid 10.1.1.2 transitarea 3 area 2 interface PointC0 area 3 interface OfficeC0 priority 1
- <本装置D>
routerid 10.1.1.4 ! ospf6 yes area 3 interface Department4 passive interface OfficeD0 priority 1
