9.4.1 BGP4プロトコル(基本:インターナルピア)

<この項の構成>
(1) 設定内容の概要
(2) 構成図と設定条件
(3) コンフィグレーション例

(1) 設定内容の概要

AS番号200(AS200),AS番号300(AS300),AS番号400(AS400)およびAS番号500(AS500)の自律システムに接続されたAS番号100の自律システム(AS100)において,AS200およびAS300から広告された経路情報をAS内およびAS400,AS500に配布し,AS400およびAS500から広告された特定ネットワーク宛の経路情報をAS内およびAS200,AS300に配布します。また,AS内のネットワークをスタティック定義し,AS200,AS300,AS400およびAS500に広告します。

(2) 構成図と設定条件

[構成図]

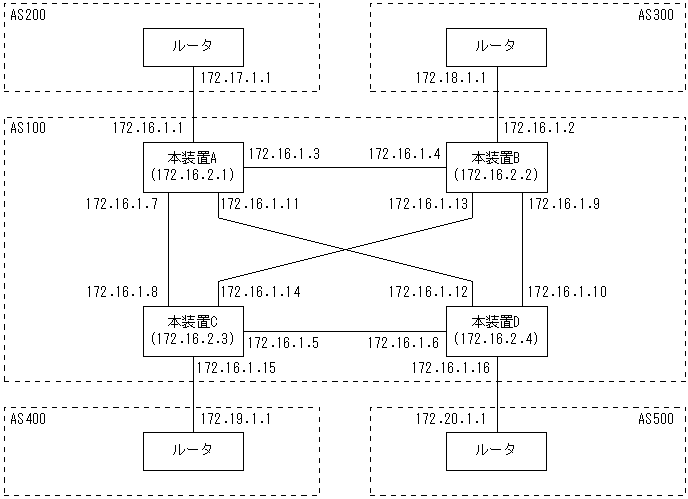

図9-16 構成図

[図データ]

[設定条件]

<本装置A/Bの環境>
  1. AS200およびAS300のBGP4スピーカと外部ピアによりピアリングします。
  2. AS内の他のBGP4スピーカと内部ピアによりピアリングします。
  3. AS200およびAS300から受信した経路および直結経路をAS内に広告します。その際,AS200およびAS300からの経路はAS200を優先します。
  4. AS400およびAS500からの経路をAS200およびAS300に広告します。また,AS内のネットワークをスタティック定義し,AS200およびAS300に広告します。

<本装置C/Dの環境>
  1. AS400およびAS500のBGP4スピーカと外部ピアによりピアリングします。
  2. AS内の他のBGP4スピーカと内部ピアによりピアリングします。
  3. AS400およびAS500から受信した特定ネットワーク宛の経路および直結経路をAS内に広告します。
  4. AS200およびAS300からの経路をAS400およびAS500に広告します。また,AS内のネットワークをスタティック定義し,AS400およびAS500に広告します。

(3) コンフィグレーション例

[コマンドによる設定]

<本装置A>
 1    (config)# autonomoussystem 100
 2    (config)# routerid 172.16.2.1
 3    (config)# bgp yes
      [bgp]
 4    (config)# externalpeeras 200
      [bgp externalpeeras 200]
 5    (config)# peer 172.17.1.1
      [bgp externalpeeras 200 peer 172.17.1.1]
 6    (config)# exit
      [bgp externalpeeras 200]
 7    (config)# exit
      [bgp]
 8    (config)# internalpeeras 100
      [bgp internalpeeras 100]
 9    (config)# peer 172.16.1.4
      [bgp internalpeeras 100 peer 172.16.1.4]
10    (config)# exit
      [bgp internalpeeras 100]
11    (config)# peer 172.16.1.8
      [bgp internalpeeras 100 peer 172.16.1.8]
12    (config)# exit
      [bgp internalpeeras 100]
13    (config)# peer 172.16.1.12
      [bgp internalpeeras 100 peer 172.16.1.12]
14    (config)# exit
      [bgp internalpeeras 100]
15    (config)# exit
      [bgp]
16    (config)# exit
17    (config)# attribute-list set-attribute 10
      [attribute-list set-attribute 10]
18    (config)# localpref 300
      [attribute-list set-attribute 10]
19    (config)# exit
20    (config)# import proto bgp as 200 set-attribute 10
      [import proto bgp as 200 set-attribute 10]
21    (config)# exit
22    (config)# export proto bgp as 100
      [export proto bgp as 100]
23    (config)# proto direct
      [export proto bgp as 100 proto direct]
24    (config)# exit
      [export proto bgp as 100]
25    (config)# proto bgp as 200
      [export proto bgp as 100 proto bgp as 200]
26    (config)# exit
      [export proto bgp as 100]
27    (config)# exit
28    (config)# static
      [static]
29    (config)# 172.16.0.0 masklen 16 interface null
      [static]
30    (config)# exit
31    (config)# export proto bgp as 200
      [export proto bgp as 200]
32    (config)# proto static
      [export proto bgp as 200 proto static]
33    (config)# exit
      [export proto bgp as 200]
34    (config)# proto bgp peer 172.16.1.8
      [export proto bgp as 200 proto bgp peer 172.16.1.8]
35    (config)# exit
      [export proto bgp as 200]
36    (config)# proto bgp peer 172.16.1.12
      [export proto bgp as 200 proto bgp peer 172.16.1.12]
37    (config)# exit
      [export proto bgp as 200]
38    (config)# exit

表9-56 本装置Aのコンフィグレーション解説

解説番号 解説
1 自装置の属するAS番号を定義します。
2 自装置のルータIDを定義します。
3〜7 BGP4プロトコルを動作させることを定義します。また,AS200に対する外部ピアを定義します。
8〜16 本装置B,C,Dへの内部ピアを定義します。
17〜21 AS200から受信した経路のLOCALPREF値を300にするよう定義します。
22〜27 AS200から受信した経路,直結経路をAS内の内部ピアに広告するよう定義します。
28〜30 AS内のネットワークをスタティック経路として定義します。
31〜38 生成したスタティック経路,AS400から受信した経路,AS500から受信した経路をAS200との外部ピアに広告するよう定義します。

<本装置B>
 1    (config)# autonomoussystem 100
 2    (config)# routerid 172.16.2.2
 3    (config)# bgp yes
      [bgp]
 4    (config)# externalpeeras 300
      [bgp externalpeeras 300]
 5    (config)# peer 172.18.1.1
      [bgp externalpeeras 300 peer 172.18.1.1]
 6    (config)# exit
      [bgp externalpeeras 300]
 7    (config)# exit
      [bgp]
 8    (config)# internalpeeras 100
      [bgp internalpeeras 100]
 9    (config)# peer 172.16.1.3
      [bgp internalpeeras 100 peer 172.16.1.3]
10    (config)# exit
      [bgp internalpeeras 100]
11    (config)# peer 172.16.1.14
      [bgp internalpeeras 100 peer 172.16.1.14]
12    (config)# exit
      [bgp internalpeeras 100]
13    (config)# peer 172.16.1.10
      [bgp internalpeeras 100 peer 172.16.1.10]
14    (config)# exit
      [bgp internalpeeras 100]
15    (config)# exit
      [bgp]
16    (config)# exit
17    (config)# attribute-list set-attribute 10
      [attribute-list set-attribute 10]
18    (config)# localpref 200
      [attribute-list set-attribute 10]
19    (config)# exit
20    (config)# import proto bgp as 300 set-attribute 10
      [import proto bgp as 300 set-attribute 10]
21    (config)# exit
22    (config)# export proto bgp as 100
      [export proto bgp as 100]
23    (config)# proto direct
      [export proto bgp as 100 proto direct]
24    (config)# exit
      [export proto bgp as 100]
25    (config)# proto bgp as 300
      [export proto bgp as 100 proto bgp as 300]
26    (config)# exit
      [export proto bgp as 100]
27    (config)# exit
28    (config)# static
      [static]
29    (config)# 172.16.0.0 masklen 16 interface null
      [static]
30    (config)# exit
31    (config)# export proto bgp as 300
      [export proto bgp as 300]
32    (config)# proto static
      [export proto bgp as 300 proto static]
33    (config)# exit
      [export proto bgp as 300]
34    (config)# proto bgp peer 172.16.1.10
      [export proto bgp as 300 proto bgp peer 172.16.1.10]
35    (config)# exit
      [export proto bgp as 300]
36    (config)# proto bgp peer 172.16.1.14
      [export proto bgp as 300 proto bgp peer 172.16.1.14]
37    (config)# exit
      [export proto bgp as 300]
38    (config)# exit

表9-57 本装置Bのコンフィグレーション解説

解説番号 解説
1 自装置の属するAS番号を定義します。
2 自装置のルータIDを定義します。
3〜7 BGP4プロトコルを動作させることを定義します。また,AS300に対する外部ピアを定義します。
8〜16 本装置A,C,Dへの内部ピアを定義します。
17〜21 AS300から受信した経路のLOCALPREF値を200にするよう定義します。
22〜27 AS300から受信した経路,直結経路をAS内の内部ピアに広告するよう定義します。
28〜30 AS内のネットワークをスタティック経路として定義します。
31〜38 生成したスタティック経路,AS400から受信した経路,AS500から受信した経路をAS300との外部ピアに広告するよう定義します。

<本装置C>
 1    (config)# autonomoussystem 100
 2    (config)# routerid 172.16.2.3
 3    (config)# bgp yes
      [bgp]
 4    (config)# externalpeeras 400
      [bgp externalpeeras 400]
 5    (config)# peer 172.19.1.1
      [bgp externalpeeras 400 peer 172.19.1.1]
 6    (config)# exit
      [bgp externalpeeras 400]
 7    (config)# exit
      [bgp]
 8    (config)# internalpeeras 100
      [bgp internalpeeras 100]
 9    (config)# peer 172.16.1.7
      [bgp internalpeeras 100 peer 172.16.1.7]
10    (config)# exit
      [bgp internalpeeras 100]
11    (config)# peer 172.16.1.13
      [bgp internalpeeras 100 peer 172.16.1.13]
12    (config)# exit
      [bgp internalpeeras 100]
13    (config)# peer 172.16.1.6
      [bgp internalpeeras 100 peer 172.16.1.6]
14    (config)# exit
      [bgp internalpeeras 100]
15    (config)# exit
      [bgp]
16    (config)# exit
17    (config)# attribute-list attribute-filter 10
      [attribute-list attribute-filter 10]
18    (config)# aspath-regexp "^400$"
      [attribute-list attribute-filter 10]
19    (config)# exit
20    (config)# attribute-list set-attribute 10
      [attribute-list set-attribute 10]
21    (config)# localpref 400
      [attribute-list set-attribute 10]
22    (config)# exit
23    (config)# import proto bgp as 400 attribute-filter 10
                set-attribute 10
      [import proto bgp as 400 attribute-filter 10 set-attribute 10]
24    (config)# 192.19.0.0 masklen 16
      [import proto bgp as 400 attribute-filter 10 set-attribute 10]
25    (config)# exit
26    (config)# import proto bgp as 400 restrict
27    (config)# export proto bgp as 100
      [export proto bgp as 100]
28    (config)# proto direct
      [export proto bgp as 100 proto direct]
29    (config)# exit
      [export proto bgp as 100]
30    (config)# proto bgp as 400
      [export proto bgp as 100 proto bgp as 400]
31    (config)# exit
      [export proto bgp as 100]
32    (config)# exit
33    (config)# static
      [static]
34    (config)# 172.16.0.0 masklen 16 interface null
      [static]
35    (config)# exit
36    (config)# export proto bgp as 400
      [export proto bgp as 400]
37    (config)# proto static
      [export proto bgp as 400 proto static]
38    (config)# exit
      [export proto bgp as 400]
39    (config)# proto bgp as 100
      [export proto bgp as 400 proto bgp as 100]
40    (config)# exit
      [export proto bgp as 400]
41    (config)# exit

表9-58 本装置Cのコンフィグレーション解説

解説番号 解説
1 自装置の属するAS番号を定義します。
2 自装置のルータIDを定義します。
3〜7 BGP4プロトコルを動作させることを定義します。また,AS400に対する外部ピアを定義します。
8〜16 本装置A,B,Dへの内部ピアを定義します。
17〜26 AS400から受信する経路をASPATH:400,ネットワーク:192.19.0.0/16に限定し,当該経路のLOCALPREF値を400にするよう定義します。
27〜32 AS400から受信した経路,直結経路をAS内の内部ピアに広告するよう定義します。
33〜35 AS内のネットワークをスタティック経路として定義します。
36〜41 生成したスタティック経路,AS200,AS300,AS500から受信した経路をAS400との外部ピアに広告するよう定義します。

<本装置D>
 1    (config)# autonomoussystem 100
 2    (config)# routerid 172.16.2.4
 3    (config)# bgp yes
      [bgp]
 4    (config)# externalpeeras 500
      [bgp externalpeeras 500]
 5    (config)# peer 172.20.1.1
      [bgp externalpeeras 500 peer 172.20.1.1]
 6    (config)# exit
      [bgp externalpeeras 500]
 7    (config)# exit
      [bgp]
 8    (config)# internalpeeras 100
      [bgp internalpeeras 100]
 9    (config)# peer 172.16.1.11
      [bgp internalpeeras 100 peer 172.16.1.11]
10    (config)# exit
      [bgp internalpeeras 100]
11    (config)# peer 172.16.1.9
      [bgp internalpeeras 100 peer 172.16.1.9]
12    (config)# exit
      [bgp internalpeeras 100]
13    (config)# peer 172.16.1.5
      [bgp internalpeeras 100 peer 172.16.1.5]
14    (config)# exit
      [bgp internalpeeras 100]
15    (config)# exit
      [bgp]
16    (config)# exit
17    (config)# attribute-list attribute-filter 10
      [attribute-list attribute-filter 10]
18    (config)# aspath-regexp "^500$"
      [attribute-list attribute-filter 10]
19    (config)# exit
20    (config)# attribute-list set-attribute 10
      [attribute-list set-attribute 10]
21    (config)# localpref 400
      [attribute-list set-attribute 10]
22    (config)# exit
23    (config)# import proto bgp as 500 attribute-filter 10
                set-attribute 10
      [import proto bgp as 500 attribute-filter 10 set-attribute 10]
24    (config)# 192.20.0.0 masklen 16
      [import proto bgp as 500 attribute-filter 10 set-attribute 10]
25    (config)# exit
26    (config)# import proto bgp as 500 restrict
27    (config)# export proto bgp as 100
      [export proto bgp as 100]
28    (config)# proto direct
      [export proto bgp as 100 proto direct]
29    (config)# exit
      [export proto bgp as 100]
30    (config)# proto bgp as 500
      [export proto bgp as 100 proto bgp as 500]
31    (config)# exit
      [export proto bgp as 100]
32    (config)# exit
33    (config)# static
      [static]
34    (config)# 172.16.0.0 masklen 16 interface null
      [static]
35    (config)# exit
36    (config)# export proto bgp as 500
      [export proto bgp as 500]
37    (config)# proto static
      [export proto bgp as 500 proto static]
38    (config)# exit
      [export proto bgp as 500]
39    (config)# proto bgp as 100
      [export proto bgp as 500 proto bgp as 100]
40    (config)# exit
      [export proto bgp as 500]
41    (config)# exit

表9-59 本装置Dのコンフィグレーション解説

解説番号 解説
1 自装置の属するAS番号を定義します。
2 自装置のルータIDを定義します。
3〜7 BGP4プロトコルを動作させることを定義します。また,AS500に対する外部ピアを定義します。
8〜16 本装置A,B,Cへの内部ピアを定義します。
17〜26 AS500から受信する経路をASPATH:500,ネットワーク:192.20.0.0/16に限定し,当該経路のLOCALPREF値を400にするよう定義します。
27〜32 AS500から受信した経路,直結経路をAS内の内部ピアに広告するよう定義します。
33〜35 AS内のネットワークをスタティック経路として定義します。
36〜41 生成したスタティック経路,AS200,AS300,AS400から受信した経路をAS500との外部ピアに広告するよう定義します。

[コンフィグレーションの表示]

<本装置A>
autonomoussystem 100
!
routerid 172.16.2.1
!
bgp yes
  internalpeeras 100
    peer 172.16.1.4
    peer 172.16.1.8
    peer 172.16.1.12
  externalpeeras 200
    peer 172.17.1.1
!
static
  172.16.0.0 masklen 16 interface null
!
attribute-list set-attribute 10
  localpref 300
!
import proto bgp as 200 set-attribute 10
!
export proto bgp as 100
  proto direct
  proto bgp as 200
!
export proto bgp as 200
  proto static
  proto bgp peer 172.16.1.8
  proto bgp peer 172.16.1.12

<本装置B>
autonomoussystem 100
!
routerid 172.16.2.2
!
bgp yes
  internalpeeras 100
    peer 172.16.1.3
    peer 172.16.1.10
    peer 172.16.1.14
  externalpeeras 300
    peer 172.18.1.1
!
static
  172.16.0.0 masklen 16 interface null
!
attribute-list set-attribute 10
  localpref 200
!
import proto bgp as 300 set-attribute 10
!
export proto bgp as 100
  proto direct
  proto bgp as 300
!
export proto bgp as 300
  proto static
  proto bgp peer 172.16.1.10
  proto bgp peer 172.16.1.14

<本装置C>
autonomoussystem 100
!
routerid 172.16.2.3
!
bgp yes
  internalpeeras 100
    peer 172.16.1.6
    peer 172.16.1.7
    peer 172.16.1.13
  externalpeeras 400
    peer 172.19.1.1
!
static
  172.16.0.0 masklen 16 interface null
!
attribute-list set-attribute 10
  localpref 400
!
attribute-list attribute-filter 10
  aspath-regexp "^400$"
!
import proto bgp as 400 attribute-filter 10 set-attribute 10
  192.19.0.0 masklen 16
!
import proto bgp as 400 restrict
!
export proto bgp as 100
  proto direct
  proto bgp as 400
!
export proto bgp as 400
  proto static
  proto bgp as 100

<本装置D>
autonomoussystem 100
!
routerid 172.16.2.4
!
bgp yes
  internalpeeras 100
    peer 172.16.1.5
    peer 172.16.1.9
    peer 172.16.1.11
  externalpeeras 500
    peer 172.20.1.1
!
static
  172.16.0.0 masklen 16 interface null
!
attribute-list set-attribute 10
  localpref 400
!
attribute-list attribute-filter 10
  aspath-regexp "^500$"
!
import proto bgp as 500 attribute-filter 10 set-attribute 10
  192.20.0.0 masklen 16
!
import proto bgp as 500 restrict
!
export proto bgp as 100
  proto direct
  proto bgp as 500
!
export proto bgp as 500
  proto static
  proto bgp as 100

[目次][前へ][次へ]


[他社商品名称に関する表示]

Copyright (c)2005, 2011, ALAXALA Networks Corporation. All rights reserved.
