コンフィグレーションガイド
- <この項の構成>
- (1) 設定内容の概要
- (2) 構成図と設定条件
- (3) コンフィグレーション例
(1) 設定内容の概要
本装置に流れるトラフィックをAS集約でモニタするNetFlowコンフィグレーションの例を示します。
(2) 構成図と設定条件
- [構成図]

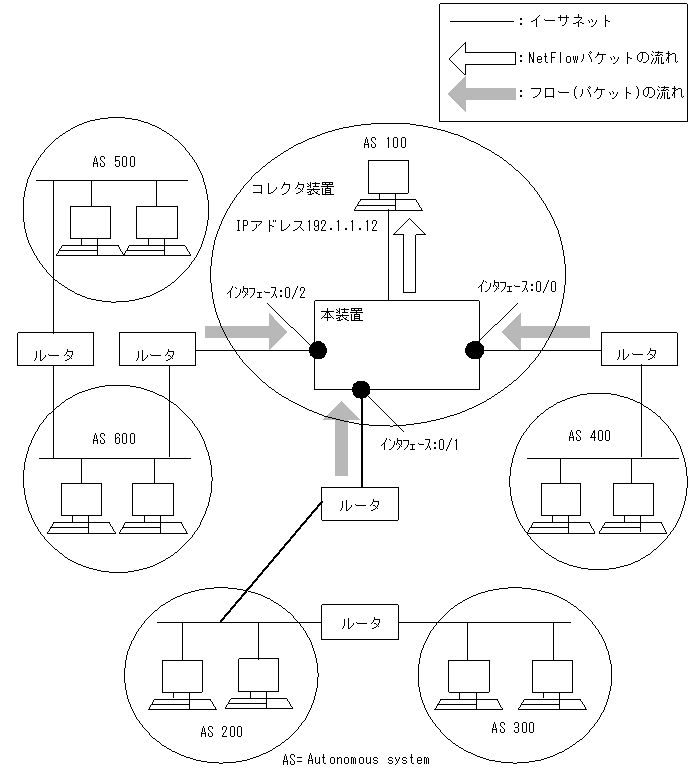

図18-7 構成図
- [設定条件]
- 本装置のポート0/0−0/2に流入するトラフィックをモニタして,その内容をフロー集約統計でコレクタ装置(192.1.1.12)へ送付する基本的な設定を行います。
- 隣接AS番号でフロー集約統計(as)とフロー集約統計(prefix-port)を利用する設定を行います。
(3) コンフィグレーション例
- [コマンドによる設定]
- <本装置>
1 (config)# netflow yes [netflow] 2 (config)# sample 2048 [netflow] 3 (config)# entries 0 3000 [netflow] 4 (config)# peer-as [netflow] 5 (config)# flow-aggregation-cache as [netflow flow-aggregation-cache as] 6 (config)# aggregation-entries 2000 [netflow flow-aggregation-cache as] 7 (config)# destination 192.1.1.12 [netflow flow-aggregation-cache as] 8 (config)# exit [netflow] 9 (config)# flow-aggregation-cache prefix-port [netflow flow-aggregation-cache prefix-port] 10 (config)# aggregation-entries 14000 [netflow flow-aggregation-cache prefix-port] 11 (config)# destination 192.1.1.12 [netflow flow-aggregation-cache prefix-port] 12 (config)# exit [netflow] 13 (config)# port 0/0-2 [netflow] 14 (config)# exit表18-7 本装置のコンフィグレーション解説
解説番号 解説 1 NetFlow統計を使用します。
netflowモードに移行します。2 2048パケット毎にトラフィックをモニタします。 3 フロー統計でPRU0のQoSエントリを3000確保します。 4 隣接AS番号を収集するように指定します。 5 フロー集約統計を使用します。
netflow flow-aggregation-cache asモードに移行します。6 as集約用にエントリを2000使用します。 7 as集約結果を送るコレクタ装置のIPアドレスを192.1.1.12に指定します。 8 netflow flow-aggregation-cache asモードからnetflowモードに戻ります。 9 フロー集約統計を使用します。
netflow flow-aggregation-cache prefix-portモードに移行します。10 prefix-port集約用にエントリを14000使用します。 11 prefix-port集約結果を送るコレクタ装置のIPアドレスを192.1.1.12に指定します。 12 netflow flow-aggregation-cache prefix-portモードからnetflowモードに戻ります。 13 ポート0/0,0/1,0/2に対してNetFlow統計によるトラフィックモニタを行います。 14 netflowモードからグローバルコンフィグモードに戻ります。
- [コンフィグレーションの表示]
- <本装置>
netflow yes sample 2048 peer-as entries 0 3000 flow-aggregation-cache as aggregation-entries 2000 destination 192.1.1.12 flow-aggregation-cache prefix-port aggregation-entries 14000 destination 192.1.1.12 port 0/0-2
