コンフィグレーションガイド
- <この項の構成>
- (1) 設定内容の概要
- (2) 構成図と設定条件
- (3) コンフィグレーション例
(1) 設定内容の概要
図14-1 構成図において,本装置A〜DによりMPLS網を構築します。
(2) 構成図と設定条件
- [構成図]

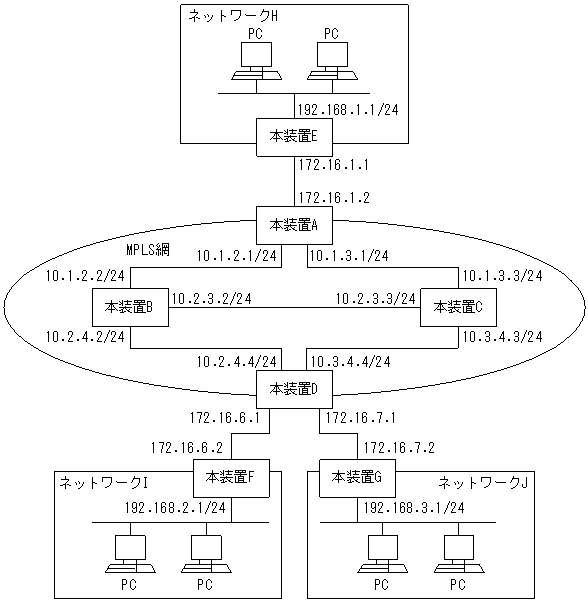

図14-1 構成図
- [設定条件]
- 本装置A〜本装置Gでは,ネットワークH〜Jを含めて,ルーティングプロトコルなどによって,相互に通信するための経路情報が交換の設定がされているものとします。
(3) コンフィグレーション例
- [コマンドによる設定]
- <本装置A>
1 (config)# mpls yes [mpls] 2 (config)# ldp 10.1.2.1 [mpls ldp 10.1.2.1] 3 (config)# exit [mpls] 4 (config)# ldp 10.1.3.1 [mpls ldp 10.1.3.1] 5 (config)# exit [mpls] 6 (config)# exit表14-1 本装置Aのコンフィグレーション解説
解説番号 解説 1〜6 本装置Bおよび本装置C向けの回線をMPLS使用可とします。
- <本装置B>
1 (config)# mpls yes [mpls] 2 (config)# ldp 10.1.2.2 [mpls ldp 10.1.2.2] 3 (config)# exit [mpls] 4 (config)# ldp 10.2.3.2 [mpls ldp 10.2.3.2] 5 (config)# exit [mpls] 6 (config)# ldp 10.2.4.2 [mpls ldp 10.2.4.2] 7 (config)# exit [mpls] 8 (config)# exit表14-2 本装置Bのコンフィグレーション解説
解説番号 解説 1〜8 本装置A,本装置Dおよび本装置C向けの回線をMPLS使用可とします。
- <本装置C>
1 (config)# mpls yes [mpls] 2 (config)# ldp 10.1.3.3 [mpls ldp 10.1.3.3] 3 (config)# exit [mpls] 4 (config)# ldp 10.2.3.3 [mpls ldp 10.2.3.3] 5 (config)# exit [mpls] 6 (config)# ldp 10.3.4.3 [mpls ldp 10.3.4.3] 7 (config)# exit [mpls] 8 (config)# exit表14-3 本装置Cのコンフィグレーション解説
解説番号 解説 1〜8 本装置A,本装置Dおよび本装置B向けの回線をMPLS使用可とします。
- <本装置D>
1 (config)# mpls yes [mpls] 2 (config)# ldp 10.2.4.4 [mpls ldp 10.2.4.4] 3 (config)# exit [mpls] 4 (config)# ldp 10.3.4.4 [mpls ldp 10.3.4.4] 5 (config)# exit [mpls] 6 (config)# exit表14-4 本装置Dのコンフィグレーション解説
解説番号 解説 1〜6 本装置Bおよび本装置C向けの回線をMPLS使用可とします。
- [コンフィグレーションの表示]
- <本装置A>
mpls yes ldp 10.1.2.1 ldp 10.1.3.1
- <本装置B>
mpls yes ldp 10.1.2.2 ldp 10.2.3.2 ldp 10.2.4.2
- <本装置C>
mpls yes ldp 10.1.3.3 ldp 10.2.3.3 ldp 10.3.4.3
- <本装置D>
mpls yes ldp 10.2.4.4 ldp 10.3.4.4
