コンフィグレーションガイド
- <この項の構成>
- (1) 設定内容の概要
- (2) 構成図と設定条件
- (3) コンフィグレーション例
(1) 設定内容の概要
センタと複数の拠点を持つネットワークにおいて,センタ−拠点間の通信経路をOSPFv3プロトコルにより制御します。
(2) 構成図と設定条件
- [構成図]

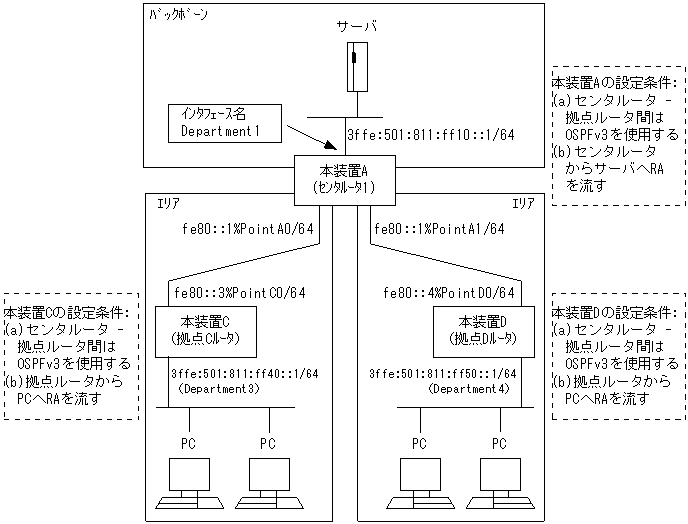

図12-7 構成図
- [設定条件]
- <本装置Aの環境>
- センタルータ(本装置A)は三つのエリア(バックボーンエリア,各拠点のエリア)に属します。
- センタルータ(本装置A)−拠点ルータ(本装置C/D)間の経路制御はOSPFv3を使用します。
- 本装置A−サーバ間には,RAを流します。
- <本装置C/Dの環境>
- センタルータ(本装置A)−拠点ルータ(本装置C/D)間の経路制御はOSPFv3を使用します。
- 本装置C/D−PC間には,RAを流します。
(3) コンフィグレーション例
- [コマンドによる設定]
- <本装置A>
1 (config)# routerid 10.1.1.1 2 (config)# ospf6 yes [ospf6] 3 (config)# backbone [ospf6 backbone] 4 (config)# interface Department1 [ospf6 backbone interface Department1] 5 (config)# passive [ospf6 backbone interface Department1] 6 (config)# exit [ospf6 backbone] 7 (config)# exit [ospf6] 8 (config)# area 1 [ospf6 area 1] 9 (config)# interface PointA0 [ospf6 area 1 interface PointA0] 10 (config)# hellointerval 5 [ospf6 area 1 interface PointA0] 11 (config)# routerdeadinterval 20 [ospf6 area 1 interface PointA0] 12 (config)# exit [ospf6 area 1] 13 (config)# stub cost 1 [ospf6 area 1] 14 (config)# networks 3ffe:501:811:ff40::/64 [ospf6 area 1] 15 (config)# exit [ospf6] 16 (config)# area 2 [ospf6 area 2] 17 (config)# interface PointA1 [ospf6 area 2 interface PointA1] 18 (config)# hellointerval 5 [ospf6 area 2 interface PointA1] 19 (config)# routerdeadinterval 20 [ospf6 area 2 interface PointA1] 20 (config)# exit [ospf6 area 2] 21 (config)# stub cost 1 [ospf6 area 2] 22 (config)# networks 3ffe:501:811:ff50::/64 [ospf6 area 2] 23 (config)# exit [ospf6] 24 (config)# exit 25 (config)# ra yes [ra] 26 (config)# interface Department1 [ra interface Department1] 27 (config)# exit [ra] 28 (config)# exit表12-21 本装置Aのコンフィグレーション解説
解説番号 解説 1 自装置のルータIDを定義します。 2〜7 OSPFv3プロトコルを動作させるとともに,バックボーンエリアおよびエリア内のインタフェースを定義します。passive指定は当該インタフェースでOSPFv3パケットを送受信しないことを意味します。 8〜12 エリア1およびエリア内のインタフェースを定義します。また,hellointervalを5秒,routerdeadintervalを20秒で動作させることを定義します。 13 エリア1がスタブエリアであることを定義します。また,コスト1でデフォルトルートを広告することを定義します。 14,15 エリア1からサマリー広告するネットワークを定義します。 16〜20 エリア2およびエリア内のインタフェースを定義します。また,hellointervalを5秒,routerdeadintervalを20秒で動作させることを定義します。 21 エリア2がスタブエリアであることを定義します。また,コスト1でデフォルトルートを広告することを定義します。 22〜24 エリア2からサマリー広告するネットワークを定義します。 25〜28 サーバが収容されているネットワークでRAパケットを送信します。
- <本装置C>
1 (config)# routerid 10.4.1.1 2 (config)# ospf6 yes [ospf6] 3 (config)# area 1 [ospf6 area 1] 4 (config)# interface PointC0 [ospf6 area 1 interface PointC0] 5 (config)# hellointerval 5 [ospf6 area 1 interface PointC0] 6 (config)# routerdeadinterval 20 [ospf6 area 1 interface PointC0] 7 (config)# exit [ospf6 area 1] 8 (config)# interface Department3 [ospf6 area 1 interface Department3] 9 (config)# passive [ospf6 area 1 interface Department3] 10 (config)# exit [ospf6 area 1] 11 (config)# stub [ospf6 area 1] 12 (config)# exit [ospf6] 13 (config)# exit 14 (config)# ra yes [ra] 15 (config)# interface Department3 [ra interface Department3] 16 (config)# exit [ra] 17 (config)# exit表12-22 本装置Cのコンフィグレーション解説
解説番号 解説 1 自装置のルータIDを定義します。 2〜7 OSPFv3プロトコルを動作させるとともに,エリア1およびエリア内のインタフェースPointC0を定義します。また,hellointervalを5秒,routerdeadintervalを20秒で動作させることを定義します。 8〜10 エリア1内のインタフェースDepartment3を定義します。passive指定は当該インタフェースでOSPFv3パケットを送受信しないことを意味します。 11〜13 エリア1がスタブエリアであることを定義します。 14〜17 PCが収容されているネットワークでRAパケットを送信します。
- <本装置D>
1 (config)# routerid 10.5.1.1 2 (config)# ospf6 yes [ospf6] 3 (config)# area 2 [ospf6 area 2] 4 (config)# interface PointD0 [ospf6 area 2 interface PointD0] 5 (config)# hellointerval 5 [ospf6 area 2 interface PointD0] 6 (config)# routerdeadinterval 20 [ospf6 area 2 interface PointD0] 7 (config)# exit [ospf6 area 2] 8 (config)# interface Department4 [ospf6 area 2 interface Department4] 9 (config)# passive [ospf6 area 2 interface Department4] 10 (config)# exit [ospf6 area 2] 11 (config)# stub [ospf6 area 2] 12 (config)# exit [ospf6] 13 (config)# exit 14 (config)# ra yes [ra] 15 (config)# interface Department4 [ra interface Department4] 16 (config)# exit [ra] 17 (config)# exit表12-23 本装置Dのコンフィグレーション解説
解説番号 解説 1 自装置のルータIDを定義します。 2〜7 OSPFv3プロトコルを動作させるとともに,エリア2およびエリア内のインタフェースPointD0を定義します。また,hellointervalを5秒,routerdeadintervalを20秒で動作させることを定義します。 8〜10 エリア2内のインタフェースDepartment4を定義します。passive指定は当該インタフェースでOSPFv3パケットを送受信しないことを意味します。 11〜13 エリア2がスタブエリアであることを定義します。 14〜17 PCが収容されているネットワークでRAパケットを送信します。
- [コンフィグレーションの表示]
- <本装置A>
ra yes interface Department1 ! routerid 10.1.1.1 ! ospf6 yes backbone interface Department1 passive area 1 stub cost 1 networks 3ffe:501:811:ff40::/64 interface PointA0 hellointerval 5 routerdeadinterval 20 area 2 stub cost 1 networks 3ffe:501:811:ff50::/64 interface PointA1 hellointerval 5 routerdeadinterval 20
- <本装置C>
ra yes interface Department3 ! routerid 10.4.1.1 ! ospf6 yes area 1 stub interface PointC0 hellointerval 5 routerdeadinterval 20 interface Department3 passive
- <本装置D>
ra yes interface Department4 ! routerid 10.5.1.1 ! ospf6 yes area 2 stub interface PointD0 hellointerval 5 routerdeadinterval 20 interface Department4 passive
