はじめに

対象製品およびソフトウェアバージョン

このマニュアルはAX3640SおよびAX3630Sを対象に記載しています。また,ソフトウェアVer. 11.10の機能について記載しています。ソフトウェア機能は,ソフトウェアOS-L3A,OS-L3L,およびオプションライセンスによってサポートする機能について記載します。

操作を行う前にこのマニュアルをよく読み,書かれている指示や注意を十分に理解してください。また,このマニュアルは必要なときにすぐ参照できるよう使いやすい場所に保管してください。

なお,このマニュアルでは特に断らないかぎり,AX3640SおよびAX3630Sに共通の機能および各ソフトウェアで共通の機能について記載します。AX3640SおよびAX3630Sで共通でない機能,OS-L3AおよびOS-L3Lで共通でない機能についてはそれぞれ以下のマークで示します。

【AX3640S】
AX3640Sについての記述です。

【AX3630S】
AX3630Sについての記述です。

【OS-L3A】
AX3640SおよびAX3630SのOS-L3Aについての記述です。

また,オプションライセンスでサポートする機能については以下のマークで示します。

【OP-DH6R】
オプションライセンスOP-DH6Rについての記述です。

【OP-OTP】
オプションライセンスOP-OTPについての記述です。

【OP-VAA】
オプションライセンスOP-VAAについての記述です。

このマニュアルの訂正について

このマニュアルに記載の内容は,ソフトウェアと共に提供する「リリースノート」および「マニュアル訂正資料」で訂正する場合があります。

対象読者

本装置を利用したネットワークシステムを構築し,運用するシステム管理者の方を対象としています。

また,次に示す知識を理解していることを前提としています。

このマニュアルのURL

このマニュアルの内容は下記URLに掲載しております。

http://www.alaxala.com

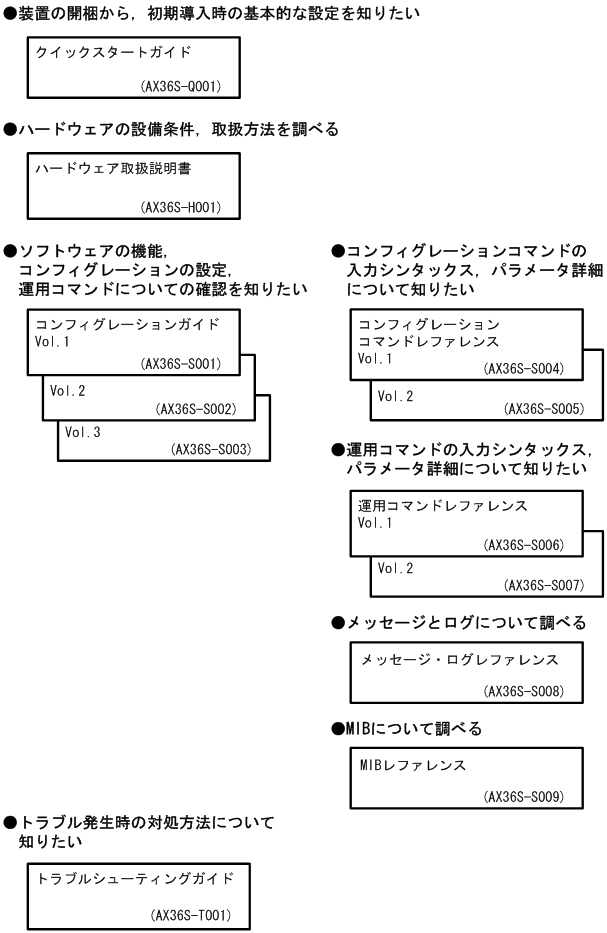

マニュアルの読書手順

本装置の導入,セットアップ,日常運用までの作業フローに従って,それぞれの場合に参照するマニュアルを次に示します。

[図データ]

このマニュアルでの表記


AC          Alternating Current
ACK         ACKnowledge
ADSL        Asymmetric Digital Subscriber Line
ALG         Application Level Gateway
ANSI        American National Standards Institute
ARP         Address Resolution Protocol
AS          Autonomous System
AUX         Auxiliary
BGP         Border Gateway Protocol
BGP4        Border Gateway Protocol - version 4
BGP4+       Multiprotocol Extensions for Border Gateway Protocol - version 4
bit/s       bits per second     *bpsと表記する場合もあります。
BPDU        Bridge Protocol Data Unit
BRI         Basic Rate Interface
CC          Continuity Check
CDP         Cisco Discovery Protocol
CFM         Connectivity Fault Management
CIDR        Classless Inter-Domain Routing
CIR         Committed Information Rate
CIST        Common and Internal Spanning Tree
CLNP        ConnectionLess Network Protocol
CLNS        ConnectionLess Network System
CONS        Connection Oriented Network System
CRC         Cyclic Redundancy Check
CSMA/CD     Carrier Sense Multiple Access with Collision Detection
CSNP        Complete Sequence Numbers PDU
CST         Common Spanning Tree
DA          Destination Address
DC          Direct Current
DCE         Data Circuit terminating Equipment
DHCP        Dynamic Host Configuration Protocol
DIS         Draft International Standard/Designated Intermediate System
DNS         Domain Name System
DR          Designated Router
DSAP        Destination Service Access Point
DSCP        Differentiated Services Code Point
DTE         Data Terminal Equipment
DVMRP       Distance Vector Multicast Routing Protocol
E-Mail      Electronic Mail
EAP         Extensible Authentication Protocol
EAPOL       EAP Over LAN
EFM         Ethernet in the First Mile
ES          End System
FAN         Fan Unit
FCS         Frame Check Sequence
FDB         Filtering DataBase
FQDN        Fully Qualified Domain Name
FTTH        Fiber To The Home
GBIC        GigaBit Interface Converter
GSRP        Gigabit Switch Redundancy Protocol
HMAC        Keyed-Hashing for Message Authentication
IANA        Internet Assigned Numbers Authority
ICMP        Internet Control Message Protocol
ICMPv6      Internet Control Message Protocol version 6
ID          Identifier
IEC         International Electrotechnical Commission
IEEE        Institute of Electrical and Electronics Engineers, Inc.
IETF        the Internet Engineering Task Force
IGMP        Internet Group Management Protocol
IP          Internet Protocol
IPCP        IP Control Protocol
IPv4        Internet Protocol version 4
IPv6        Internet Protocol version 6
IPV6CP      IP Version 6 Control Protocol
IPX         Internetwork Packet Exchange
ISO         International Organization for Standardization
ISP         Internet Service Provider
IST         Internal Spanning Tree
L2LD        Layer 2 Loop Detection
LAN         Local Area Network
LCP         Link Control Protocol
LED         Light Emitting Diode
LLC         Logical Link Control
LLDP        Link Layer Discovery Protocol
LLQ+3WFQ    Low Latency Queueing + 3 Weighted Fair Queueing
LSP         Label Switched Path
LSP         Link State PDU
LSR         Label Switched Router
MA          Maintenance Association
MAC         Media Access Control
MC          Memory Card
MD5         Message Digest 5
MDI         Medium Dependent Interface
MDI-X       Medium Dependent Interface crossover
MEP         Maintenance association End Point
MIB         Management Information Base
MIP         Maintenance domain Intermediate Point
MRU         Maximum Receive Unit
MSTI        Multiple Spanning Tree Instance
MSTP        Multiple Spanning Tree Protocol
MTU         Maximum Transfer Unit
NAK         Not AcKnowledge
NAS         Network Access Server
NAT         Network Address Translation
NCP         Network Control Protocol
NDP         Neighbor Discovery Protocol
NET         Network Entity Title
NLA ID      Next-Level Aggregation Identifier
NPDU        Network Protocol Data Unit
NSAP        Network Service Access Point
NSSA        Not So Stubby Area
NTP         Network Time Protocol
OADP        Octpower Auto Discovery Protocol
OAM         Operations,Administration,and Maintenance
OSPF        Open Shortest Path First
OUI         Organizationally Unique Identifier
packet/s    packets per second     *ppsと表記する場合もあります。
PAD         PADding
PAE         Port Access Entity
PC          Personal Computer
PCI         Protocol Control Information
PDU         Protocol Data Unit
PICS        Protocol Implementation Conformance Statement
PID         Protocol IDentifier
PIM         Protocol Independent Multicast
PIM-DM      Protocol Independent Multicast-Dense Mode
PIM-SM      Protocol Independent Multicast-Sparse Mode
PIM-SSM     Protocol Independent Multicast-Source Specific Multicast
PoE         Power over Ethernet
PRI         Primary Rate Interface
PS          Power Supply
PSNP        Partial Sequence Numbers PDU
QoS         Quality of Service
QSFP+       Quad Small Form factor Pluggable Plus
RA          Router Advertisement
RADIUS      Remote Authentication Dial In User Service
RDI         Remote Defect Indication
REJ         REJect
RFC         Request For Comments
RIP         Routing Information Protocol
RIPng       Routing Information Protocol next generation
RMON        Remote Network Monitoring MIB
RPF         Reverse Path Forwarding
RQ          ReQuest
RSTP        Rapid Spanning Tree Protocol
SA          Source Address
SD          Secure Digital
SDH         Synchronous Digital Hierarchy
SDU         Service Data Unit
SEL         NSAP SELector
SFD         Start Frame Delimiter
SFP         Small Form factor Pluggable
SFP+        Enhanced Small Form factor Pluggable
SMTP        Simple Mail Transfer Protocol
SNAP        Sub-Network Access Protocol
SNMP        Simple Network Management Protocol
SNP         Sequence Numbers PDU
SNPA        Subnetwork Point of Attachment
SPF         Shortest Path First
SSAP        Source Service Access Point
STP         Spanning Tree Protocol
TA          Terminal Adapter
TACACS+     Terminal Access Controller Access Control System Plus
TCP/IP      Transmission Control Protocol/Internet Protocol
TLA ID      Top-Level Aggregation Identifier
TLV         Type, Length, and Value
TOS         Type Of Service
TPID        Tag Protocol Identifier
TTL         Time To Live
UDLD        Uni-Directional Link Detection
UDP         User Datagram Protocol
UPC         Usage Parameter Control
UPC-RED     Usage Parameter Control - Random Early Detection
VAA         VLAN Access Agent
VLAN        Virtual LAN
VPN         Virtual Private Network
VRF         Virtual Routing and Forwarding/Virtual Routing and Forwarding
            Instance
VRRP        Virtual Router Redundancy Protocol
WAN         Wide Area Network
WDM         Wavelength Division Multiplexing
WFQ         Weighted Fair Queueing
WRED        Weighted Random Early Detection
WS          Work Station
WWW         World-Wide Web
XFP         10 gigabit small Form factor Pluggable


kB(バイト)などの単位表記について

1kB(キロバイト),1MB(メガバイト),1GB(ギガバイト),1TB(テラバイト)はそれぞれ1024バイト,1024バイト,1024バイト,1024バイトです。
