8.4.8 BGP4プロトコル(ルートフィルタ)

<この項の構成>
(1) 設定内容の概要
(2) 構成図と設定条件
(3) 構成定義情報例

(1) 設定内容の概要

AS番号200(AS200),AS番号300(AS300),AS番号400(AS400)およびAS番号500(AS500)の自律システムに接続されたAS番号100の自律システム(AS100)において,AS200およびAS300から広告された経路情報をAS内およびAS400,AS500に配布し,AS400およびAS500から広告された特定ネットワーク宛の経路情報をAS内およびAS200,AS300に配布します。また,AS内のネットワークをスタティック定義し,AS200,AS300,AS400およびAS500に広告します。

(2) 構成図と設定条件

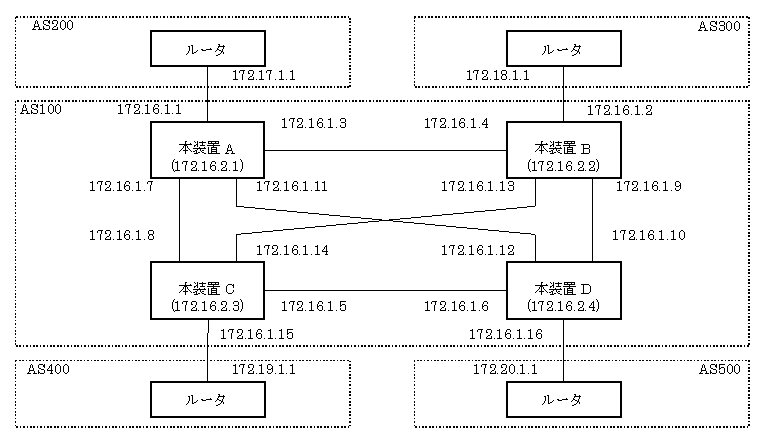

[構成図]

図8-22 構成図

[図データ]

[設定条件]

<本装置A/Bの環境>
  1. AS200およびAS300のBGP4スピーカと外部ピアによりピアリングします。
  2. AS内の他のBGP4スピーカと内部ピアによりピアリングします。
  3. OSPFにより直結経路を,BGP4によりAS200およびAS300から受信した経路をAS内に広告します。その際,AS200およびAS300からの経路はAS200を優先します。
  4. AS400およびAS500からの経路をAS200およびAS300に広告します。また,AS内のネットワークをスタティック定義し,AS200およびAS300に広告します。

<本装置C/Dの環境>
  1. AS400およびAS500のBGP4スピーカと外部ピアによりピアリングします。
  2. AS内の他のBGP4スピーカと内部ピアによりピアリングします。
  3. OSPFにより直結経路を,BGP4によりAS400およびAS500から受信した特定ネットワーク宛の経路をAS内に広告します。
  4. AS200およびAS300からの経路をAS400およびAS500に広告します。また,AS内のネットワークをスタティック定義し,AS400およびAS500に広告します。

(3) 構成定義情報例

[コマンドによる設定]

<本装置A>
 1    (config)# router local-address 172.16.2.1
 2    (config)# autonomoussystem 100
 3    (config)# routerid 172.16.2.1
 4    (config)# ospf yes
      [ospf]
 5    (config)# backbone
      [ospf backbone]
 6    (config)# interface 172.16.1.4
      [ospf backbone interface 172.16.1.4]
 7    (config)# exit
      [ospf backbone]
 8    (config)# interface 172.16.1.8
      [ospf backbone interface 172.16.1.8]
 9    (config)# exit
      [ospf backbone]
10    (config)# interface 172.16.1.12
      [ospf backbone interface 172.16.1.12]
11    (config)# exit
      [ospf backbone]
12    (config)# interface 172.16.2.1
      [ospf backbone interface 172.16.2.1]
13    (config)# passive
      [ospf backbone interface 172.16.2.1]
14    (config)# exit
      [ospf backbone]
15    (config)# exit
      [ospf]
16    (config)# exit
17    (config)# bgp yes
      [bgp]
18    (config)# externalpeeras 200
      [bgp externalpeeras 200]
19    (config)# peer 172.17.1.1
      [bgp externalpeeras 200 peer 172.17.1.1]
20    (config)# exit
      [bgp externalpeeras 200]
21    (config)# exit
      [bgp]
22    (config)# routingpeeras 100
      [bgp routingpeeras 100]
23    (config)# lcladdr 172.16.2.1
      [bgp routingpeeras 100]
24    (config)# peer 172.16.2.2
      [bgp routingpeeras 100 peer 172.16.2.2]
25    (config)# exit
      [bgp routingpeeras 100]
26    (config)# peer 172.16.2.3
      [bgp routingpeeras 100 peer 172.16.2.3]
27    (config)# exit
      [bgp routingpeeras 100]
28    (config)# peer 172.16.2.4
      [bgp routingpeeras 100 peer 172.16.2.4]
29    (config)# exit
      [bgp routingpeeras 100]
30    (config)# exit
      [bgp]
31    (config)# exit
32    (config)# attribute-list set-attribute AS200-IN-ATTR
      [attribute-list set-attribute AS200-IN-ATTR]
33    (config)# localpref 300
      [attribute-list set-attribute AS200-IN-ATTR]
34    (config)# exit
35    (config)# route-filter name AS200-IN
      [route-filter name AS200-IN]
36    (config)# seq 100 set set-attribute AS200-IN-ATTR
      [route-filter name AS200-IN]
37    (config)# exit
38    (config)# import proto bgp as 200 route-filter AS200-IN
39    (config)# route-filter name AS100-OUT
      [route-filter name AS100-OUT]
40    (config)# seq 100 match proto bgp as 200
      [route-filter name AS100-OUT]
41    (config)# exit
42    (config)# export proto bgp as 100 route-filter AS100-OUT
43    (config)# static
      [static]
44    (config)# 172.16/16 interface null
      [static]
45    (config)# exit
46    (config)# route-filter name AS200-OUT
      [route-filter name AS200-OUT]
47    (config)# seq 100 match proto static
      [route-filter name AS200-OUT]
48    (config)# exit
49    (config)# network-filter name AS200-OUT-NET
      [network-filter name AS200-OUT-NET]
50    (config)# 172.16/16 exact
      [network-filter name AS200-OUT-NET]
51    (config)# exit
52    (config)# route-filter name AS200-OUT
      [route-filter name AS200-OUT]
53    (config)# seq 100 match network-filter AS200-OUT-NET
      [route-filter name AS200-OUT]
54    (config)# seq 200 match proto bgp
      [route-filter name AS200-OUT]
55    (config)# exit
56    (config)# attribute-list attribute-filter AS200-OUT-ATTR
      [attribute-list attribute-filter AS200-OUT-ATTR]
57    (config)# aspath "400 .*"
      [attribute-list attribute-filter AS200-OUT-ATTR]
58    (config)# aspath "500 .*"
      [attribute-list attribute-filter AS200-OUT-ATTR]
59    (config)# exit
60    (config)# route-filter name AS200-OUT
      [route-filter name AS200-OUT]
61    (config)# seq 200 match attribute-filter AS200-OUT-ATTR
      [route-filter name AS200-OUT]
62    (config)# exit
63    (config)# export proto bgp as 200 route-filter AS200-OUT

表8-75 本装置Aの構成定義情報解説

解説番号 解説
1〜3 自装置アドレス,自装置の属するAS番号,およびルータIDを定義します。
4〜11 自AS内向けの各インタフェースでOSPFを定義します。
12〜16 自装置アドレスをOSPFインタフェースとして広告することを定義します。
17〜21 BGP4プロトコルを動作させることを定義します。また,AS200に対する外部ピアを定義します。
22〜31 装置アドレスを使用し,本装置B,C,Dへの内部ピアを定義します。
32〜38 AS200から受信した経路のLOCALPREF値を300にするよう定義します。
39〜42 AS200から受信した経路をAS内の内部ピアに広告するよう定義します。
43〜45 AS内のネットワークをスタティック経路として定義します。
46〜63 生成したスタティック経路,AS400から受信した経路,AS500から受信した経路をAS200との外部ピアに広告するよう定義します。

<本装置B>
 1    (config)# router local-address 172.16.2.2
 2    (config)# autonomoussystem 100
 3    (config)# routerid 172.16.2.2
 4    (config)# ospf yes
      [ospf]
 5    (config)# backbone
      [ospf backbone]
 6    (config)# interface 172.16.1.3
      [ospf backbone interface 172.16.1.3]
 7    (config)# exit
      [ospf backbone]
 8    (config)# interface 172.16.1.10
      [ospf backbone interface 172.16.1.10]
 9    (config)# exit
      [ospf backbone]
10    (config)# interface 172.16.1.14
      [ospf backbone interface 172.16.1.14]
11    (config)# exit
      [ospf backbone]
12    (config)# interface 172.16.2.2
      [ospf backbone interface 172.16.2.2]
13    (config)# passive
      [ospf backbone interface 172.16.2.2]
14    (config)# exit
      [ospf backbone]
15    (config)# exit
      [ospf]
16    (config)# exit
17    (config)# bgp yes
      [bgp]
18    (config)# externalpeeras 300
      [bgp externalpeeras 300]
19    (config)# peer 172.18.1.1
      [bgp externalpeeras 300 peer 172.18.1.1]
20    (config)# exit
      [bgp externalpeeras 300]
21    (config)# exit
      [bgp]
22    (config)# routingpeeras 100
      [bgp routingpeeras 100]
23    (config)# lcladdr 172.16.2.2
      [bgp routingpeeras 100]
24    (config)# peer 172.16.2.1
      [bgp routingpeeras 100 peer 172.16.2.1]
25    (config)# exit
      [bgp routingpeeras 100]
26    (config)# peer 172.16.2.3
      [bgp routingpeeras 100 peer 172.16.2.3]
27    (config)# exit
      [bgp routingpeeras 100]
28    (config)# peer 172.16.2.4
      [bgp routingpeeras 100 peer 172.16.2.4]
29    (config)# exit
      [bgp routingpeeras 100]
30    (config)# exit
      [bgp]
31    (config)# exit
32    (config)# attribute-list set-attribute AS300-IN-ATTR
      [attribute-list set-attribute AS300-IN-ATTR]
33    (config)# localpref 200
      [attribute-list set-attribute AS300-IN-ATTR]
34    (config)# exit
35    (config)# route-filter name AS300-IN
      [route-filter name AS300-IN]
36    (config)# seq 100 set set-attribute AS300-IN-ATTR
      [route-filter name AS300-IN]
37    (config)# exit
38    (config)# import proto bgp as 300 route-filter AS300-IN
39    (config)# route-filter name AS100-OUT
      [route-filter name AS100-OUT]
40    (config)# seq 100 match proto bgp as 300
      [route-filter name AS100-OUT]
41    (config)# exit
42    (config)# export proto bgp as 100 route-filter AS100-OUT
43    (config)# static
      [static]
44    (config)# 172.16/16 interface null
      [static]
45    (config)# exit
46    (config)# route-filter name AS300-OUT
      [route-filter name AS300-OUT]
47    (config)# seq 100 match proto static
      [route-filter name AS300-OUT]
48    (config)# exit
49    (config)# network-filter name AS300-OUT-NET
      [network-filter name AS300-OUT-NET]
50    (config)# 172.16/16 exact
      [network-filter name AS300-OUT-NET]
51    (config)# exit
52    (config)# route-filter name AS300-OUT
      [route-filter name AS300-OUT]
53    (config)# seq 100 match network-filter AS300-OUT-NET
      [route-filter name AS300-OUT]
54    (config)# seq 200 match proto bgp
      [route-filter name AS300-OUT]
55    (config)# exit
56    (config)# attribute-list attribute-filter AS300-OUT-ATTR
      [attribute-list attribute-filter AS300-OUT-ATTR]
57    (config)# aspath "400 .*"
      [attribute-list attribute-filter AS300-OUT-ATTR]
58    (config)# aspath "500 .*"
      [attribute-list attribute-filter AS300-OUT-ATTR]
59    (config)# exit
60    (config)# route-filter name AS300-OUT
      [route-filter name AS300-OUT]
61    (config)# seq 200 match attribute-filter AS300-OUT-ATTR
      [route-filter name AS300-OUT]
62    (config)# exit
63    (config)# export proto bgp as 300 route-filter AS300-OUT

表8-76 本装置Bの構成定義情報解説

解説番号 解説
1〜16 <本装置A>の解説番号1〜16に同じ
17〜21 BGP4プロトコルを動作させることを定義します。また,AS300に対する外部ピアを定義します。
22〜31 装置アドレスを使用し,本装置A,C,Dへの内部ピアを定義します。
32〜38 AS300から受信した経路のLOCALPREF値を200にするよう定義します。
39〜42 AS300から受信した経路をAS内の内部ピアに広告するよう定義します。
43〜45 AS内のネットワークをスタティック経路として定義します。
46〜63 生成したスタティック経路,AS400から受信した経路,AS500から受信した経路をAS300との外部ピアに広告するよう定義します。

<本装置C>
 1    (config)# router local-address 172.16.2.3
 2    (config)# autonomoussystem 100
 3    (config)# routerid 172.16.2.3
 4    (config)# ospf yes
      [ospf]
 5    (config)# backbone
      [ospf backbone]
 6    (config)# interface 172.16.1.6
      [ospf backbone interface 172.16.1.6]
 7    (config)# exit
      [ospf backbone]
 8    (config)# interface 172.16.1.7
      [ospf backbone interface 172.16.1.7]
 9    (config)# exit
      [ospf backbone]
10    (config)# interface 172.16.1.13
      [ospf backbone interface 172.16.1.13]
11    (config)# exit
      [ospf backbone]
12    (config)# interface 172.16.2.3
      [ospf backbone interface 172.16.2.3]
13    (config)# passive
      [ospf backbone interface 172.16.2.3]
14    (config)# exit
      [ospf backbone]
15    (config)# exit
      [ospf]
16    (config)# exit
17    (config)# bgp yes
      [bgp]
18    (config)# externalpeeras 400
      [bgp externalpeeras 400]
19    (config)# peer 172.19.1.1
      [bgp externalpeeras 400 peer 172.19.1.1]
20    (config)# exit
      [bgp externalpeeras 400]
21    (config)# exit
      [bgp]
22    (config)# routingpeeras 100
      [bgp routingpeeras 100]
23    (config)# lcladdr 172.16.2.3
      [bgp routingpeeras 100]
24    (config)# peer 172.16.2.1
      [bgp routingpeeras 100 peer 172.16.2.1]
25    (config)# exit
      [bgp routingpeeras 100]
26    (config)# peer 172.16.2.2
      [bgp routingpeeras 100 peer 172.16.2.2]
27    (config)# exit
      [bgp routingpeeras 100]
28    (config)# peer 172.16.2.4
      [bgp routingpeeras 100 peer 172.16.2.4]
29    (config)# exit
      [bgp routingpeeras 100]
30    (config)# exit
      [bgp]
31    (config)# exit
32    (config)# route-filter name AS400-IN
      [route-filter name AS400-IN]
33    (config)# seq 100 match aspath "400"
      [route-filter name AS400-IN]
34    (config)# seq 100 match network 172.19/16
      [route-filter name AS400-IN]
35    (config)# seq 100 set localpref 400
      [route-filter name AS400-IN]
36    (config)# seq 200 drop
      [route-filter name AS400-IN]
37    (config)# exit
38    (config)# import proto bgp as 400 route-filter AS400-IN
39    (config)# route-filter name AS100-OUT
      [route-filter name AS100-OUT]
40    (config)# seq 100 match proto bgp as 400
      [route-filter name AS100-OUT]
41    (config)# exit
42    (config)# export proto bgp as 100 route-filter AS100-OUT
43    (config)# static
      [static]
44    (config)# 172.16/16 interface null
      [static]
45    (config)# exit
46    (config)# route-filter name AS400-OUT
      [route-filter name AS400-OUT]
47    (config)# seq 100 match proto static
      [route-filter name AS400-OUT]
48    (config)# seq 100 match network 172.16/16 exact
      [route-filter name AS400-OUT]
49    (config)# seq 200 match proto bgp as 100
      [route-filter name AS400-OUT]
50    (config)# exit
51    (config)# export proto bgp as 400 route-filter AS400-OUT

表8-77 本装置Cの構成定義情報解説

解説番号 解説
1〜16 <本装置A>の解説番号1〜16に同じ
17〜21 BGP4プロトコルを動作させることを定義します。また,AS400に対する外部ピアを定義します。
22〜31 装置アドレスを使用し,本装置A,B,Dへの内部ピアを定義します。
32〜38 AS400から受信する経路をASPATH:400,ネットワーク:172.19.0.0/16に限定し,当該経路のLOCALPREF値を400にするよう定義します。
39〜42 AS400から受信した経路をAS内の内部ピアに広告するよう定義します。
43〜45 AS内のネットワークをスタティック経路として定義します。
46〜51 生成したスタティック経路,AS100,AS200,AS500から受信した経路をAS400との外部ピアに広告するよう定義します。

<本装置D>
 1    (config)# router local-address 172.16.2.4
 2    (config)# autonomoussystem 100
 3    (config)# routerid 172.16.2.4
 4    (config)# ospf yes
      [ospf]
 5    (config)# backbone
      [ospf backbone]
 6    (config)# interface 172.16.1.5
      [ospf backbone interface 172.16.1.5]
 7    (config)# exit
      [ospf backbone]
 8    (config)# interface 172.16.1.9
      [ospf backbone interface 172.16.1.9]
 9    (config)# exit
      [ospf backbone]
10    (config)# interface 172.16.1.11
      [ospf backbone interface 172.16.1.11]
11    (config)# exit
      [ospf backbone]
12    (config)# interface 172.16.2.4
      [ospf backbone interface 172.16.2.4]
13    (config)# passive
      [ospf backbone interface 172.16.2.4]
14    (config)# exit
      [ospf backbone]
15    (config)# exit
      [ospf]
16    (config)# exit
17    (config)# bgp yes
      [bgp]
18    (config)# externalpeeras 500
      [bgp externalpeeras 500]
19    (config)# peer 172.20.1.1
      [bgp externalpeeras 500 peer 172.20.1.1]
20    (config)# exit
      [bgp externalpeeras 500]
21    (config)# exit
      [bgp]
22    (config)# routingpeeras 100
      [bgp routingpeeras 100]
23    (config)# lcladdr 172.16.2.4
      [bgp routingpeeras 100]
24    (config)# peer 172.16.2.1
      [bgp routingpeeras 100 peer 172.16.2.1]
25    (config)# exit
      [bgp routingpeeras 100]
26    (config)# peer 172.16.2.2
      [bgp routingpeeras 100 peer 172.16.2.2]
27    (config)# exit
      [bgp routingpeeras 100]
28    (config)# peer 172.16.2.3
      [bgp routingpeeras 100 peer 172.16.2.3]
29    (config)# exit
      [bgp routingpeeras 100]
30    (config)# exit
      [bgp]
31    (config)# exit
32    (config)# route-filter name AS500-IN
      [route-filter name AS500-IN]
33    (config)# seq 100 match aspath "500"
      [route-filter name AS500-IN]
34    (config)# seq 100 match network 172.20/16
      [route-filter name AS500-IN]
35    (config)# seq 100 set localpref 400
      [route-filter name AS500-IN]
36    (config)# seq 200 drop
      [route-filter name AS500-IN]
37    (config)# exit
38    (config)# import proto bgp as 500 route-filter AS500-IN
39    (config)# route-filter name AS100-OUT
      [route-filter name AS100-OUT]
40    (config)# seq 100 match proto bgp as 500
      [route-filter name AS100-OUT]
41    (config)# exit
42    (config)# export proto bgp as 100 route-filter AS100-OUT
43    (config)# static
      [static]
44    (config)# 172.16/16 interface null
      [static]
45    (config)# exit
46    (config)# route-filter name AS500-OUT
      [route-filter name AS500-OUT]
47    (config)# seq 100 match proto static
      [route-filter name AS500-OUT]
48    (config)# seq 100 match network 172.16/16 exact
      [route-filter name AS500-OUT]
49    (config)# seq 200 match proto bgp as 100
      [route-filter name AS500-OUT]
50    (config)# exit
51    (config)# export proto bgp as 500 route-filter AS500-OUT

表8-78 本装置Dの構成定義情報解説

解説番号 解説
1〜16 <本装置A>の解説番号1〜16に同じ
17〜21 BGP4プロトコルを動作させることを定義します。また,AS500に対する外部ピアを定義します。
22〜31 装置アドレスを使用し,本装置A,B,Cへの内部ピアを定義します。
32〜38 AS500から受信する経路をASPATH:500,ネットワーク:172.20.0.0/16に限定し,当該経路のLOCALPREF値を400にするよう定義します。
39〜42 AS500から受信した経路をAS内の内部ピアに広告するよう定義します。
43〜45 AS内のネットワークをスタティック経路として定義します。
46〜51 生成したスタティック経路,AS200,AS300,AS400から受信した経路をAS500との外部ピアに広告するよう定義します。

[構成定義情報の表示]

<本装置A>
router local-address 172.16.2.1
!
autonomoussystem 100
!
routerid 172.16.2.1
!
ospf yes
  backbone
    interface 172.16.1.4
    interface 172.16.1.8
    interface 172.16.1.12
    interface 172.16.2.1
      passive
!
bgp yes
  routingpeeras 100
    lcladdr 172.16.2.1
    peer 172.16.2.2
    peer 172.16.2.3
    peer 172.16.2.4
  externalpeeras 200
    peer 172.17.1.1
!
static
  172.16/16 interface null
!
attribute-list set-attribute AS200-IN-ATTR
  localpref 300
!
attribute-list attribute-filter AS200-OUT-ATTR
  aspath "400 .*"
  aspath "500 .*"
!
network-filter name AS200-OUT-NET
  172.16/16 exact
!
route-filter name AS100-OUT
  seq 100 match proto bgp as 200
!
route-filter name AS200-IN
  seq 100 set set-attribute AS200-IN-ATTR
!
route-filter name AS200-OUT
  seq 100 match proto static
  seq 100 match network-filter AS200-OUT-NET
  seq 200 match proto bgp
  seq 200 match attribute-filter AS200-OUT-ATTR
!
import proto bgp as 200 route-filter AS200-IN
!
export proto bgp as 100 route-filter AS100-OUT
!
export proto bgp as 200 route-filter AS200-OUT

<本装置B>
router local-address 172.16.2.2
!
autonomoussystem 100
!
routerid 172.16.2.2
!
ospf yes
  backbone
    interface 172.16.1.3
    interface 172.16.1.10
    interface 172.16.1.14
    interface 172.16.2.2
      passive
!
bgp yes
  routingpeeras 100
    lcladdr 172.16.2.2
    peer 172.16.2.1
    peer 172.16.2.3
    peer 172.16.2.4
  externalpeeras 300
    peer 172.18.1.1
!
static
  172.16/16 interface null
!
attribute-list set-attribute AS300-IN-ATTR
  localpref 200
!
attribute-list attribute-filter AS300-OUT-ATTR
  aspath "400 .*"
  aspath "500 .*"
!
network-filter name AS300-OUT-NET
  172.16/16 exact
!
route-filter name AS100-OUT
  seq 100 match proto bgp as 300
!
route-filter name AS300-IN
  seq 100 set set-attribute AS300-IN-ATTR
!
route-filter name AS300-OUT
  seq 100 match proto static
  seq 100 match network-filter AS300-OUT-NET
  seq 200 match proto bgp
  seq 200 match attribute-filter AS300-OUT-ATTR
!
import proto bgp as 300 route-filter AS300-IN
!
export proto bgp as 100 route-filter AS100-OUT
!
export proto bgp as 300 route-filter AS300-OUT

<本装置C>
router local-address 172.16.2.3
!
autonomoussystem 100
!
routerid 172.16.2.3
!
ospf yes
  backbone
    interface 172.16.1.6
    interface 172.16.1.7
    interface 172.16.1.13
    interface 172.16.2.3
      passive
!
bgp yes
  routingpeeras 100
    lcladdr 172.16.2.3
    peer 172.16.2.1
    peer 172.16.2.2
    peer 172.16.2.4
  externalpeeras 400
    peer 172.19.1.1
!
static
  172.16/16 interface null
!
route-filter name AS100-OUT
  seq 100 match proto bgp as 400
!
route-filter name AS400-IN
  seq 100 match network 172.19/16
  seq 100 match aspath "400"
  seq 100 set localpref 400
  seq 200 drop
!
route-filter name AS400-OUT
  seq 100 match proto static
  seq 100 match network 172.16/16 exact
  seq 200 match proto bgp as 100
!
import proto bgp as 400 route-filter AS400-IN
!
export proto bgp as 100 route-filter AS100-OUT
!
export proto bgp as 400 route-filter AS400-OUT

<本装置D>
router local-address 172.16.2.4
!
autonomoussystem 100
!
routerid 172.16.2.4
!
ospf yes
  backbone
    interface 172.16.1.5
    interface 172.16.1.9
    interface 172.16.1.11
    interface 172.16.2.4
      passive
!
bgp yes
  routingpeeras 100
    lcladdr 172.16.2.4
    peer 172.16.2.1
    peer 172.16.2.2
    peer 172.16.2.3
  externalpeeras 500
    peer 172.20.1.1
!
static
  172.16/16 interface null
!
route-filter name AS100-OUT
  seq 100 match proto bgp as 500
!
route-filter name AS500-IN
  seq 100 match network 172.20/16
  seq 100 match aspath "500"
  seq 100 set localpref 400
  seq 200 drop
!
route-filter name AS500-OUT
  seq 100 match proto static
  seq 100 match network 172.16/16 exact
  seq 200 match proto bgp as 100
!
import proto bgp as 500 route-filter AS500-IN
!
export proto bgp as 100 route-filter AS100-OUT
!
export proto bgp as 500 route-filter AS500-OUT

[目次][前へ][次へ]


[他社商品名称に関する表示]

Copyright (c)2005 ALAXALA Networks Corporation. All rights reserved.
