31.5.3 Example of Adaptive Network Configuration
- <Structure of this section>
(1) Configuration using IPv6 PIM-SM
This configuration is appropriate in the following cases:
-
The number of users sending multicast packets is not limited.
-
The number of users sending multicast packets is large.
- Network environment
-
-
The IPv6 unicast routing protocol must run on all routers.
-
IPv6 PIM-SM is used as the IPv6 multicast routing protocol between the Switches.
-
Use MLDv1 or MLDv2 to control group administration between groups and the Switch.
-
One switch is used as the rendezvous point and BSR.
-
- Configuration diagram
-
The following diagram shows a configuration.

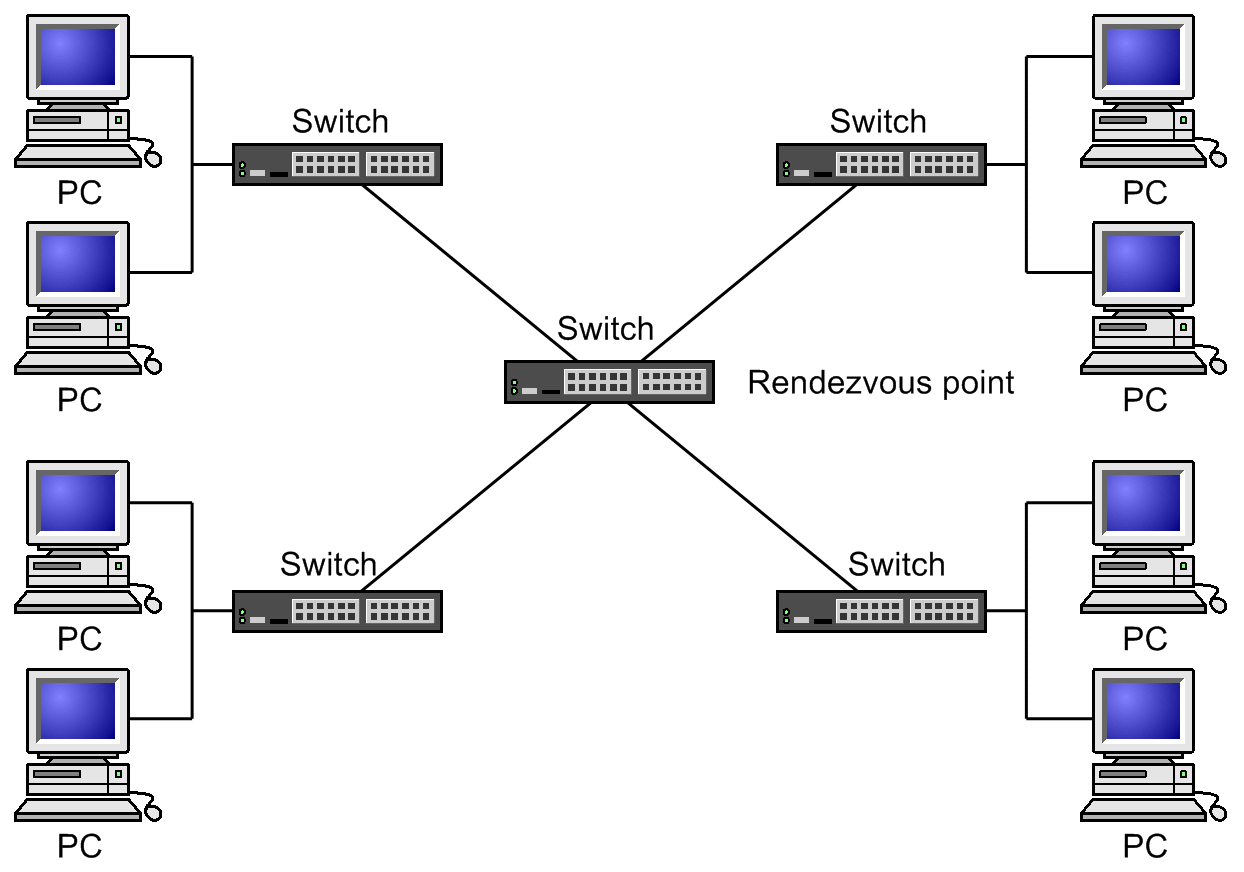

Figure 31-25: Configuration Diagram Using IPv6 PIM-SM
(2) Configuration using IPv6 PIM-SSM
This configuration is appropriate in the following cases:
-
The number of users sending multicast packets is limited (such as for distribution servers).
-
Users receiving multicast can specify the address of the MLDv2-compatible sending server.
-
Broadband multicast communication is used.
-
Multi-channel multicast communication is used.
- Network environment
-
-
The IPv6 unicast routing protocol must run on all routers.
-
IPv6 PIM-SSM is used as the IPv6 multicast routing protocol between the Switches. IPv6 PIM-SSM is extended PIM-SM functionality.
-
MLDv1 or MLDv2 is used for group administration control between the Switch and a group. (When using MLDv1 or MLDv2(EXCLUDE mode.) SSM must be configured to work together.)
-
- Configuration diagram
-
The following diagram shows a configuration.

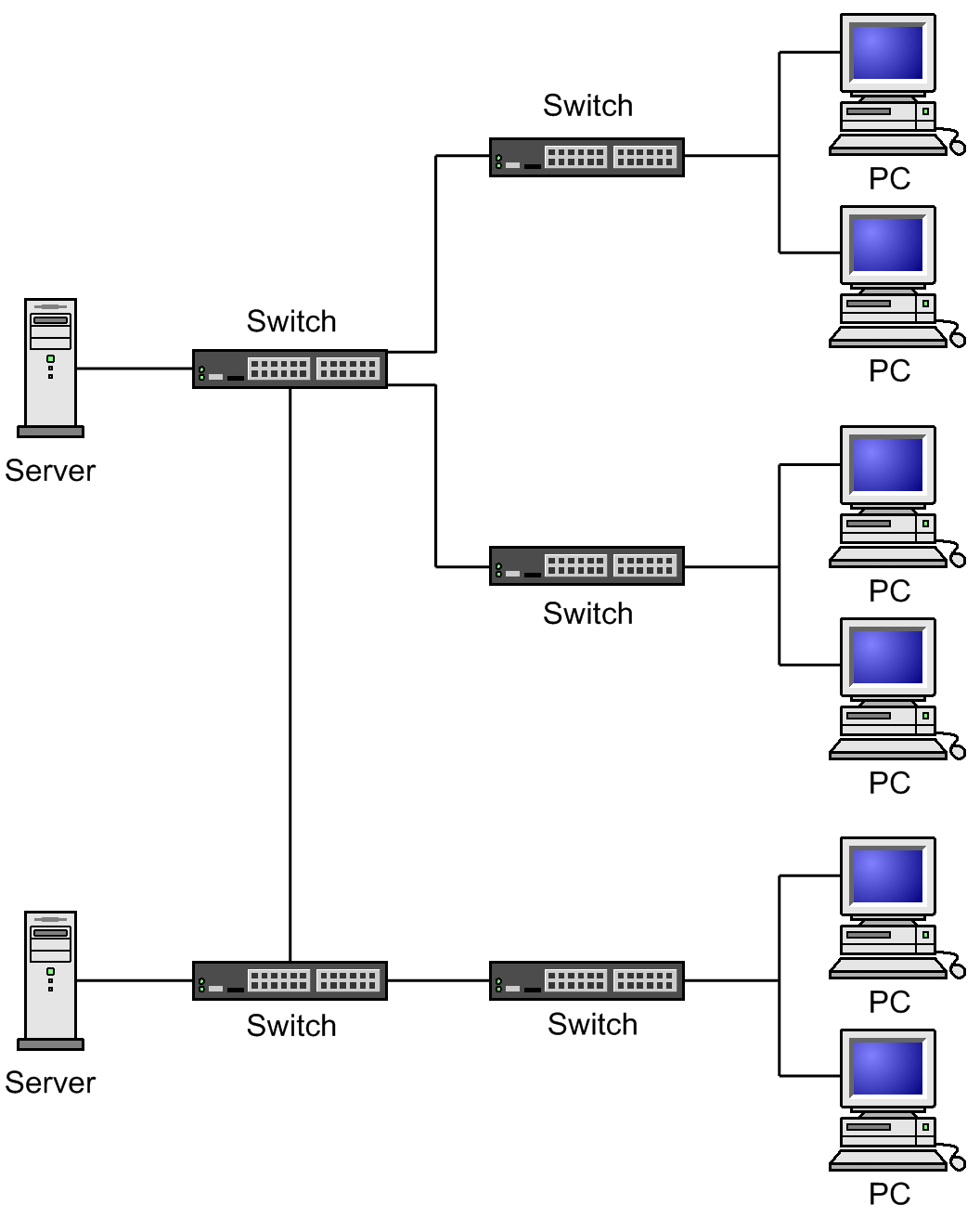

Figure 31-26: Configuration Diagram Using IPv6 PIM-SSM
