28.1.1 Area border

The OSPFv3 protocol allows you to divide an autonomous system (AS) into a number of areas to minimize routing traffic and cut down the processing time required by the SPF algorithm.

The following figure shows an example of an OSPFv3 network topology in which an AS is divided into several areas.

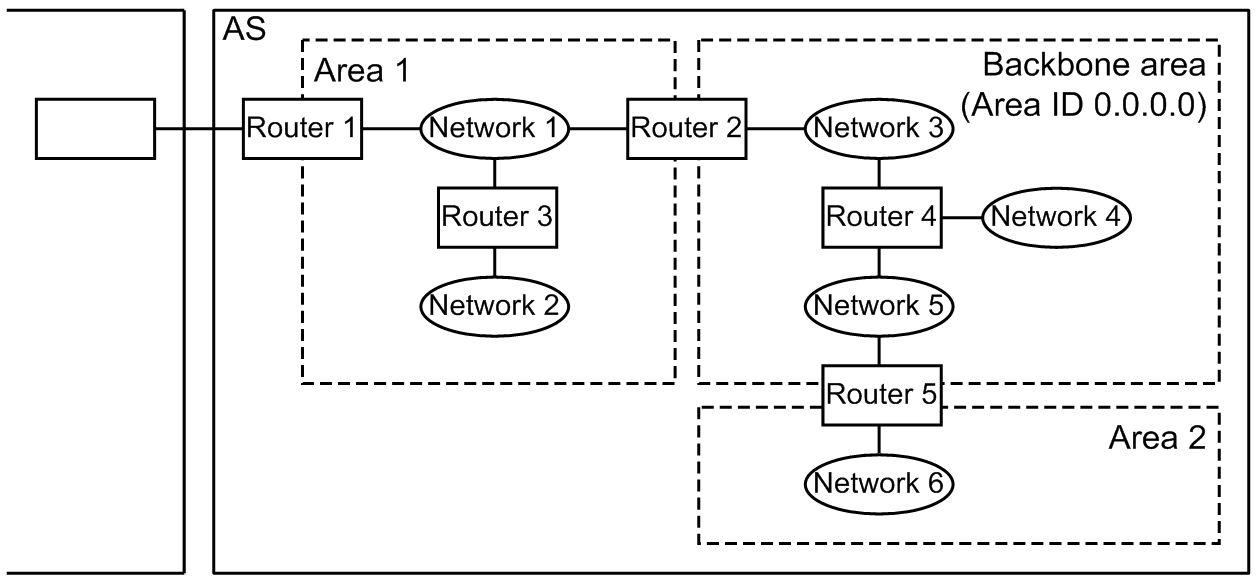

Figure 28-1: Example of a OSPFv3 network topology using area-partitioning

[Figure Data]

A router that attaches to multiple areas is called an area border router. For example, Router 2 and Router 5 in the figure above are area border routers.

Information about the connection status of a given area is not reported outside that area. A router contains no information about the connection status of areas to which it is not connected.

<Structure of this section>

(1) Backbone

An area with an area ID of 0.0.0.0 is called backbone. The backbone has a special role in a split-area topology. If an AS is divided into areas, one of the areas must be designated as the backbone area. Be careful to avoid creating a configuration in which an AS has multiple backbones. In such a configuration, information about inter-area routes is spread across multiple backbones. This can result in unreachable routes being generated or the protocol failing to select the best route.

An area border router uses the backbone to disseminate routing information to other areas. For this reason, an area border router must connect to the backbone area.

(2) Notes on area division

Although dividing an AS into areas reduces the load on the routers and minimizes routing traffic, it also adds a level of complexity to the OSPFv3 algorithm. In particular, you can run into difficulties putting the appropriate fault handling in place. We recommend that you do not use area division unless you have a specific need to reduce the load on routers or networks.

(3) Notes on Area Border Router
