22.2.3 Unicast transmission through one IPv6 DHCP relay

Points to note

The example below shows how to use the ipv6 dhcp relay destination command to specify the IPv6 addresses of the relay destination IPv6 DHCP servers.

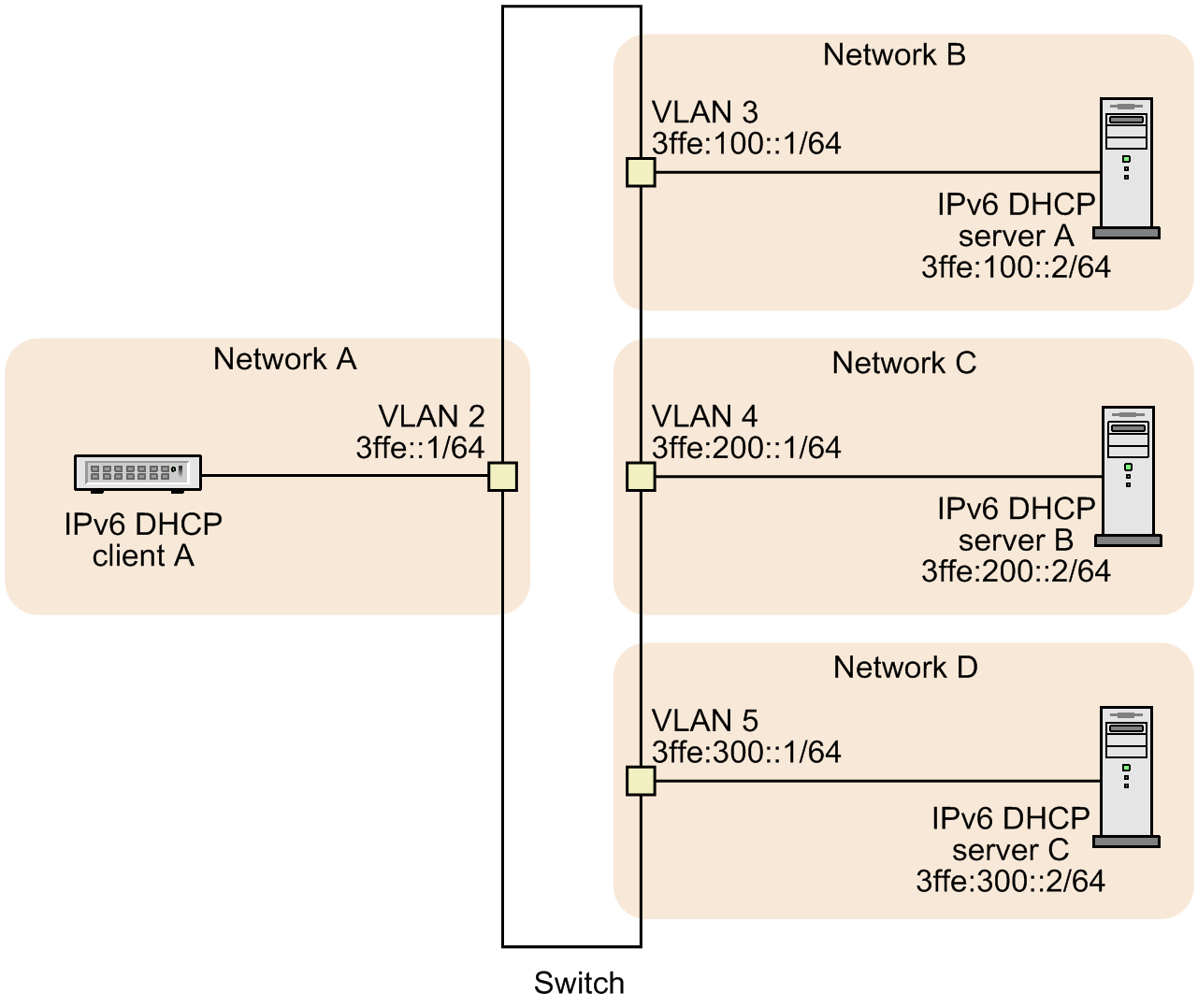

Figure 22-3: Configuration when sending unicast data through one IPv6 DHCP relay

Command examples

1. (config)# no service ipv6 dhcp

   Disables the IPv6 DHCP server on the Switch.

2. (config)# service ipv6 dhcp relay

   Enables the IPv6 DHCP relay on the Switch.

3. (config)# interface vlan 2

   (config-if)# ipv6 dhcp relay destination 3ffe:100::2 3ffe:200::2 3ffe:300::2

   Set 3ffe:100::2, 3ffe:200::2, and 3ffe:300::2 as relay destinations.

4. (config-if)# ipv6 dhcp relay hop-limit 0

   (config-if)# exit

   Sets 0 as the maximum hop count.

5. (config)# ipv6 dhcp relay static-route-setting

   On the Switch, enables the automatic generation of routes from the DHCP servers to the client to which prefixes are distributed. Note that the routes are not configured until the prefixes have been completely distributed.
