16.1.8 IPv4 PIM-SSM Setting
- <Structure of this section>
(1) IPv4 PIM-SSM Address Setting
- Points to note
-
The example below shows how to specify the settings shown below in global configuration mode, to use IPv4 PIM-SSM for the Switch. These settings cause IPv4 PIM-SSM to run within the specified SSM address range on interfaces for which IPv4 PIM-SM is set. Only one SSM address setting can be used on the Switch. In this example, the default (232.0.0.0/8) is used for the SSM address range for which PIM-SSM runs. To specify the SSM address range, use the ip pim ssm range command.
Command examples
-
(config)# ip pim ssm default
Enables use of IPv4 PIM-SSM (with an SSM address range of 232.0.0.0/8).
(2) Set IPv4 PIM-SSM to work together in IGMPv2/IGMPv3(EXCLUDE mode.)
- Points to note
-
Because source addresses cannot be differentiated with IGMPv2 or IGMPv3 (EXCLUDE mode), linkage to the PIM-SSM cannot be performed. With the Switch, the group address and source address for which PIM-SSM is run can be set to link with PIM-SSM. The group address for which PIM-SSM is run needs to be within the SSM address range specified by the IPv4 PIM-SSM address setting. For example, the following figure shows a PIM-SSM configuration in which the group address is 232.10.10.1 and the source address of Server 1 is 192.168.1.2 and the source address of Server 2 is 192.168.2.2.

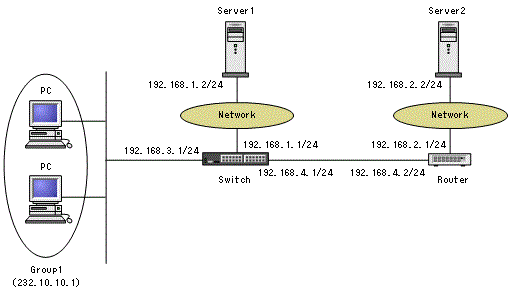

Figure 16-2: PIM-SSM configuration sample
Command examples
-
(config)# access-list 2 permit 232.10.10.1
Creates an access list for which the group address is specified.
-
(config)# ip igmp ssm-map static 2 192.168.1.2
(config)# ip igmp ssm-map static 2 192.168.2.2
Sets the group address for which PIM-SSM is run, and the source addresses for server 1 and server 2 (The access list created in step 1 is used to specify the group address).
-
(config)# ip igmp ssm-map enable
Enables IPv4 PIM-SSM to be used for IGMPv2/IGMPv3 (EXCLUDE mode).
