15.5.3 Example of Adaptive Network Configuration
- <Structure of this section>
(1) Configuration using PIM-SM
This configuration is appropriate in the following cases:
-
The number of users sending multicast packets is not limited.
-
The number of users sending multicast packets is large.
- Network environment
-
-
The IP unicast routing protocol runs on all routers.
-
PIM-SM is used as the multicast routing protocol between the Switches.
-
IGMP is used for group management control between each group and the Switches.
-
One switch is used as the rendezvous point and BSR.
-
A static rendezvous point can be specified as the rendezvous point to reduce the time needed to determine the rendezvous point upon system startup.
-
- Configuration diagram
-
The following diagram shows a configuration.

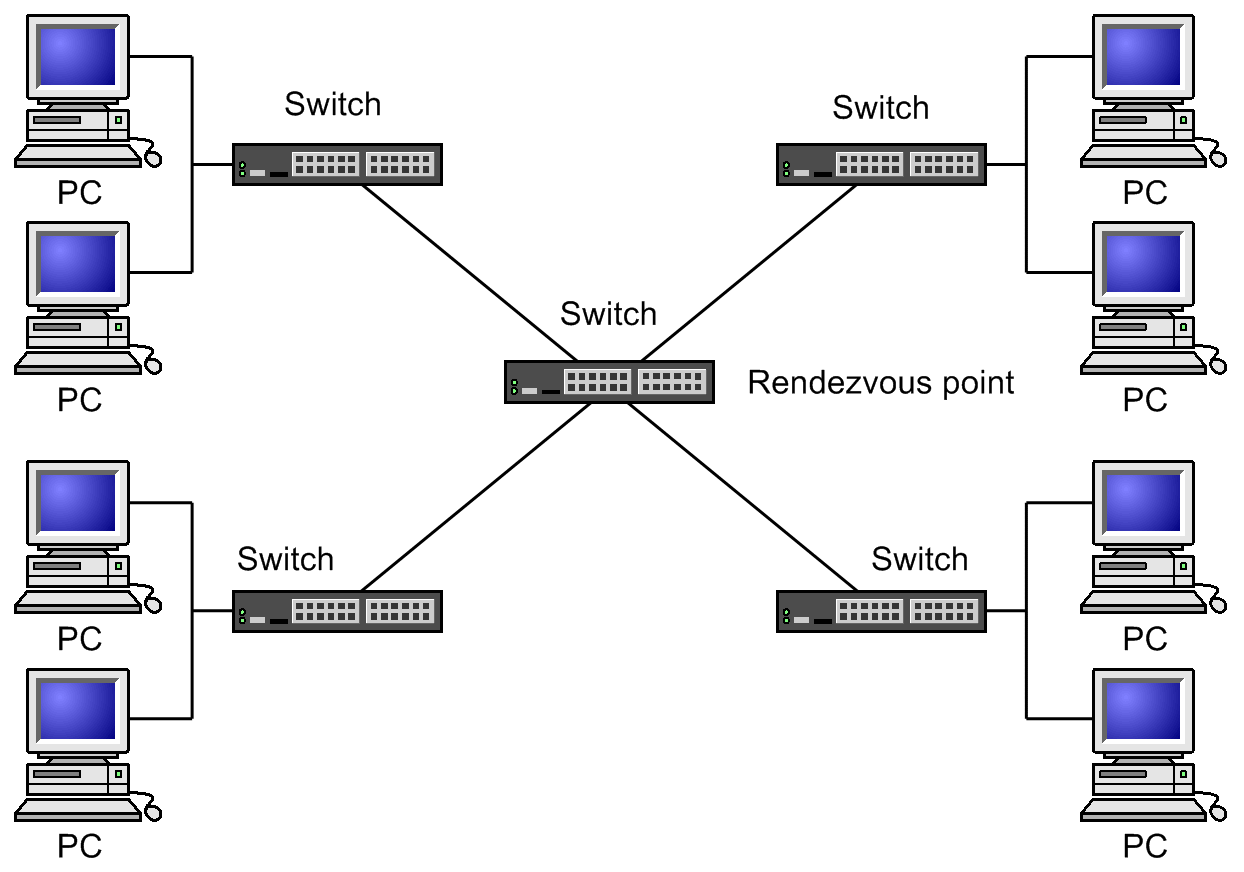

Figure 15-26: Configuration Diagram Using PIM-SM ![[Figure Data]](./GRAPHICS/ZU313181.GIF)
(2) Configuration using PIM-SSM
This configuration is appropriate in the following cases:
-
The number of users sending multicast packets is limited (such as for distribution servers).
-
Broadband multicast communication is used.
-
Multi-channel multicast communication is used.
- Network environment
-
-
The IP unicast routing protocol runs on all routers.
-
PIM-SSM is used as the multicast routing protocol between the Switches. PIM-SSM is extended PIM-SM functionality.
-
To use IGMPv2 or IGMPv3 (in IGMPv2 or IGMPv3(EXCLUDE) for group management control between a group and the Switch, you need to configure the settings to operate SSM together.
-
- Configuration diagram
-
The following diagram shows a configuration.

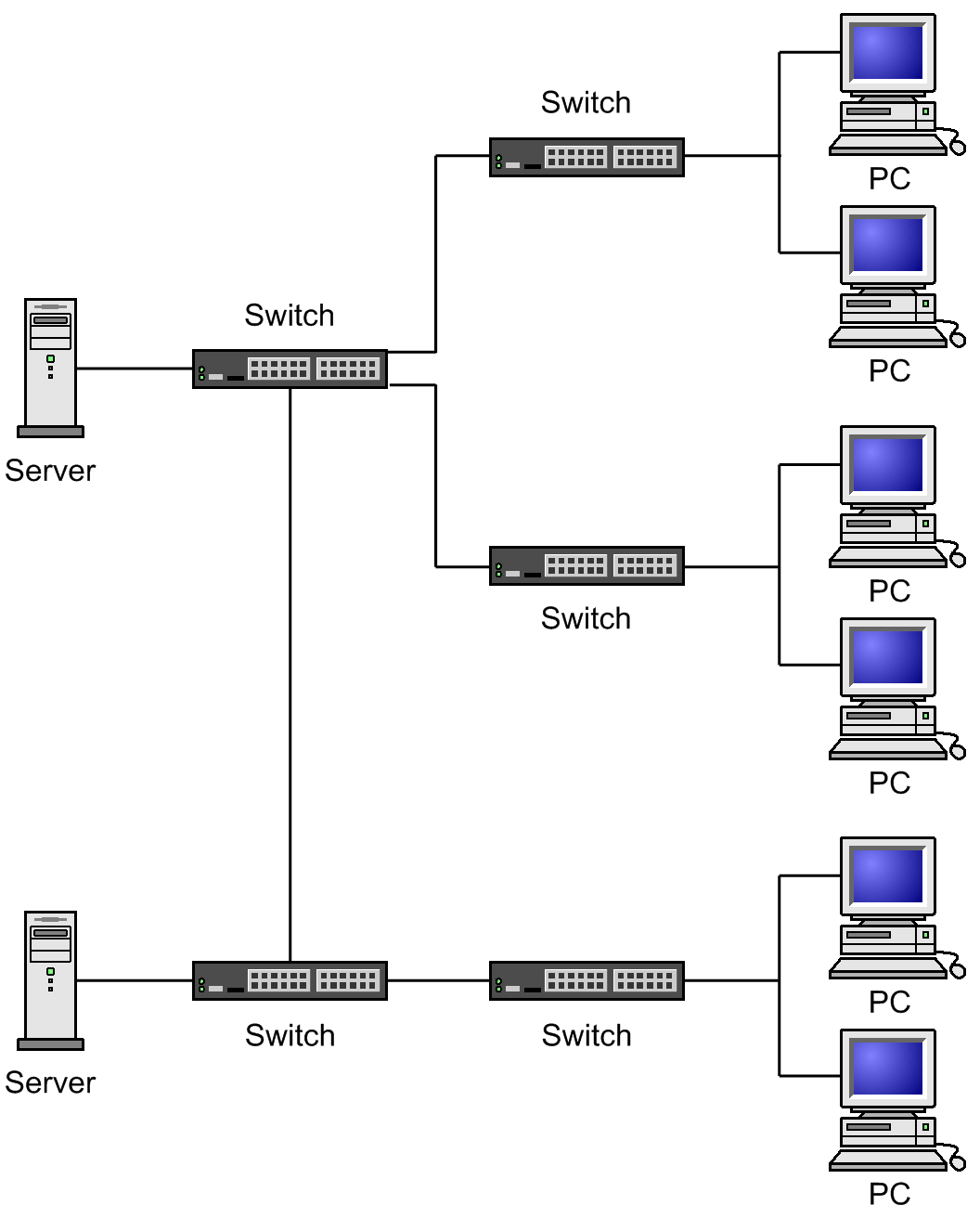

Figure 15-27: Configuration Diagram Using PIM-SSM ![[Figure Data]](./GRAPHICS/ZU313182.GIF)
