12.7.2 Stub router operation
You can use the max-metric router-lsa configuration command to enable stub router functionality at the domain level. You can also specify whether the router functions as a stub router on a permanent basis, or only at startup.
- <Structure of this section>
(1) For normal operation
The router advertises maximum cost for its routes on a permanent basis. It continues to operate as a stub router until the user deletes the setting.
(2) When operating as a stub router after startup
The router advertises maximum cost for its routes when either of the events below occurs. It continues to operate as a stub router until the timer specified in the configuration expires.
-
Starting the switch
-
After switching the master switch (except when graceful restart is successful)
-
After restarting the unicast routing program (except when graceful restart is successful)
-
After graceful restart occurs and the Switch has failed to learn a route as a restart router,

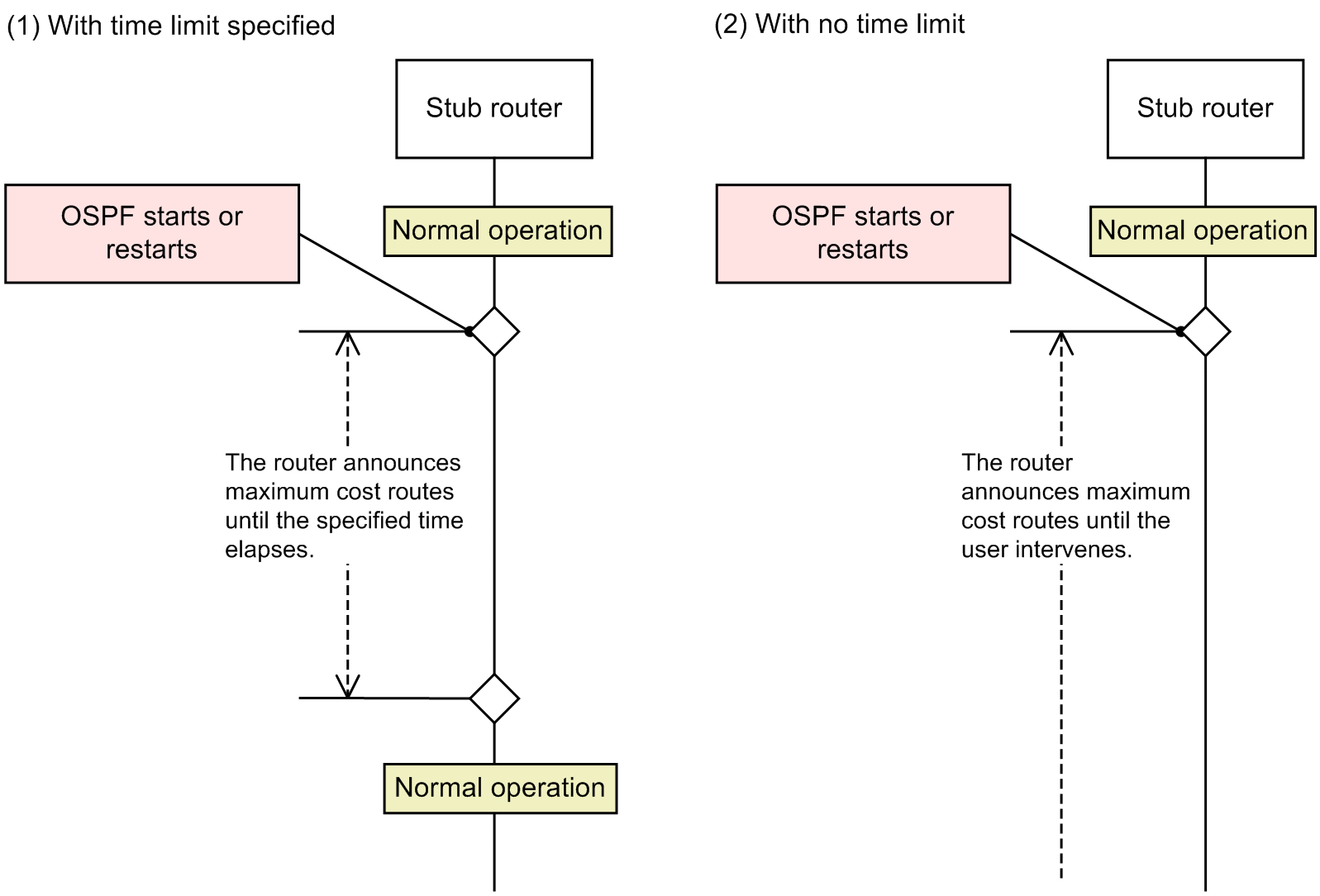

You can stop the router from operating as a stub router by executing the clear ip ospf stub-router operation command or removing the setting from the configuration. The following figure shows the operation of a stub router:
|
|
![[Figure Data]](./GRAPHICS/ZU310060.GIF)
(3) Notes
-
Do not change the configuration of a stub router that is participating as a helper router in a graceful restart. The stub router might begin or cease operation causing disruption to the helper process.
-
If a router is set up to always operate as a stub router and you then change the settings so that it operates as a stub router after startup, it will immediately cease to operate as a stub router.
-
You cannot configure a virtual link through a stub router.
If the cost in the transit area is higher than 65535, the virtual link will mark itself as unreachable.
-
In the older OSPF standard described in RFC 1247, routing information subject to a maximum metric is not used for SPF computation. For this reason, devices that do not conform to the newer OSPF standard will not register routes through the stub network.
