21.1.3 sFlow packet-format

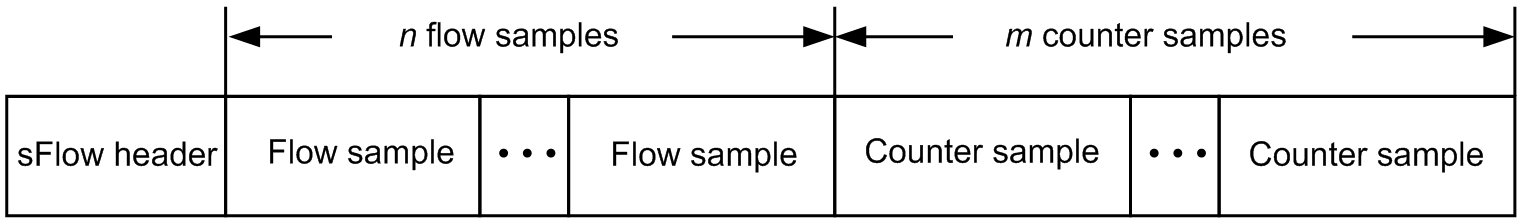

This section describes sFlow packets (flow sample and counter sample) that the Switch sends to a collector. The format used to send the packets to a collector is defined in RFC 3176. The following figure shows the sFlow packet format.
|
In the Switch, flow samples and counter samples are not stored in a single sFlow packet at the same time.
- <Structure of this section>
(1) sFlow headers
The following table describes information set in the sFlow header.
Configuration items |
Description |
Supported |
---|---|---|
Version number |
sFlow packet version (Versions 2 and 4 are supported.) |
OK |
Address type |
IP type of the agent (where 1 is IPv4, and 2 is IPv6) |
OK |
Agent IP address |
Agent IP address |
OK |
Sequence number |
Number incremented for each sFlow packet-generation# |
OK |
Generation time |
Time in milliseconds since the switch started |
OK |
Number of samples |
Number of packets sampled (flow counter) included in this signal* (n+m is set in the "Diagram 21-4 sFlow Packet Format.") |
OK |
Legend: OK: Supported
#: Resets when the master switch is switched during stack configuration.
(2) Flow sample

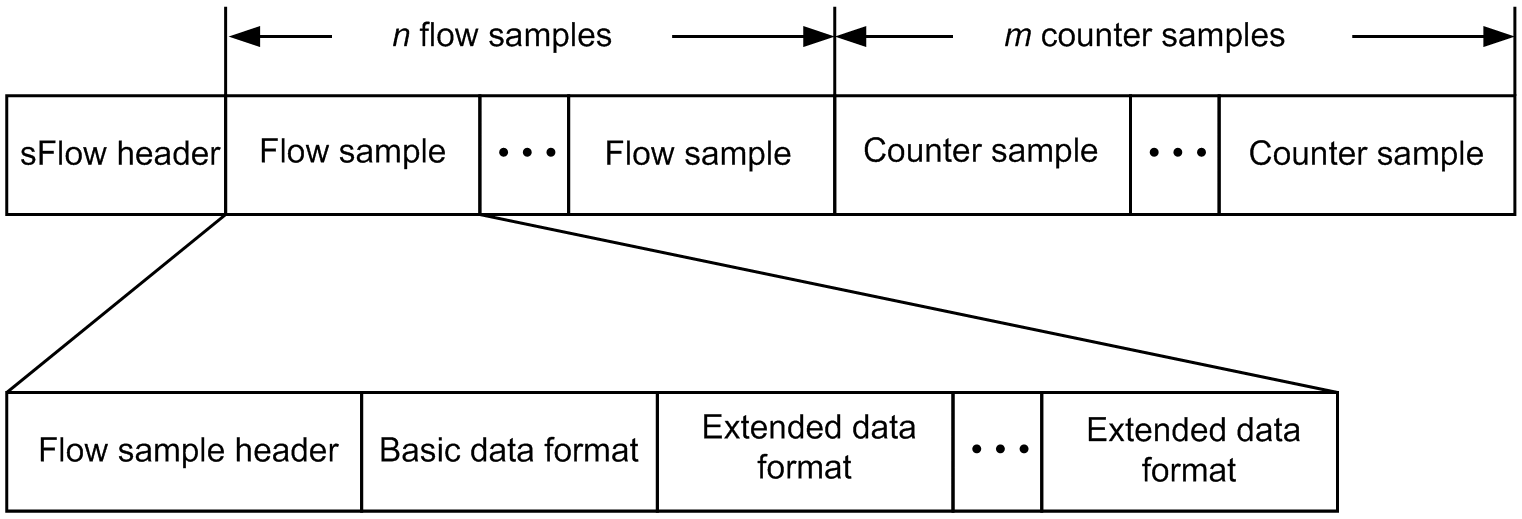

Flow sample is the format used to retrieve packets from among the received packets that are to be forwarded to another switch or sent to the Switch at a specified sampling interval for transmission to a collector. However, the Switch does not support flow samples for packets destined for the Switch. Because the flow sample functionality collects information about the monitored packets and information that is not contained in a packet (such as the receiving interface, sending interface, and the AS number), detailed network monitoring becomes possible. The following figure shows the flow sample format.
|
(a) Flow sample header
The following table describes the information set in the flow sample header.
Configuration items |
Description |
Supported |
---|---|---|
sequence_number |
Number to be incremented each time a flow sample is generated*1 |
OK |
source_id |
The SNMP Interface Index, which indicates the source on a switch from which the flow sample was created (receiving interface) |
OK |
sampling_rate |
Sampling rate of flow samples |
OK |
sample_pool |
Total number of packets arriving at an interface |
OK |
drops |
Total number of discarded flow samples Set 0 fixed in this machine. |
OK |
input |
SNMP Interface Index of the receiving interfaces If the interface is unknown, 0 is set. |
OK |
output |
SNMP Interface Index of send interfaces*2 Set to 0 if the sending interface is unknown |
NG |
Legend: OK: Supported, NG: Not supported.
1 Reset when the master switch is switched in a stack configuration.
#2: The value is fixed to 0 because output is not supported in the Switch.
(b) Basic data format
There are three basic data format types (header, IPv4, and IPv6), but only one can be set. By default, the header type is set as the basic data type. If you want to use the IPv4 type or the IPv6 type, use a configuration command to change the setting. The following tables describe the formats.
Configuration items |
Description |
Supported |
---|---|---|
packet_information_type |
Basic data format type (header type is 1) |
OK |
header_protocol |
Header protocol number (ETHERNET is 1) |
OK |
frame_length |
Length of the original packet |
OK |
header_length |
Length of a packet as sampled (default length is 128) |
OK |
header<> |
Contents of the sampled packet |
OK |
Legend: OK: Supported
Note: This format is used if a packet cannot be analyzed as an IP packet.
Configuration items |
Description |
Support* |
---|---|---|
packet_information_type |
Basic data format type (IPv4 type is 2) |
OK |
length |
Length of the IPv4 packet |
OK |
protocol |
IP protocol type (Example: TCP=6, UDP=17) |
OK |
src_ip |
Source IP address |
OK |
dst_ip |
Destination IP address |
OK |
src_port |
Source port number |
OK |
dst_port |
Destination port number |
OK |
tcp_flags |
TCP flag |
OK |
TOS |
IP TOS (type of service) |
OK |
Legend: OK: Supported
#: If a frame with two or more VLAN Tag is the target, it is not collected in sFlow datagram.
Configuration items |
Description |
Support*1 |
---|---|---|
packet_information_type |
Basic data format type (IPv6 type is 3) |
OK |
length |
Length of the IPv6 packet excluding the lower layers |
OK |
protocol |
IP protocol type (Example: TCP=6, UDP=17) |
OK |
src_ip |
Source IP address |
OK |
dst_ip |
Destination IP address |
OK |
src_port |
Source port number |
OK |
dst_port |
Destination port number |
OK |
tcp_flags |
TCP flag |
OK |
priority |
Priority #2 |
OK |
Legend: OK: Supported
#1: If a frame with a VLAN Tag that is 2 or more stages is subject to processing, the data is not collected in sFlow packetsI will.
#2: The Switch collects traffic classes.
(c) Extended data format
There are five types of extended data formats: switch type, router type, gateway type, user type, and URL type. By default, the extended data format is configured to collect all the extended data formats and send them to a collector. This format can be changed by using the configuration file. The following tables describe the formats.
Extended data type |
Description |
Supported |
---|---|---|
Switch type |
Collects switch information (such as VLAN information). |
OK |
Router type |
Collects router information (such as NextHop). |
OK #1 #2 |
Gateway type |
Collects gateway information (such as AS the number). |
OK #1 #2 |
User type |
Collects user information (such as TACACS or RADIUS information). |
OK #2 |
URL type |
Collects URL information. |
OK #2 |
Legend: OK: Supported
#1: Information is not collected in sFlow packets during L2 forwarding.
#2: If a VLAN-tagged frame with multiple tiers is the target, information is not collected in sFlow packets.
Configuration items |
Description |
Supported |
---|---|---|
extended_information_type |
Extended data format type (switch type is 1) |
OK |
src_vlan |
802.1Q VLAN ID of a received packet |
OK |
src_priority |
802.1p priority of a received packet |
OK |
dst_vlan |
802.1Q VLAN ID of a received packet |
NG # |
dst_priority |
802.1p priority of a sent packet |
NG # |
Legend: OK: Supported, NG: Not supported.
#: Fixed at 0 because the item is not supported
Configuration items |
Description |
Supported |
---|---|---|
extended_information_type |
Extended data format type (router type is 2) |
OK |
nexthop_address_type |
IP address type of the next forward destination |
OK # |
nexthop |
IP address of the next forward destination router |
OK # |
src_mask |
Prefix mask bit of the source switch address |
OK |
dst_mask |
Prefix mask bit of the destination switch address |
OK |
Legend: OK: Supported
#: Fixed at 0 if the path to the destination address is one of multipaths
Configuration items |
Description |
Supported |
---|---|---|
extended_information_type |
Extended data format type (gateway type is 3) |
OK |
as |
AS number of the Switch |
OK |
src_as |
AS number of the source switch |
OK #1 |
src_peer_as |
Neighboring AS number to the source switch |
OK #1 #2 |
dst_as_path_len |
Number of AS information items (fixed to 1) |
OK |
dst_as_type |
Type of the AS path (2 is AS_SEQUENCE) |
OK |
dst_as_len |
Number of ASs (fixed to 2) |
OK |
dst_peer_as |
Neighboring AS number to the destination |
OK #1 |
dst_as |
AS number of the destination |
OK #1 |
communities<> |
Community related to this route*3 |
NG |
localpref |
Local priority for this route*3 |
NG |
Legend: OK: Supported, NG: Not supported.
#1: If the path to the sending and receiving destination is a direct route, the AS number is recorded as 0.
#2: The neighboring AS number if the sending destination was retrieved from the Switch. This number might be different from the neighboring AS number to which the information was actually forwarded.
#3: Fixed at 0 because the item is not supported
Configuration items |
Description |
Supported |
---|---|---|
extended_information_type |
Extended data format type (user type is 4) |
OK |
src_user_len |
Length of the user name of the source |
OK |
src_user<> |
User name of the source |
OK |
dst_user_len |
Length of the user name of the destination# |
NG |
dst_user<> |
User name of the destination# |
NG |
Legend: OK: Supported, NG: Not supported.
#: Fixed at 0 because the item is not supported
Configuration items |
Description |
Supported |
---|---|---|
extended_information_type |
Extended data format type (URL type is 5) |
OK |
url_direction |
URL information source (The source address is 1, and the destination address is 2.) 2 fixed is set in this equipment. |
OK |
url_len |
URL length |
OK |
url<> |
Contents of the URL |
OK |
Legend: OK: Supported
(3) Counter sample

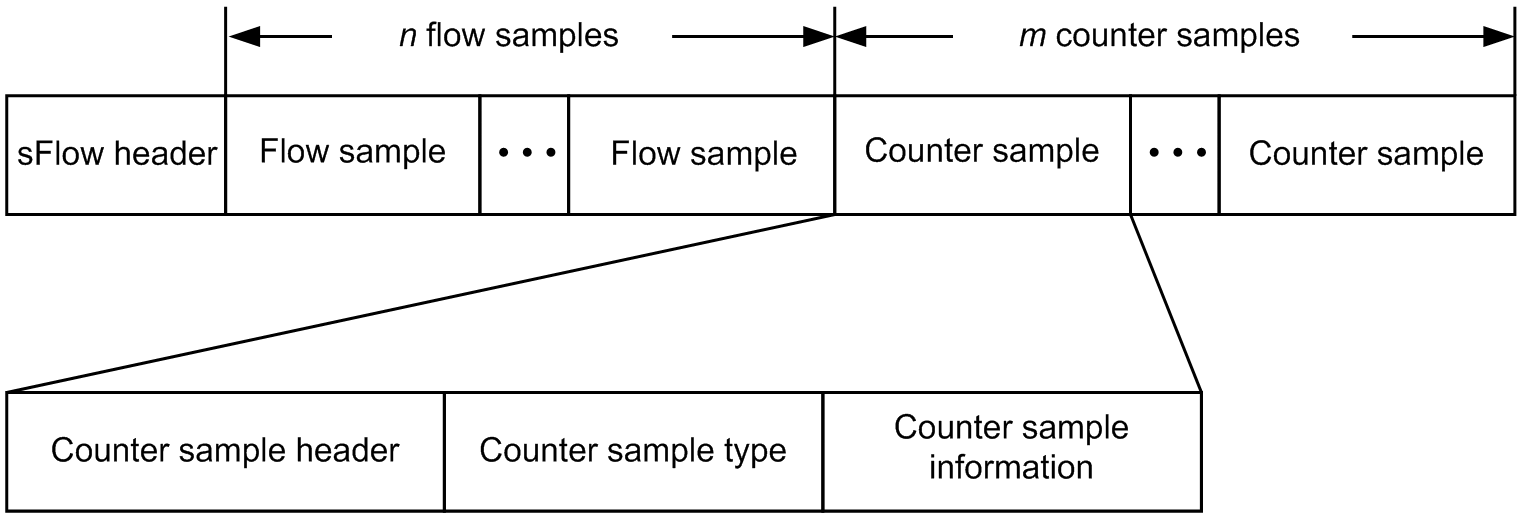

A counter sample sends interface statistics (number of arrived packets and number of errors). Also, the format to be sent to a collector is determined according to the interface type. The following figure shows the counter sample format.
|
(a) Counter sample header
The following table describes the information set in the counter sample header.
Configuration items |
Description |
Supported |
---|---|---|
sequence_number |
Number to be incremented each time counter sample is generated* |
OK |
source_id |
The SNMP Interface Index, which indicates the source (specific port) on a switch for the counter sample |
OK |
sampling_interval |
Interval at which counter samples are sent to a collector |
OK |
Legend: OK: Supported
#: Resets when the master switch is switched during stack configuration.
(b) Counter sample type
The counter sample types reflect interface types and are collected according to this classification. The following table describes the items set for counter sample type.
Configuration items |
Description |
Supported |
---|---|---|
GENERIC |
General statistics (counters_type is set to 1) |
NG #1 |
ETHERNET |
Ethernet statistics (counters_type is set to 2) |
OK |
TOKENRING |
Token ring statistics (counters_type is set to 3) |
NG #1 |
FDDI |
FDDI statistics (counters_type is set to 4) |
NG #1 |
100BaseVG |
VG statistics (counters_type is set to 5) |
NG #1 |
WAN |
WAN statistics (counters_type is set to 6) |
NG #1 |
VLAN |
VLAN statistics (counters_type is set to 7) |
NG #2 |
Legend: OK: Supported, NG: Not supported.
#1: This interface type is not supported by the Switch.
#2: The Switch does not support VLAN statistics.
(c) Counter sample information
Counter sample information to be collected varies according to the counter sample type. Except for VLAN statistics, information is sent according to the statistics used by MIBs. The following table describes items set as counter sample information.
Configuration items |
Description |
Supported |
---|---|---|
GENERIC |
General statistics (see RFC 2233) |
NG |
ETHERNET |
Ethernet statistics (see RFC 2358) |
OK # |
TOKENRING |
Token ring statistics (see RFC 1748) |
NG |
FDDI |
FDDI statistics (see RFC 1512) |
NG |
100BaseVG |
VG statistics (see RFC 2020) |
NG |
WAN |
WAN statistics (see RFC 2233) |
NG |
VLAN |
VLAN statistics (see RFC 3176) |
NG |
Legend: OK: Supported, NG: Not supported.
#: Among the Ethernet statistics, ifDirection and dot3StatsSymbolErrors cannot be collected.
