11.1.2 Configuration of Fixed VLAN

<Structure of this section>

(1) Basic settings for the local authentication method

The following figure shows the basic configuration required to use local authentication in fixed VLAN mode.

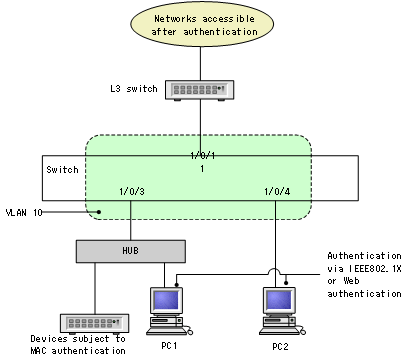

Figure 11-1: Basic configuration of the local authentication method in fixed VLAN mode

(a) Configuring Authentication Ports

Points to note: Configure the port to be used for MAC-based authentication.

Command examples

(config)# interface gigabitethernet 1/0/3

(config-if)# switchport mode access

(config-if)# switchport access vlan 10

(config-if)# mac-authentication port

(config-if)# exit

Configures MAC-based authentication at a port where a terminal will be authenticated.

(b) Configuring MAC Authorization

Points to note: Enable MAC-based authentication by using configuration commands.

Command examples

(config)# mac-authentication system-auth-control

Starts MAC-based authentication.

(2) Basic settings for RADIUS authentication method

The following figure shows the basic configuration required to use RADIUS authentication in fixed VLAN mode.

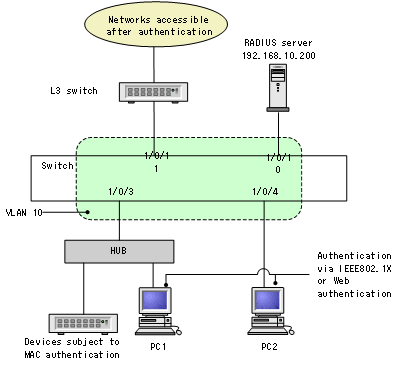

Figure 11-2: Basic configuration of RADIUS authentication-method in fixed VLAN

(a) Configuring Authentication Ports

Points to note: Configure the port to be used for MAC-based authentication.

Command examples

(config)# interface gigabitethernet 1/0/3

(config-if)# switchport mode access

(config-if)# switchport access vlan 10

(config-if)# mac-authentication port

(config-if)# exit

Configures MAC-based authentication at a port where a terminal will be authenticated.

(b) Configuring MAC Authorization

Points to note: Enable MAC-based authentication by using configuration commands.

Command examples

(config)# aaa authentication mac-authentication default group radius

(config)# mac-authentication radius-server host 192.168.10.200 key "macauth"

Specifies the IP address and RADIUS key used to access the RADIUS server to perform authentication.
(config)# mac-authentication system-auth-control

Starts MAC-based authentication.
