6.1.1 Support function

This section lists the functionality supported by the Switch.

<Structure of this section>

(1) Authentication operation mode

The Switch takes the role of the authenticator in the IEEE 802.1X model. You cannot configure the Switch to act as a supplicant.

(2) Authentication method

The Switch supports authentication using a RADIUS server. In this method, EAPOL packets received from the terminal are encapsulated into EAP over RADIUS packets and forwarded to the RADIUS server for authentication. The RADIUS server must support EAP.

Table 6-2: Attribute names used for authentication (their 1 Access-Request) and Table 6-5: Attribute names used for authentication (their 4 Access-Reject) show the attribute names for RADIUS used by the Switch.

Table 6-2: Attributenames used for authentication (in this 1 Access-Request)
Attribute name	Type value	Description
User-Name	1	The name of the user to be authenticated.
NAS-IP-Address	4	The IP address of the authenticator (the Switch) that is requesting authentication of the user. This attribute contains the local address of the Switch, or the IP address of the transmission interface if no local address is set.
NAS-Port	5	The IfIndex of the interface that is authenticating the supplicant.
Service-Type	6	The type of service to be provided. Fixed as Framed(2).
Framed-MTU	12	The largest frame size between Supplicant~Authenticator. Fixed at (1466).
State	24	Allows state information to be maintained between the authenticator and the RADIUS server.
Called-Station-Id	30	The MAC address of the bridge or access point. The MAC address of the Switch (as a hyphen-punctuated ASCII string).
Calling-Station-Id	31	The MAC address of the supplicant (as a hyphen-punctuated ASCII string).
NAS-Identifier	32	A string identifying the authenticator (by host name).
NAS-Port-Type	61	The type of physical port the authenticator is using to authenticate the user. Fixed as Ethernet (15).
Connect-Info	77	A string characterizing the connection with the supplicant. Port-based authentication: Physical port ("CONNECT Ethernet") CH port ("CONNECT Port-Channel ") VLAN-based authentication (static):("CONNECT VLAN") VLAN-based authentication (dynamic):("CONNECT DVLAN")
EAP-Message	79	Encapsulates EAP packets.
Message-Authenticator	80	Provides protection for RADIUS/EAP packets.
NAS-Port-Id	87	A string identifying the port of the authenticator that is authenticating the supplicant. Port-based authentication:"Port x/y", "ChGr x" VLAN-based authentication (static):"VLAN x" VLAN-based authentication (dynamic):"DVLAN x" (x and y take numerical values)
NAS-IPv6-Address	95	The IPv6 address of the authenticator that is requesting authentication of the user (in this case the Switch). This attribute contains the local address of the Switch, or the IP address (IPv6) of the transmission interface if no local address is set. Note that when communication takes place using IPv6 link-local addresses, this attribute will contain the IPv6 link-local addresses of the transmission interface regardless of whether local addresses are set.

Table 6-3: Attributenames used for authentication (in this 2 Access-Challenge)
Attribute name	Type value	Description
Reply-Message	18	A message that may be displayed to a user.
State	24	Allows state information to be maintained between the authenticator and the RADIUS server.
Session-Timeout	27	The length of time to wait for a supplicant to respond to an EAP-Request.
EAP-Message	79	Encapsulates EAP packets.
Message-Authenticator	80	Provides protection for RADIUS/EAP packets.

Table 6-4: Attributenames used for authentication (in this 3 Access-Accept)
Attribute name	Type value	Description
Service-Type	6	The type of service to be provided. Fixed as Framed(2).
Filter-Id	11	The name of the filter list to be applied to the supplicant's session. This attribute is meaningful only in the context of VLAN-based authentication (static), or port-based authentication in terminal authentication mode. The authentication IPv4 access list, being the only applicable filter, takes effect when the Filter-Id is non-zero.
Reply-Message	18	A message that may be displayed to a user.
Session-Timeout	27	The time between supplicant re-authentication attempts. ^#
Termination-Action	29	Indicates what action the Switch should take following expiry of the re-authentication timer. ^#
Tunnel-Type	64	Indicates the tunneling protocol used. It is meaningful only in the context of VLAN-based authentication (dynamic). Fixed as VLAN(13).
Tunnel-Medium-Type	65	Indicates the protocol to use to create a tunnel. It is meaningful only in the context of VLAN-based authentication (dynamic). Fixed as IEEE 802(6).
EAP-Message	79	Encapsulates EAP packets.
Message-Authenticator	80	Provides protection for RADIUS/EAP packets.
Tunnel-Private-Group-ID	81	A string identifying a VLAN. In an Access-Accept packet, this attribute indicates the VLAN to be assigned to the authenticated supplicant. It is meaningful only in the context of VLAN-based authentication (dynamic). The strings can be formatted as follows: (1) As a string indicating a VLAN ID (2) As a string containing the word "VLAN" followed by a VLAN ID (3) As a string indicating a VLAN name as specified by the name configuration command. The string cannot contain spaces. If it does, VLAN assignment will fail. Examples (for VLAN 10): Format (1): "10" Format (2): "VLAN10" Format (3): "business-office"
Acct-Interim-Interval	85	The number of seconds between interim packets. Interim packets will be sent if this attribute has a value of 60 or greater, but not for values less than 60. When using this attribute, we recommend that you specify a value of 600 or greater. Due to the potential for increased network traffic, caution is required when assigning values less than 600.

#

If the RADIUS server returns the value Radius-Request(1) for the Termination-Action attribute in an Access-Accept packet, the Switch performs re-authentication after the value specified for the Session-Timeout attribute (as a time in seconds) configured in the same packet has elapsed. The Switch exhibits the following behavior depending on the Session-Timeout value:

0 :Re-authentication is disabled.

1~60 :The reauthentication timer value is set to 60 seconds.

61~65535:Operation is performed with the set value.

Table 6-5: Attributenames used for authentication (in this 4 Access-Reject)
Attribute name	Type value	Description
Reply-Message	18	A message that may be displayed to a user.
EAP-Message	79	Encapsulates EAP packets.
Message-Authenticator	80	Provides protection for RADIUS/EAP packets.

(3) Authentication algorithm

The following table describes the supported authentication algorithms.

Table 6-6: Supported authentication algorithms
Authentication algorithm	Overview
EAP-MD5-Challenge	Uses a challenge value to test the validity of user passwords.
EAP-TLS	Performs authentication based on a certificate authentication mechanism.
EAP-PEAP	Performs authentication using a separate EAP authentication algorithm encapsulated within an EAP-TLS tunnel. The following two authentication methods are supported. PEAP-MS-CHAP V2: Authentication Method Using Password-Based Credentials PEAP-TLS: Authentication Method Using the Certificate Authority
EAP-TTLS	Performs authentication using an authentication algorithm of an existing protocol (such as EAP, PAP, or CHAP) encapsulated within an EAP-TLS tunnel.

(4) RADIUS Accounting function

The Switch supports RADIUS accounting. This functionality generates user accounting information whenever service delivery to an IEEE 802.1X-authenticated terminal starts or finishes. An administrator can use this information to track network usage. You can set up separate servers for RADIUS authentication and accounting services to distribute the RADIUS workload.

The following table describes the information that the RADIUS accounting functionality sends to the RADIUS server.

Table 6-7 Attributes supported by RADIUS Accounting
Attribute name	Type value	Description	Transmission by accounting request type
Attribute name	Type value	Description	Start	stop	Interim- Update
User-Name	1	The name of the user to be authenticated.	OK	OK	OK
NAS-IP-Address	4	The IP address of the authenticator (the Switch) that is requesting authentication of the user. This attribute contains the local address of the Switch, or the IP address of the transmission interface if no local address is set.	OK	OK	OK
NAS-Port	5	The IfIndex of the interface that is authenticating the supplicant.	OK	OK	OK
Service-Type	6	The type of service to be provided. Fixed as Framed(2).	OK	OK	OK
Calling-Station-Id	31	The MAC address of the supplicant (as a hyphen-punctuated ASCII string).	OK	OK	OK
NAS-Identifier	32	A string identifying the authenticator (by host name).	OK	OK	OK
Acct-Status-Type	40	Accounting request type (Start (1), Stop (2), or Interim-Update (3)).	OK	OK	OK
Acct-Delay-Time	41	The delay (in seconds) between the event occurring and transmission to the server.	OK	OK	OK
Acct-Input-Octets	42	Accounting information (number of octets received). (0)Fixed.	-	OK	OK
Acct-Output-Octets	43	Accounting information (number of octets sent) (0)Fixed.	-	OK	OK
Acct-Session-Id	44	ID that identifies Accounting (same for successful authentication and deauthorization).	OK	OK	OK
Acct-Authentic	45	Indicates how the user was authenticated (RADIUS (1), Local (2), or Remote (3)).	OK	OK	OK
Acct-Session-Time	46	Accounting information (session length).	-	OK	OK
Acct-Input-Packets	47	Accounting information (number of packets received). (0)Fixed.	-	OK	OK
Acct-Output-Packets	48	Accounting information (number of packets sent). (0)Fixed.	-	OK	OK
Acct-Terminate-Cause	49	Accounting information (reason for session termination). For more information, see Table 6-8 Disconnection factor in Acct-Terminate-Cause. User Request (1), Lost Carrier (2), Admin Reset (6), Reauthentication Failure (20), Port Reinitialized (21)	-	OK	-
NAS-Port-Type	61	The type of physical port the authenticator is using to authenticate the user. Fixed as Ethernet (15).	OK	OK	OK
NAS-Port-Id	87	A string identifying the port of the authenticator that is authenticating the supplicant. NAS-Port-Id differs from NAS-Port in that it is a string of variable length whereas NAS-Port is a 4-octet integer value. Port-based authentication:"Port x/y", "ChGr x" VLAN-based authentication (static):"VLAN x" VLAN-based authentication (dynamic):"DVLAN x" (x and y take numerical values)	OK	OK	OK
NAS-IPv6-Address	95	The IPv6 address of the authenticator that is requesting authentication of the user (in this case the Switch). This attribute contains the local address of the Switch, or the IP address (IPv6) of the transmission interface if no local address is set. Note that when communication takes place using IPv6 link-local addresses, this attribute will contain the IPv6 link-local addresses of the transmission interface regardless of whether local addresses are set.	OK	OK	OK

(Legend) OK: Send-: Do not send

Table 6-8 Disconnection factor in Acct-Terminate-Cause
Termination cause	Code	Description
User Request	1	The session was terminated at the request of the supplicant. A logoff request was received from the authenticated terminal
Lost Carrier	2	The modem dropped the carrier signal. Internal error
Admin Reset	6	Action by the administrator caused the session to terminate. The administrator deleted the interface configuration force-authorized was configured force-unauthorized was configured force-authorized-port was configured
Reauthentication Failure	20	Re-authentication failed.
Port Reinitialized	21	The port's MAC address has been reinitialized. A link went down You executed clear dot1x auth-state

(5) Logging Operations to syslog Servers

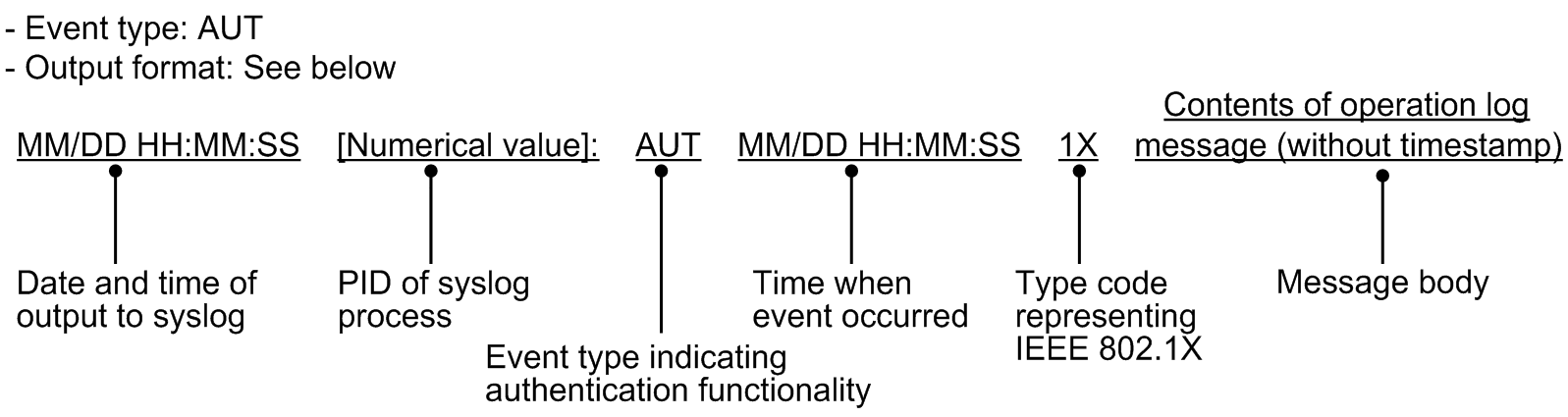

You can output the internal logs for the IEEE 802.1X functionality to a syslog server. In this case, the items that are output to the server are the same as those that appear in the internal log. The following figure shows the format of log output to the syslog server.

Figure 6-3: Format for syslog servers

You can use the dot1x logging enable and logging event-kind configuration commands to start and stop the logging of IEEE 802.1X authentication sessions.
