5.2.2 Coexistence in the same port

This section describes, for the following categories, the combinations of authentication mode that the Switch supports when using multiple Layer 2 authentication strategies simultaneously on a single port:

Fixed VLAN mode
Dynamic VLAN mode
Fixed VLAN mode and dynamic VLAN mode
Legacy mode

<Structure of this section>

(1) Coexistence of Fixed VLAN Modes on the Same Port

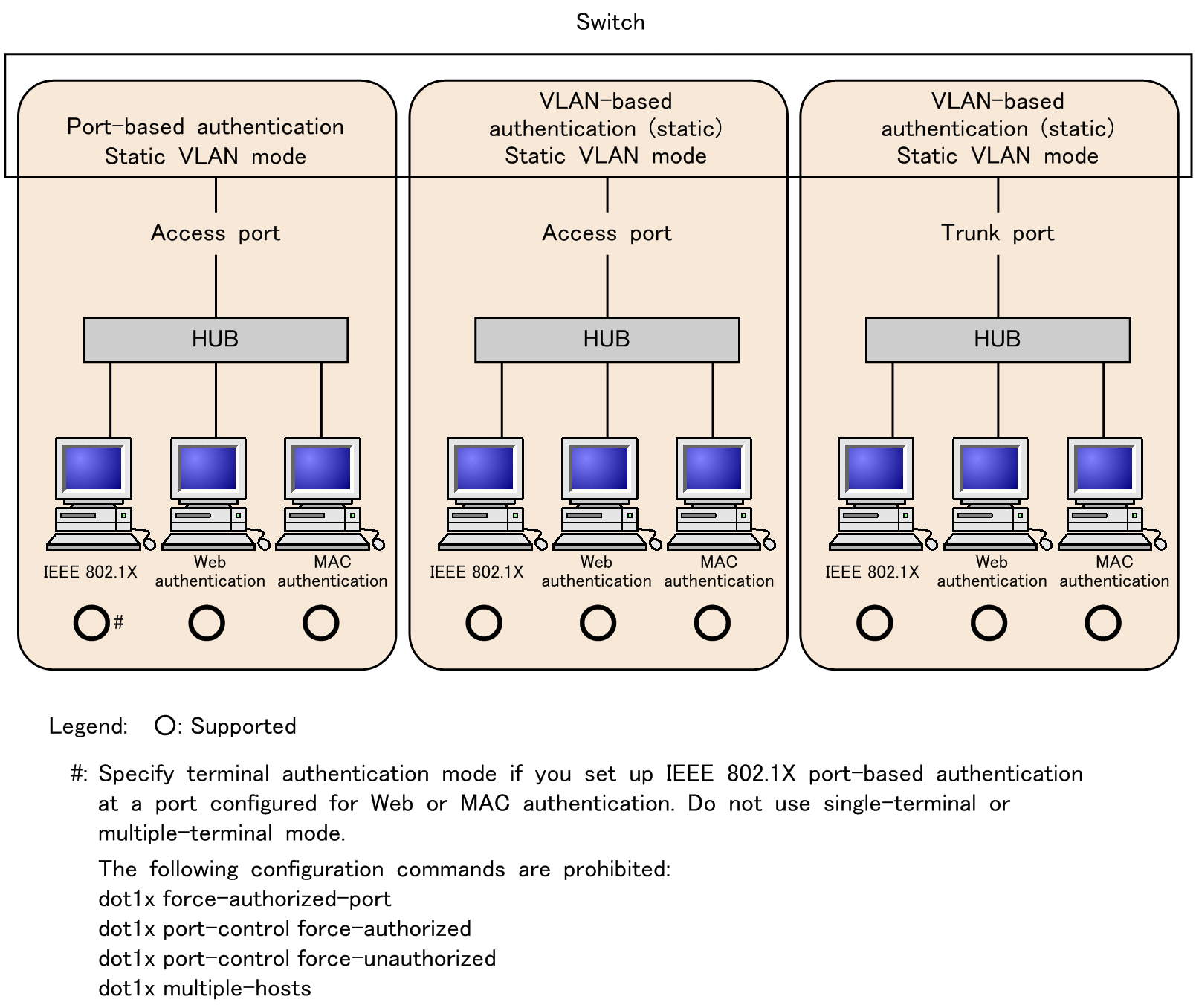

Figure 5-1: Coexistence of Fixed VLAN Modes on the Same Port

Table 5-5: Fixed VLAN for the same port
Port type	IEEE802.1X		Web Authentication (fixed VLAN mode)	MAC-based Authentication (fixed VLAN mode)
Port type	Port-based authentication	VLAN-based authentication (static)	Web Authentication (fixed VLAN mode)	MAC-based Authentication (fixed VLAN mode)
Access port	OK^#1	-	OK	OK
Access port	-	OK	OK	OK
Channel group port (access port)	OK	NG	-	-
Channel group port (access port)	-	OK	-	-
Trunk port	-	OK^#2	OK	OK
Channel group port (trunk port)	-	OK^#2	-	-
All other cases	-	-	-	-

Legend

OK: Supported

NG: Not supported, but can be specified in the device configuration

-:Cannot be set in the configuration

Note #1

You must use terminal authentication mode if you set up IEEE 802.1X port-based authentication for a port that has Web authentication and MAC-based authentication configured. (Do not use single-terminal or multiple-terminal mode.)

Omit the following configuration commands:

dot1x force-authorized-port

dot1x port-control force-authorized

dot1x port-control force-unauthorized

dot1x multiple-hosts

Note #2

When VLANs that do and do not require authentication are assigned to the same port, terminals connected to that port will be unable to access the non-authenticating VLANs. You can overcome this limitation by using the authentication-exempted port option.

Example of interpreting interoperability tables:

When the connection target is an access port, you can use IEEE 802.1X port-based authentication, Web authentication (fixed VLAN mode), and MAC-based authentication (fixed VLAN mode) concurrently on the same port. Alternatively, you can use IEEE 802.1X VLAN-based authentication (static), Web authentication (fixed VLAN mode), and MAC-based authentication (fixed VLAN mode) on the same port.

(2) Coexistence of Dynamic VLAN Modes on the Same Port

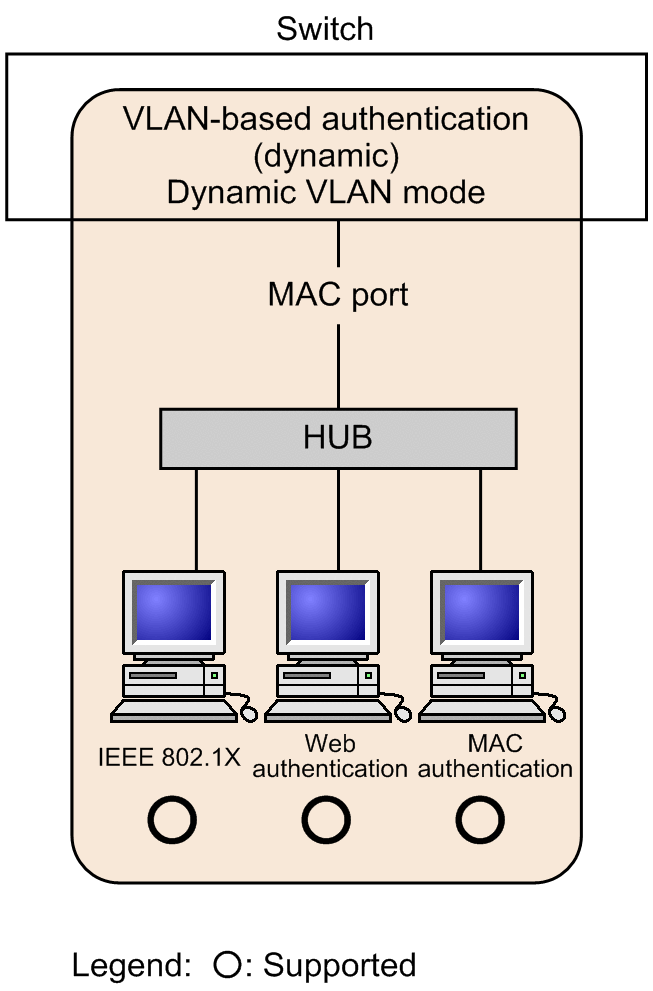

Figure 5-2: Interoperability of dynamic VLAN on the same port

Table 5-6: Interoperability of dynamic VLAN on the same port
Port type	IEEE802.1X VLAN-based authentication (dynamic)	Web Authentication (dynamic VLAN mode)	MAC-based Authentication (dynamic VLAN mode)
MAC port	OK	OK	OK
All other cases	NG	NG	NG

Legend: OK: Operable; NG: Inoperable

(3) Coexistence of dynamic VLAN mode and fixed VLAN mode on the same port

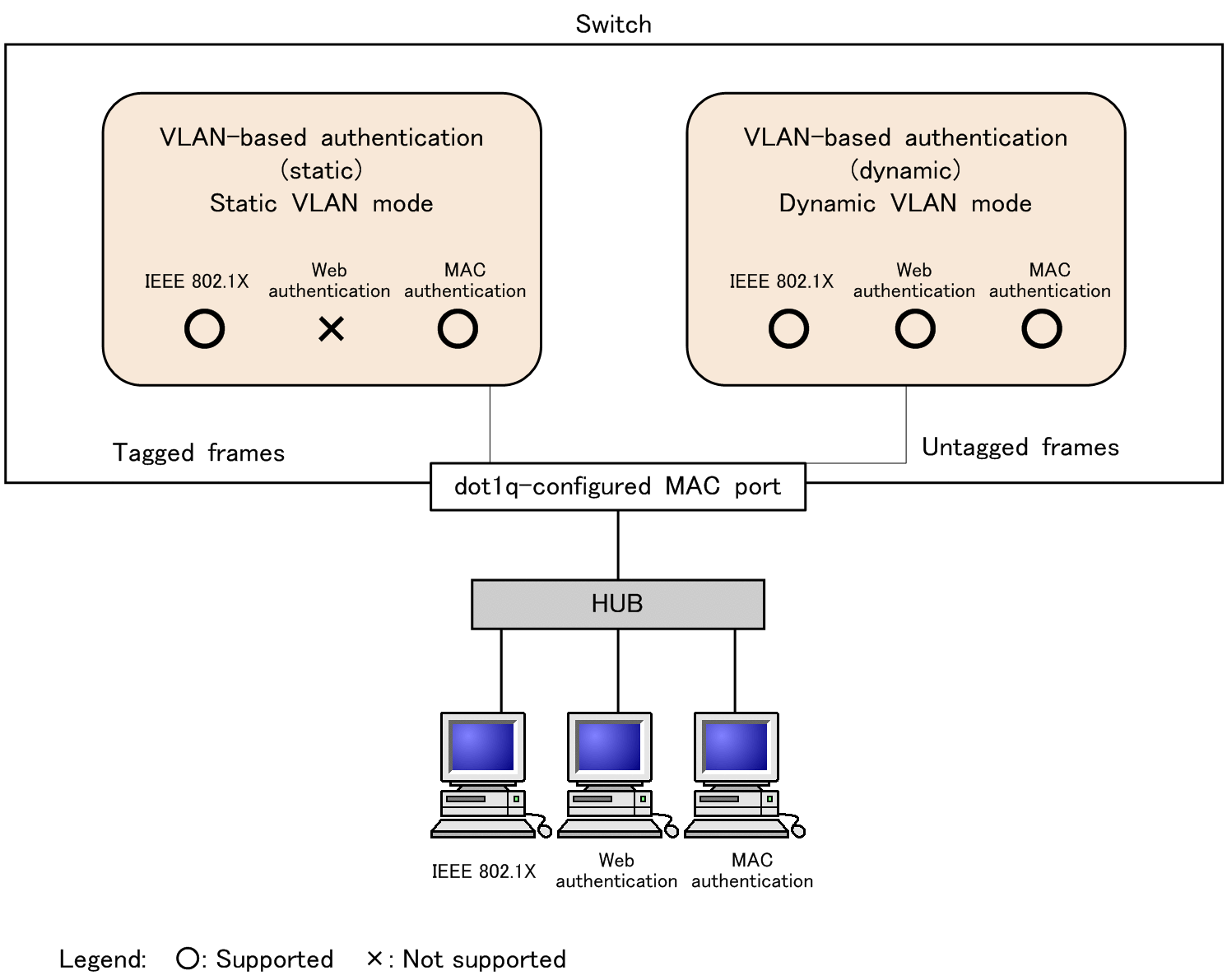

Figure 5-3: Combination of dynamic VLAN mode and fixed VLAN mode for the same port

Table 5-7: Combination of dynamic VLAN mode and fixed VLAN mode for the same port
Port type	Type of received frames	IEEE802.1X		Web Authentication		MAC-based Authentication
Port type	Type of received frames	VLAN-based authentication (static)	VLAN-based authentication (dynamic)	Fixed VLAN mode	Dynamic VLAN mode	Fixed VLAN mode	Dynamic VLAN mode
MAC port configured with dot1q	Tagged frame	OK^#1	NG	NG	NG	OK	NG
MAC port configured with dot1q	Untagged frame	NG	OK	OK^#2	OK	OK^#2	OK

Legend: OK: Operable; NG: Inoperable

Note #1: When VLANs that do and do not require authentication are assigned to the same port, terminals connected to that port will be unable to access the non-authenticating VLANs. You can overcome this limitation by using the authentication-exempted port option.
Note #2: When using RADIUS authentication, if the RADIUS server does not indicate which VLAN a terminal should attach to after authentication, the terminal attaches to the native VLAN as a member of a fixed VLAN. However, when a terminal is moved to a different port, the destination port operates in dynamic VLAN mode.

(4) Coexistence of Legacy Mode on the Same Port

Table 5-8: Legacy modes on the same port
Port type	IEEE802.1X VLAN-based authentication (dynamic)	Web Authentication (legacy mode)	MAC-based Authentication (all modes)
MAC port	OK	OK	NG
All other cases	NG	NG	NG

Legend: OK: Operable; NG: Inoperable
