30.1.4 Prohibited configurations
- <Structure of this section>
(1) Number of devices per site

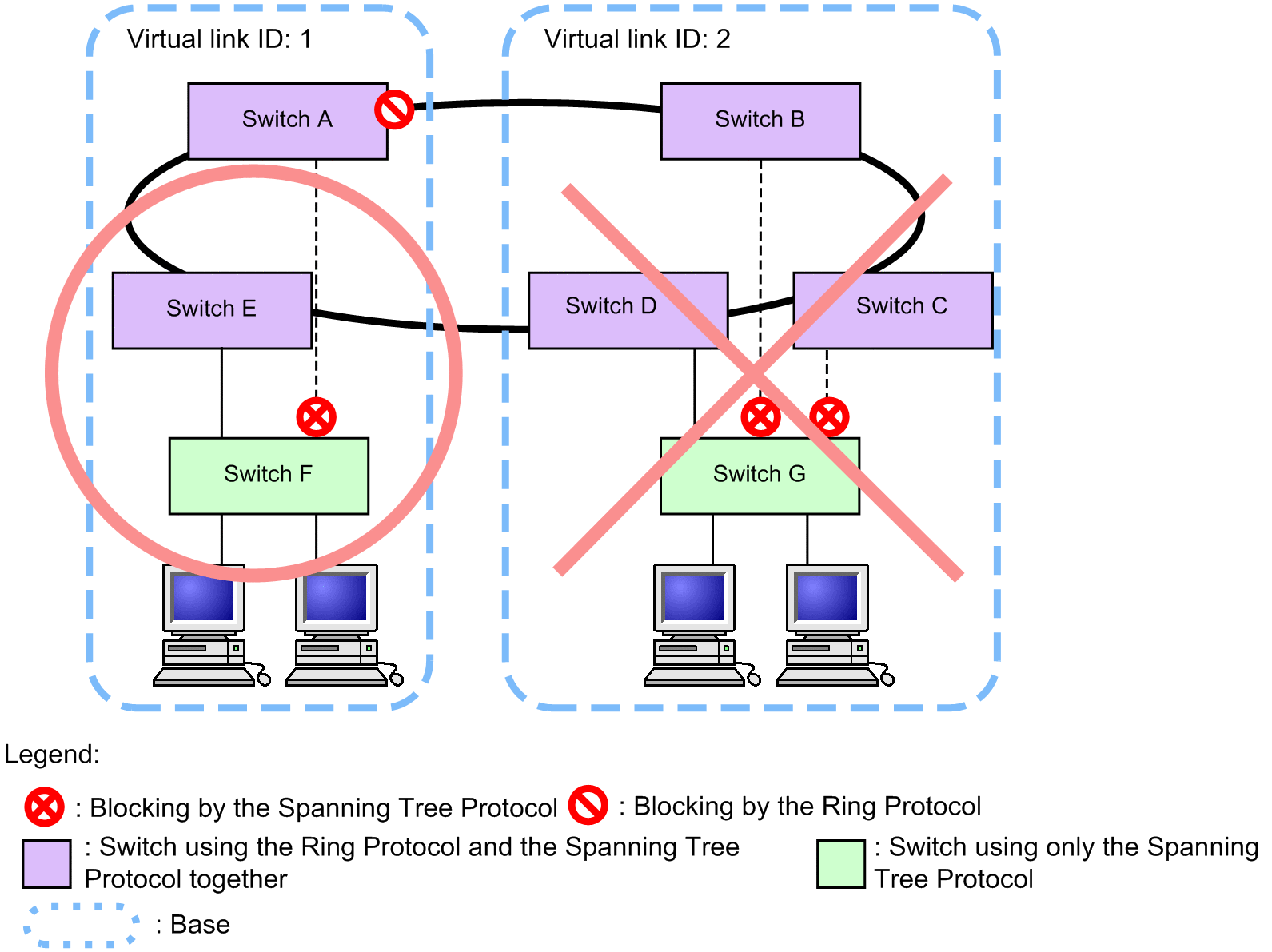

Two Switches that use the Ring Protocol and a Spanning Tree Protocol together can be placed per base. A base cannot be configured with three or more switches. The following figure shows a prohibited configuration for virtual links.
|
|
![[Figure Data]](./GRAPHICS/ZU122070.GIF)
