26.1.10 Behavior in a stack configuration

VXLAN feature also supports stacked configurations. The following figure shows an example of using VXLAN in a stacked configuration.

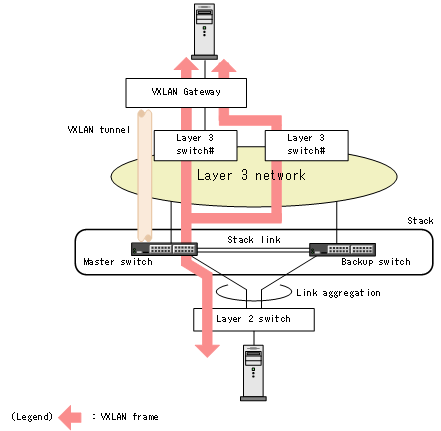

Figure 26-7: Example of using VXLAN in a stacked configuration

Note: Layer 3 switch is equal cost multi-path

When using VXLAN in a stacked configuration, link aggregation is used to connect VXLAN Access ports. VXLAN Network port uses the equal-cost multi-path function.
