8.1.4 Deleting a member switch (backup switch)

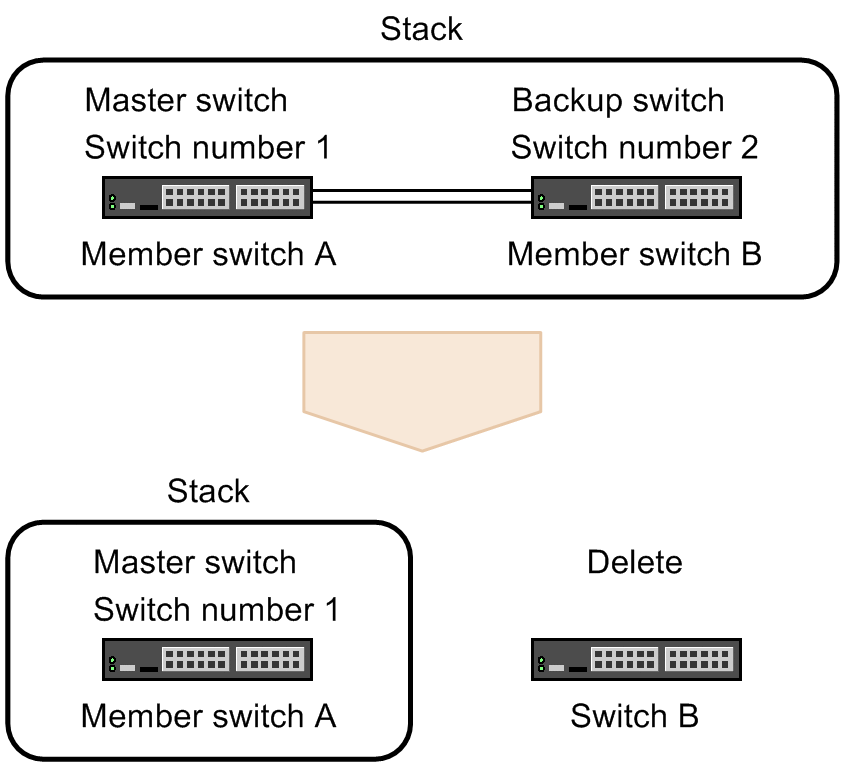

Remove member switch B from the stack consisting of member switch A, which acts as the master switch, and member switch B, which acts as the backup switch, as shown in the following figure.
|
The following table describes the procedure for deleting a member switch (backup switch).
Operation Flow and Description |
Setting object |
---|---|
Equipment B (member switch B) |
|
(2) Deleting member switch B configuration
|
Member Switch A |
- <Structure of this section>
(1) Stopping member switch B
Log in to member switch B and stop member switch B.
[Procedure]
-
> reload stop
Terminate member switch B.
You can also stop member switch B from member switch A, which is the master switch. In this case, log in to member switch A and execute the following command.
> reload switch 2 stop
-
Turn off the power of member switch B to delete the switch from a stack configuration.
(2) Deleting member switch B configuration
Deletes the configuration of the deleted member switch B from the master switch, member switch A.
- Points to note
-
When a member switch B model is deleted from the configuration of member switch A, the configuration of the corresponding Ethernet interface is also deleted.
Command examples
-
(config)# no switch 2 provision
Deletes the model with switch number 2. When a model is deleted, the configuration of the Ethernet interface corresponding to the specified model is also deleted.
-
(config)# no switch 2 priority
Deletes the master election priority of switch number 2.
-
(config)# save
(config)# exit
Saves the configuration and returns to administrator mode from configuration command mode.
