31.1.4 Prohibited configuration

(1) Number of devices per site

Two Switches that use the Ring Protocol and a Spanning Tree Protocol together can be placed per base. A base cannot be configured with three or more switches. The following figure shows a prohibited configuration for virtual links.

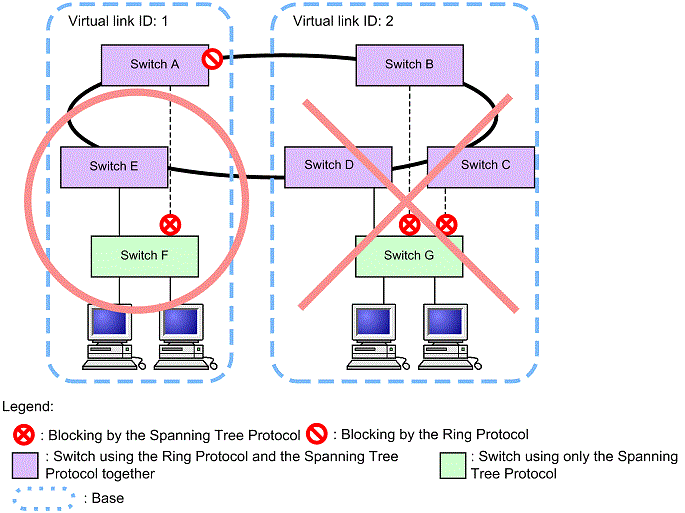

Figure 31-8: Prohibited configuration of virtual links
