21.2.2 Script execution flow

The following figure shows the procedure for executing scripts on the Switch.

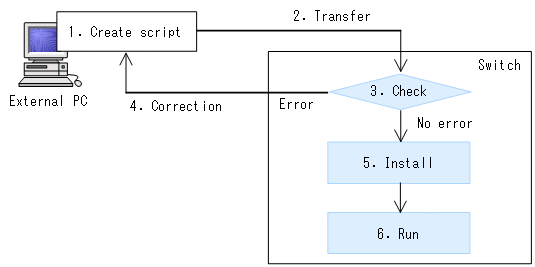

Figure 21-4: Flow of script execution

1. Create a scripting in the external PC.

2. Transfer the created script to the Switch.

3. Use the functions in the Switch to check the health of the script.

4. If the script is unhealthy, fix the script with an external PC.

5. If the script is normal, install the script on the Switch.

6. Run the installed script.
