16.1.1 Overview

Zero-touch provisioning works with AX-Network-Manager that include DHCP servers, TFTP servers, and monitoring servers, and automatically configures device data, including software, to the corresponding devices.

When the power is turned ON for a device that was replaced due to a fault or some other reason, the device information is automatically acquired from AX-Network-Manager and reflected in the device. This allows device replacement and restoration of device information without using a console or MC.

The following figure outlines the operation of zero-touch provincing.

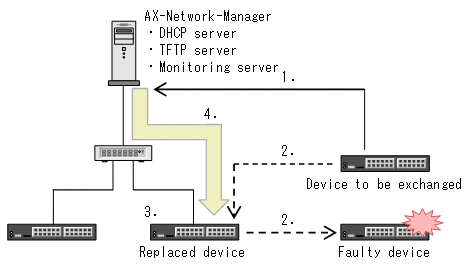

Figure 16-1: Overview of zero touch provisioning operation

1. Registering information about the device to be replaced

2. Replace with the failed device

3. Turn ON the replaced device.

4. Restoring Device Information to a Replaced Device

The device information of the devices in the system is backed up by AX-Network-Manager and managed as a file.

Zero-touch provisioning operates when the device is started with the configuration command system zero-touch-provisioning set and saved. System zero-touch-provisioning instruction is enabled by default. If you do not want to use this function, use the configuration command no system zero-touch-provisioning to remove it.
