24.1.4 VLAN priorities

<Structure of this section>

(1) Precedence of VLAN Determination for Frame Reception

When a frame is received, its VLAN is determined. The following table describes the priority for determining the VLAN.

Table 24-4 Priority order of VLAN determination
Port type	Priority
Access port	Port VLAN
Protocol port	Protocol VLAN > port VLAN (native VLAN)
MAC port	MAC VLAN > port VLAN (native VLAN)
Trunk port	VLAN tag > port VLAN (native VLAN)
Tunneling port	Port VLAN

The following figure shows the algorithm for determining the VLAN.

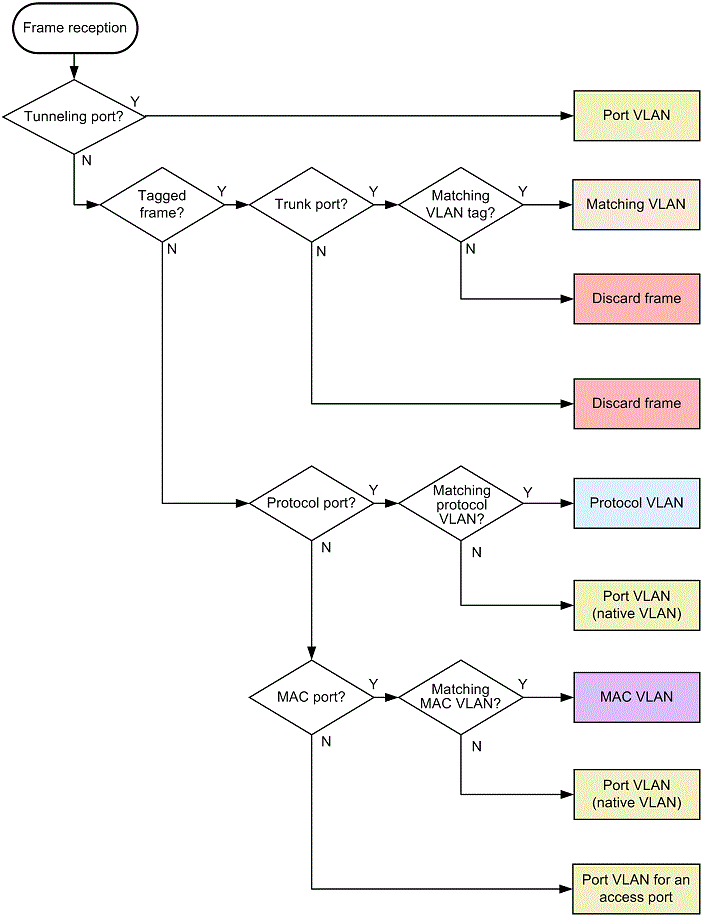

Figure 24-1 VLAN determination algorithm
