15.1.1 Overview

Software update means updating an older version of your software to a later version. To update the software, transfer the update file from the remote operation terminal or MC to the Switch and execute the operation command ppupdate. When updating, the device management configuration and user information (user account, password, etc.) are inherited as is.

<Structure of this section>

(1) Update from a remote operation terminal
(2) MC update

(1) Update from a remote operation terminal

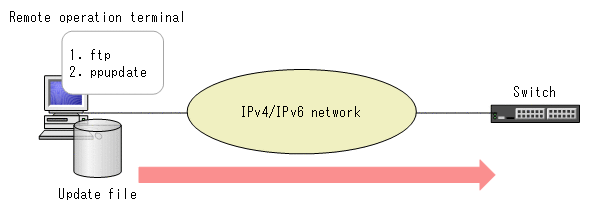

The following figure shows the flow of updating from a remote operation terminal such as a PC.

Figure 15-1: Flow of updating from a remote operation terminal

Use ftp to transfer the update file from the remote operation terminal to the Switch.
After logging in to the Switch, execute the update command (ppupdate).

(2) MC update

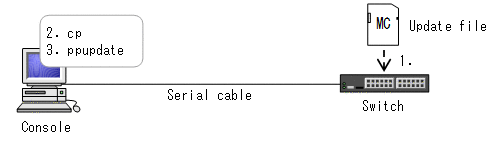

The following figure shows the flow of updating using MC.

Figure 15-2 Flow to be updated using MC

Insert MC containing the update file into the server.
Copy (cp) the update file from MC to the Switch.
After logging in to the Switch, execute the update command (ppupdate).
