運用ガイド
次に示す手順で確認してください。
- コンフィグレーションにエントリ数が設定されていることを確認してください。
図8-34 コンフィグレーション表示例17
(config)# show netflow netflow yes sample 2048 entries 0 1000 ← NetFlow統計を行いたいPRU番号が設定されていること flow-export-version 5 destination 172.16.178.2 udp 1234 port 1/1-2 ! (config)#図8-35 show netflowコマンドの実行結果
> show netflow Progress time from NetFlow statistics cleared: 0:02:56 PRU0: Active Received Flows : 0 Dropped Flows : 0 Overflow Entries : 0 Used Entries : 0 Un-used Entries : 1000 PRU1: Active(No Entry) ←No Entryが表示されていませんか? Received Flows : 0 Dropped Flows : 0 Overflow Entries : 0 Used Entries : 0 Un-used Entries : 0 Flow export Version: 5, Service status: enable Active Timeout: 30 minutes, Inactive Timeout: 15 seconds Collector: 172.16.178.2 udp: 1234, Source: 10.1.1.10 Send Flows : 0 Discard Flows : 0 Send UDP Packets : 0 Discard UDP Packets : 0 (以下省略)- PRUの状態を確認してください。
図8-36 show pru informationコマンドの実行結果
> show pru information 2005/02/01 13:58:56 PRU 0 : disconnected ←運用停止中になっていませんか? PRU 1 : PRU-B2 connected average: 0% Corrected RCAM data: 0 Corrected FCAM data: 0 PRU 2 : disconnected PRU 3 : disconnected- 使用エントリ数を確認してください。

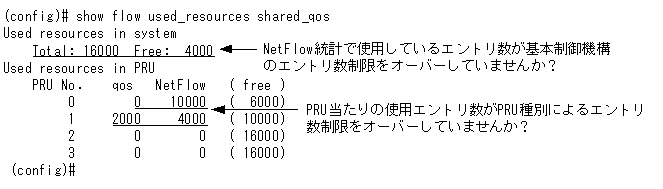

図8-37 show flow used_resources shared_qosコマンドの実行結果
図8-38 コンフィグレーション表示例18
(config)# show netflow netflow yes sample 2048 entries 0 10000 entries 1 4000 flow-export-version 5 destination 172.16.178.2 udp 1234 port 1/1-2 ! (config)#Used resource in systemにおける使用可能エントリ数は,BCU搭載メモリ量によって変わります。詳細については,AX7800Rの場合,「解説書 Vol.1 3.2.1 AX7800Rの収容条件【AX7800R】」の「解説書 Vol.1 3.2.1(4) 基本制御機構(BCU)のメモリ量と収容経路エントリ数」を参照してください。
AX7700Rの場合,「解説書 Vol.1 3.2.2 AX7700Rの収容条件【AX7700R】」の「解説書 Vol.1 3.2.2(4) 基本制御機構(BCU)のメモリ量と収容経路エントリ数」を参照してください。
Used resource in PRUにおける使用可能エントリ数については,AX7800Rの場合,「解説書 Vol.1 3.2.1 AX7800Rの収容条件【AX7800R】」の「解説書 Vol.1 3.2.1(12)(d) NetFlow統計のエントリ数」を参照してください。
AX7700Rの場合,「解説書 Vol.1 3.2.2 AX7700Rの収容条件【AX7700R】」の「解説書 Vol.1 3.2.2(11)(d) NetFlow統計のエントリ数」を参照してください。
