このマニュアルはAX7800RおよびAX7700Rモデルを対象に記載しています。また,AX7800RのソフトウェアおよびAX7700Rのソフトウェア,いずれもVer. 10.10の機能について記載しています。ソフトウェア機能は,基本ソフトウェアOS-Rおよび各種オプションライセンスによってサポートする機能について記載します。

また,このマニュアルは前回のVer. 10.10対応マニュアル発行以降の追加および変更を記載し,Ver. 10.10 Rev.1としたものです。

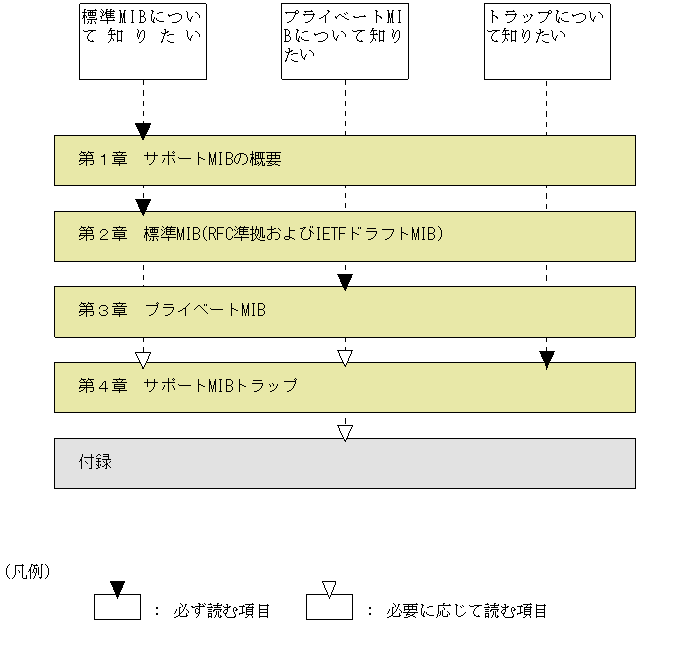

第1章 サポートMIBの概要

第2章 標準MIB(RFC準拠およびIETFドラフトMIB)

第3章 プライベートMIB

第4章 サポートMIBトラップ

付録A プライベートMIB名称とオブジェクトID値
