メッセージ・ログレファレンス

[目次][索引][前へ][次へ]


はじめに

対象製品およびソフトウェアバージョン

このマニュアルはAX7800RおよびAX7700Rモデルを対象に記載しています。また,AX7800RのソフトウェアおよびAX7700Rのソフトウェア,いずれもVer. 10.10の機能について記載しています。ソフトウェア機能は,基本ソフトウェアOS-Rおよび各種オプションライセンスによってサポートする機能について記載します。

また,このマニュアルは前回のVer. 10.10対応マニュアル発行以降の追加および変更を記載し,Ver. 10.10 Rev.1としたものです。

操作を行う前にこのマニュアルをよく読み,書かれている指示や注意を十分に理解してください。また,このマニュアルは必要なときにすぐ参照できるよう使いやすい場所に保管してください。

なお,このマニュアルでは特に断らないかぎりAX7800RとAX7700Rに共通の機能について記載しますが,どちらかの機種固有の機能については以下のマークで示します。

【AX7800R】
AX7800Rについての記述です。

【AX7700R】
AX7700Rについての記述です。

また,このマニュアルでは特に断らないかぎり基本ソフトウェアOS-Rの機能について記載しますが,各種オプションライセンスでサポートする機能については以下のマークで示します。

【OP-ADV】
オプションライセンスOP-ADVについての記述です。

【OP-BFD】
AX7800RのオプションライセンスOP-BFDについての記述です。

【OP-BGP】
オプションライセンスOP-BGPについての記述です。

【OP-F64K】
オプションライセンスOP-F64Kについての記述です。

【OP-ISIS】
オプションライセンスOP-ISISについての記述です。

【OP-MBSE】
オプションライセンスOP-MBSEについての記述です。

【OP-MLT】
オプションライセンスOP-MLTについての記述です。

【OP-MPLS】
オプションライセンスOP-MPLSについての記述です。

このマニュアルの訂正について

このマニュアルに記載の内容は,ソフトウェアと共に提供する「リリースノート」および「マニュアル訂正資料」で訂正する場合があります。

対象読者

AX7800RまたはAX7700Rを利用したネットワークシステムを構築し,運用するシステム管理者の方を対象としています。

また,次に示す知識を理解していることを前提としています。

マニュアルの構成

このマニュアルは,次に示す四つの章から構成されています。

第1章 障害の特定
本装置での障害の特定方法について説明しています。

第2章 ルーティングプロトコルのイベント情報
ルーティングプロトコルのイベント情報の内容について説明しています。

第3章 装置関連の障害およびイベント情報
装置関連の障害およびイベント情報の内容について説明しています。

第4章 システム操作パネルの操作ログ情報
システム操作パネルの操作ログ情報の内容について説明しています。

読書手順

このマニュアルは次の手順でお読みいただくことをお勧めします。

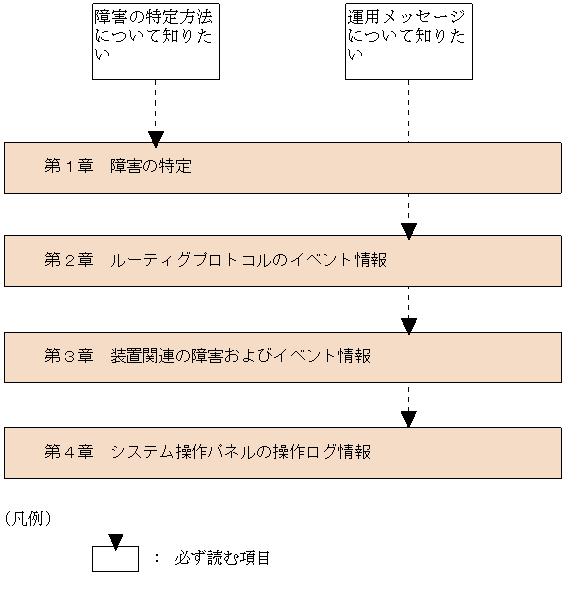

[図データ]

このマニュアルのURL

このマニュアルの内容は下記URLに掲載しておりますので,あわせてご利用ください。

http://www.alaxala.com

マニュアルの読書手順

本装置の導入,セットアップ,日常運用までの作業フローに従って,それぞれの場合に参照するマニュアルを次に示します。

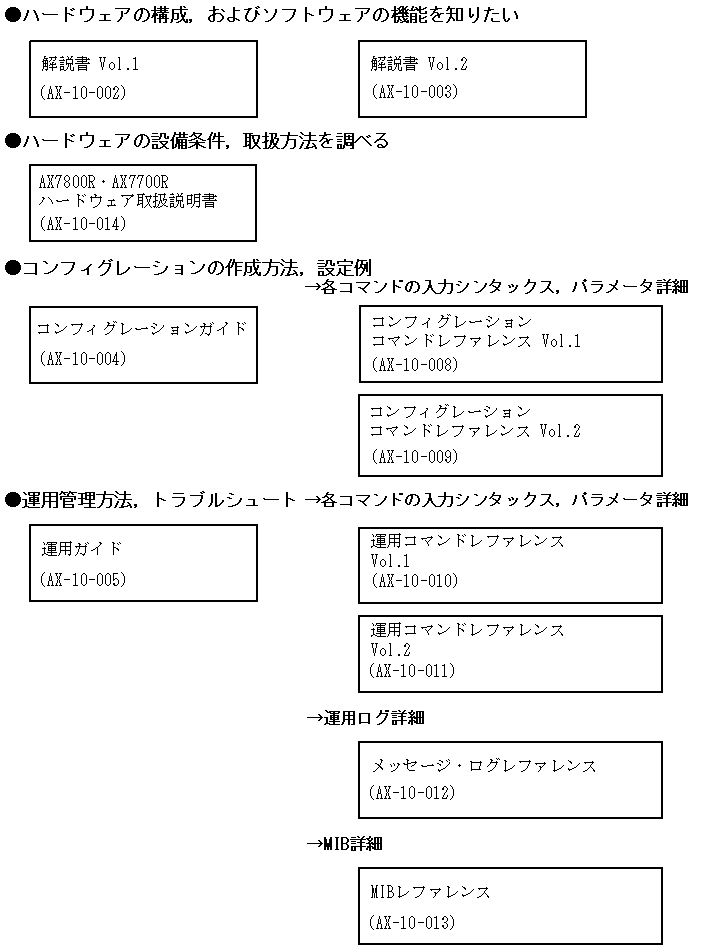

[図データ]

このマニュアルでの表記


ABR         Available Bit Rate
AC          Alternating Current
ACK         ACKnowledge
ADSL        Asymmetric Digital Subscriber Line
ALG         Application Level Gateway
ANSI        American National Standards Institute
ARP         Address Resolution Protocol
AS          Autonomous System
ATM         Asynchronous Transfer Mode
AUX         Auxiliary
BCU         Basic management Control module
BFD         Bidirectional Forwarding Detection
BGP         Border Gateway Protocol
BGP4        Border Gateway Protocol - version 4
BGP4+       Multiprotocol Extensions for Border Gateway Protocol - version 4
bit/s       bits per second     *bpsと表記する場合もあります。
BPDU        Bridge Protocol Data Unit
BRI         Basic Rate Interface
CBR         Constant Bit Rate
CDP         Cisco Discovery Protocol
CIDR        Classless Inter-Domain Routing
CIR         Committed Information Rate
CLNP        ConnectionLess Network Protocol
CLNS        ConnectionLess Network System
CONS        Connection Oriented Network System
CP          multi layer Control Processor
CRC         Cyclic Redundancy Check
CSMA/CD     Carrier Sense Multiple Access with Collision Detection
CSNP        Complete Sequence Numbers PDU
DA          Destination Address
DC          Direct Current
DCE         Data Circuit terminating Equipment
DHCP        Dynamic Host Configuration Protocol
Diff-serv   Differentiated Services
DIS         Draft International Standard/Designated Intermediate System
DLCI        Data Link Connection Identifier
DNS         Domain Name System
DR          Designated Router
DSAP        Destination Service Access Point
DSCP        Differentiated Services Code Point
DTE         Data Terminal Equipment
DVMRP       Distance Vector Multicast Routing Protocol
E-Mail      Electronic Mail
EFM         Ethernet in the First Mile
ES          End System
FCS         Frame Check Sequence
FDB         Filtering DataBase
FR          Frame Relay
FTTH        Fiber To The Home
GBIC        GigaBit Interface Converter
GFR         Guaranteed Frame Rate
HDLC        High level Data Link Control
HMAC        Keyed-Hashing for Message Authentication
IANA        Internet Assigned Numbers Authority
ICMP        Internet Control Message Protocol
ICMPv6      Internet Control Message Protocol version 6
ID          Identifier
IEC         International Electrotechnical Commission
IEEE        Institute of Electrical and Electronics Engineers, Inc.
IETF        the Internet Engineering Task Force
IGMP        Internet Group Management Protocol
IIH         IS-IS Hello
IP          Internet Protocol
IPCP        IP Control Protocol
IPv4        Internet Protocol version 4
IPv6        Internet Protocol version 6
IPV6CP      IP Version 6 Control Protocol
IPX         Internetwork Packet Exchange
IS          Intermediate System
IS-IS       Information technology - Telecommunications and Information
            exchange between systems - Intermediate system to Intermediate
            system Intra-Domain routeing information exchange protocol for use
            in conjunction with the Protocol for providing the
            Connectionless-mode Network Service (ISO 8473)
ISDN        Integrated Services Digital Network
ISO         International Organization for Standardization
ISP         Internet Service Provider
LAN         Local Area Network
LCP         Link Control Protocol
LED         Light Emitting Diode
LLC         Logical Link Control
LLDP        Link Layer Discovery Protocol
LLQ+3WFQ    Low Latency Queueing + 3 Weighted Fair Queueing
LSP         Label Switched Path
LSP         Link State PDU
LSR         Label Switched Router
MAC         Media Access Control
MC          Memory Card
MD5         Message Digest 5
MDI         Medium Dependent Interface
MDI-X       Medium Dependent Interface crossover
MIB         Management Information Base
MPLS        Multi-Protocol Label Switching
MRU         Maximum Receive Unit
MTU         Maximum Transfer Unit
NAK         Not AcKnowledge
NAS         Network Access Server
NAT         Network Address Translation
NCP         Network Control Protocol
NDP         Neighbor Discovery Protocol
NET         Network Entity Title
NIF         Network Interface board
NLA ID      Next-Level Aggregation Identifier
NPDU        Network Protocol Data Unit
NSAP        Network Service Access Point
NSSA        Not So Stubby Area
NTP         Network Time Protocol
OADP        Octpower Auto Discovery Protocol
OAM         Operations, Administration, and Maintenance
OSI         Open Systems Interconnection
OSINLCP     OSI Network Layer Control Protocol
OSPF        Open Shortest Path First
OUI         Organizationally Unique Identifier
PAD         PADding
PC          Personal Computer
PCI         Protocol Control Information
PDU         Protocol Data Unit
PICS        Protocol Implementation Conformance Statement
PID         Protocol IDentifier
PIM         Protocol Independent Multicast
PIM-DM      Protocol Independent Multicast-Dense Mode
PIM-SM      Protocol Independent Multicast-Sparse Mode
POH         Path Over Head
POS         PPP over SONET/SDH
PPP         Point-to-Point Protocol
PPPoE       PPP over Ethernet
PRI         Primary Rate Interface
PRU         Packet Routing Module
PSNP        Partial Sequence Numbers PDU
PVC         Permanent Virtual Channel (Connection)/Permanent Virtual Circuit
QoS         Quality of Service
RA          Router Advertisement
RADIUS      Remote Authentication Dial In User Service
RDI         Remote Defect Indication
REJ         REJect
RFC         Request For Comments
RIP         Routing Information Protocol
RIPng       Routing Information Protocol next generation
RM          Routing Manager
RMON        Remote Network Monitoring MIB
RPF         Reverse Path Forwarding
RQ          ReQuest
SA          Source Address
SDH         Synchronous Digital Hierarchy
SDU         Service Data Unit
SEL         NSAP SELector
SFD         Start Frame Delimiter
SFP         Small Form factor Pluggable
SMTP        Simple Mail Transfer Protocol
SNAP        Sub-Network Access Protocol
SNMP        Simple Network Management Protocol
SNP         Sequence Numbers PDU
SNPA        Subnetwork Point of Attachment
SOH         Section Over Head
SONET       Synchronous Optical Network
SOP         System Operational Panel
SPF         Shortest Path First
SSAP        Source Service Access Point
TA          Terminal Adapter
TACACS+     Terminal Access Controller Access Control System Plus
TCP/IP      Transmission Control Protocol/Internet Protocol
TLA ID      Top-Level Aggregation Identifier
TLV         Type, Length, and Value
TOS         Type Of Service
TPID        Tag Protocol Identifier
TTL         Time To Live
UBR         Unspecified Bit Rate
UDLD        Uni-Directional Link Detection
UDP         User Datagram Protocol
UPC         Usage Parameter Control
UPC-RED     Usage Parameter Control - Random Early Detection
VBR         Variable Bit Rate
VC          Virtual Channel/Virtual Call/Virtual Circuit
VCI         Virtual Channel Identifier
VLAN        Virtual LAN
VP          Virtual Path
VPI         Virtual Path Identifier
VPN         Virtual Private Network
VRRP        Virtual Router Redundancy Protocol
WAN         Wide Area Network
WDM         Wavelength Division Multiplexing
WFQ         Weighted Fair Queueing
WRED        Weighted Random Early Detection
WS          Work Station
WWW         World-Wide Web
XFP         10 gigabit small Form factor Pluggable
