show environment
筐体のNIF,ファン,電源,温度の状態と累計稼働時間を表示します。
[入力形式]
show environment [temperature-logging]
[入力モード]
一般ユーザモードおよび装置管理者モード
[パラメータ]
- temperature-logging
-
集計している装置の温度履歴情報を表示します。
- 本パラメータ省略時の動作
-
装置の環境状態を表示します。
[スタック構成時の運用]
マスタスイッチからスタックを構成しているすべてのメンバスイッチを対象にコマンドを実行します。
なお,remote commandコマンドも使用できます。
remote command {<switch no.> | all} show environment [temperature-logging]
[実行例1]
運用状態の表示例を示します。
> show environment Date 20XX/08/10 17:41:42 UTC Power slot 1 : PS-M(AC), Direction = F-to-R Power slot 2 : PS-M(DC), Direction = F-to-R Fan slot 1 : FAN-M, Direction = F-to-R Fan slot 2 : FAN-M, Direction = F-to-R Fan slot 3 : FAN-M, Direction = F-to-R Fan environment Power slot 1 : Fan1(1) = active Speed = normal Power slot 2 : Fan2(1) = active Speed = normal Fan slot 1 : Fan3(1) = active Speed = normal Fan slot 2 : Fan4(1) = active Speed = normal Fan slot 3 : Fan5(1) = active Speed = normal Fan mode : 1 (silent) Power environment Power slot 1 : active Power slot 2 : active Temperature environment Main : 27 degrees C NIF1 : notconnect NIF2 : 30 degrees C NIF3 : notconnect NIF4 : 33 degrees C Warning level : normal Accumulated running time Main : total : 20 days and 0 hours. critical : 0 days and 0 hours.. Power slot 1 : total : 10 days and 12 hours. critical : 0 days and 0 hours. Power slot 2 : total : 9 days and 23 hours. critical : 0 days and 0 hours. Fan slot 1 : total : 3 days and 6 hours. critical : 0 days and 18 hours. Fan slot 2 : total : 3 days and 6 hours. critical : 0 days and 18 hours. Fan slot 3 : total : 3 days and 6 hours. critical : 0 days and 18 hours. NIF slot 1 : notconnect NIF slot 2 : total : 1 days and 0 hours. critical : 0 days and 0 hours. NIF slot 3 : notconnect NIF slot 4 : total : 2 days and 6 hours. critical : 0 days and 18 hours. > |
[実行例1の表示説明]
表示項目 |
表示内容 |
表示詳細情報 |
---|---|---|
Power slot 1 |
電源機構種別 |
PS-M(AC):AC電源機構 PS-M(DC):DC電源機構 notconnect:未実装 |
Direction:ファン方向※1 |
F-to-R:Front吸気Rear排気 |
|
Power slot 2 |
電源機構種別 |
PS-M(AC):AC電源機構 PS-M(DC):DC電源機構 notconnect:未実装 |
Direction:ファン方向※1 |
F-to-R:Front吸気Rear排気 |
|
Fan slot |
ファンスロット種別 |
FAN-M:ファンスロット notconnect:未実装 |
Direction:ファン方向※1 |
F-to-R:Front吸気Rear排気 |
|
Fan environment |
||
Power slot |
スロット番号 |
− |
Fan※2 |
ファン動作状態 |
active:稼働中 fault:ファン障害発生中 notconnect:未実装 |
Speed |
ファン回転スピード |
normal:通常回転 high:高速回転 stop:停止状態 --------:未実装 |
Fan slot |
||
Fan※2 |
ファン動作状態 |
active:稼働中 fault:ファン障害発生中 notconnect:未実装 |
Speed |
ファン回転スピード |
normal:通常回転 high:高速回転 stop:停止状態 --------:未実装 |
Fan mode |
ファン運転モード |
1 (silent):静音重視設定 2 (cool):冷却重視設定 |
Power environment |
||
Power slot |
入力電源の状態 |
active:正常供給 fault:供給なし/電圧異常 notconnect:未実装 |
Temperature environment |
温度情報 |
− |
Main |
入気温度情報 |
装置の温度情報を表示 |
NIF |
NIFの温度情報 |
NIFの温度情報を表示 notconnect:未実装 |
Warning level※3 |
運用環境レベル |
normal:正常 caution:注意(高温または低温) |
Accumulated running time※4 |
||
Main |
total:装置の累計稼働時間 critical:45℃以上の環境下での装置の累計稼働時間 |
正常時は累計稼働時間を表示します。 fault:稼働時間読み込み失敗 ****:稼働時間読み込み中 |
Power slot |
total:電源機構の累計稼働時間 critical:45℃以上の環境下での電源機構の累計稼働時間 |
正常時は累計稼働時間を表示します。 notconnect:未実装 fault:稼働時間読み込み失敗 ****:稼働時間読み込み中 |
Fan slot |
total:ファンの累計稼働時間 critical:45℃以上の環境下でのファンの累計稼働時間 |
正常時は累計稼働時間を表示します。 notconnect:未実装 fault:稼働時間読み込み失敗 ****:稼働時間読み込み中 |
NIF slot |
total:NIFの累計稼働時間 critical:45℃以上の環境下でのNIFの累計稼働時間 |
正常時は累計稼働時間を表示します。 notconnect:未実装 fault:稼働時間読み込み失敗 ****:稼働時間読み込み中 |
- 注※1
-
電源機構またはファンスロットが実装されている場合にだけ表示します。
- 注※2
-
FANx(y)のフォーマットでファンの位置情報を記載しています。xの値はファンスロット番号を,yの値はファン番号を示します。このとき,運用ログや筐体に明記されている名称との対応は次の表のようになります。また,筐体位置で示される右面,左面は装置背面から見た場合の位置関係を表します。
表11‒9 ファン番号と運用ログおよび筐体との対応 ユニット
ユニット対応
コマンドおよび運用ログ表示
筐体位置
PS-M
FAN1(1)
背面上電源機構
FAN2(1)
背面下電源機構
FAN-M
FAN3(1)
ファンスロット背面左
FAN4(1)
ファンスロット背面中央
FAN5(1)
ファンスロット背面右
- 注※3
-
入気温度の変移によりWarning levelを表示します。
装置の温度が60℃以上になるとソフトウェアが停止します。なお,NIFの温度情報が60℃以上になると該当するNIFが停止します。

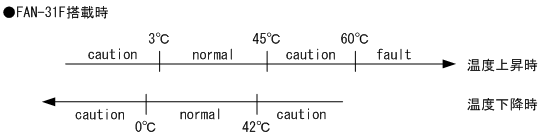

図11‒7 運用環境レベルと温度値 - 注※4
-
累計稼働時間は6時間ごとに各ボードへ情報の更新が行われます。そのため6時間未満の運用を行った場合には,各ボードへ情報の更新がされないため正確な稼働時間とはなりません。
電源投入(累計稼働時間=0)
4時間後(累計稼働時間=4時間,ボードに書き込まれる時間=0時間)
8時間後(累計稼働時間=8時間,ボードに書き込まれる時間=6時間)
13時間後(累計稼働時間=13時間,ボードに書き込まれる時間=12時間)
[実行例2]
平均温度情報表示の実行例を示します。
> show environment temperature-logging Date 20XX/12/30 12:00:00 UTC Date 0:00 6:00 12:00 18:00 20XX/12/30 24.3 24.2 26.0 20XX/12/29 21.8 25.1 26.0 24.0 20XX/12/28 25.6 - 26.0 24.0 20XX/12/27 21.0 - 26.0 24.0 20XX/12/26 24.0 23.5 26.0 24.0 20XX/12/25 22.2 24.9 26.0 24.0 20XX/12/24 - - 26.0 24.0 > |
[実行例2の表示説明]
表示項目 |
表示内容 |
表示詳細情報 |
---|---|---|
Date |
日付 |
− |
0:00 |
当該時間帯の平均温度 |
18:00(前日)〜0:00の平均温度 |
6:00 |
0:00〜6:00の平均温度 |
|
12:00 |
6:00〜12:00の平均温度 |
|
18:00 |
12:00〜18:00の平均温度 |
|
"-" |
ハイフン |
装置未起動(電源OFF,またはシステム時刻変更によって履歴を保持できなかった時間帯) |
" " |
空白 |
温度集計前 |
[通信への影響]
なし
[応答メッセージ]
メッセージ |
内容 |
---|---|
Can't execute for accounts mismatch. |
バックアップスイッチのアカウントが不一致のため,本コマンドを実行できません。アカウントを操作するコマンド(adduser,rmuser,password,clear password)を実行して,アカウントを同期してください。 |
Can't execute. |
コマンドを実行できません。再実行してください。 |
Switch <switch no.> was deleted from stack. |
メンバスイッチはスタック構成から削除されました。 <switch no.>:スイッチ番号 |
[注意事項]
-
温度履歴情報表示は定刻(0時,6時,12時,18時)に更新されます。装置の環境により若干のずれが生じる場合があります。また,温度履歴情報の更新と同時に装置を再起動すると,温度履歴情報の一部が消失する場合があります。
-
温度履歴情報表示は装置の日付が変更された場合,変更前の時刻の翌日の0時に相当する時間に変更後の時刻が反映されます。表示される情報は採取順となるため,時系列で表示されなくなります。
-
累積稼働時間情報の更新と同時に装置を再起動すると,累積稼働時間情報は0時間に戻る場合があります。
