Configuration Guide Vol. 3

31.4.7 Notes on Redundant Routes

Keep in mind that IPv6 multicast packets are not forwarded in redundant configurations such as that shown in the following figure. IPv6 PIM-SIM settings are required for all routers on any redundant routes.

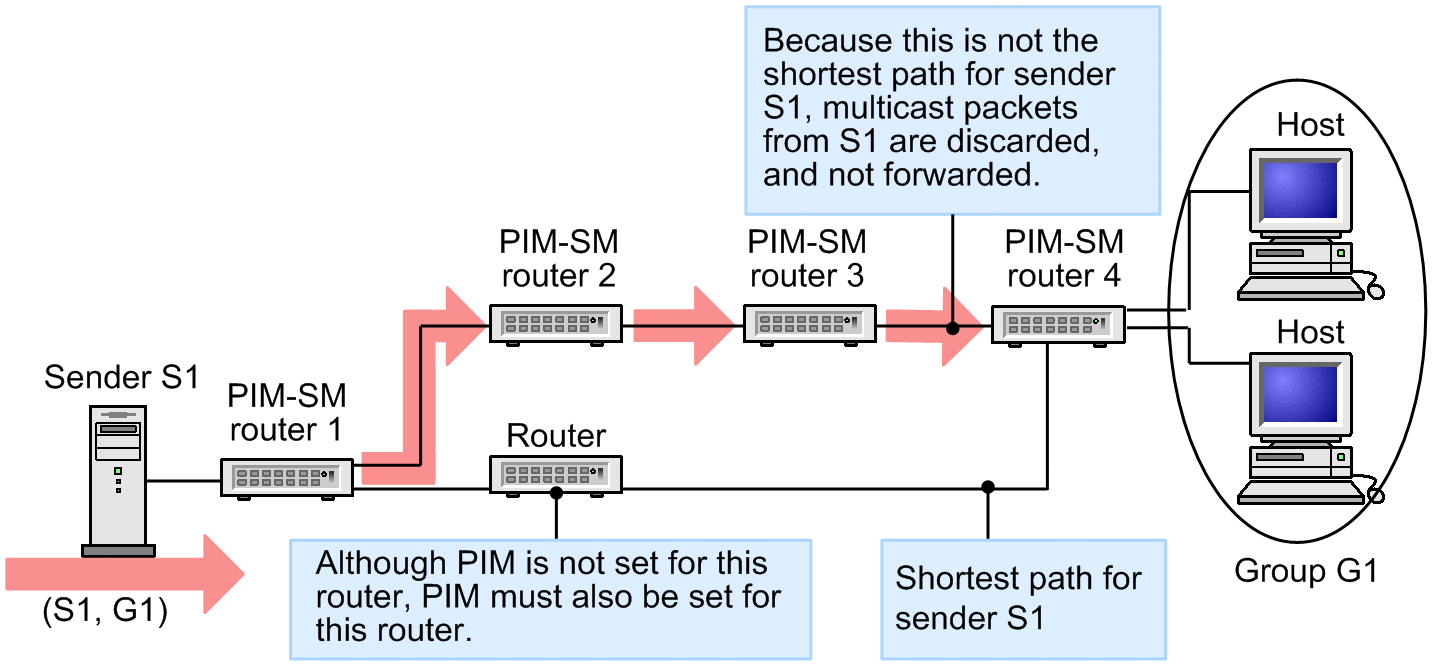

Figure 31-17: Notes on redundant routes

[Figure Data]

[Product name label]
