24.3.2 Handling of Directly Connected Routes

The Switch uses a broadcast interface.

The Switch uses a combination of network prefix (prefix) and prefix length (prefixlen) for the broadcast interface. The following figure illustrates the handling of broadcast-type direct connections.

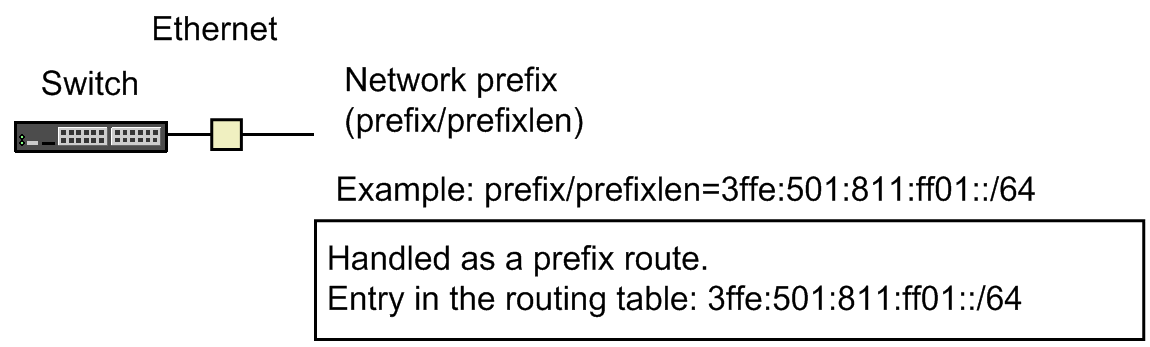

Figure 24-3: Handling of directly connected routes (broadcast type)
