23.2.4 Configuring Dynamic Prefix Provisioning Scope
- Points to note
-
After you configure an IPv6 DHCP address pool, configure an IPv6 DHCP address local pool, from which prefixes are dynamically assigned to clients, and in configuration DHCP mode, specify a range of prefixes to be dynamically distributed.

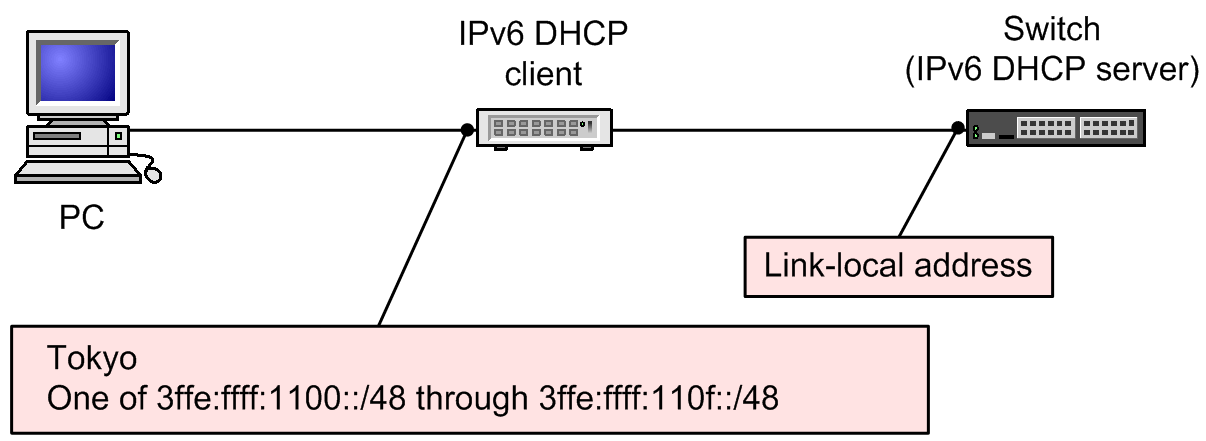

Figure 23-2: Configuration of assigning a prefix dynamically
Command examples
-
(config)# ipv6 local pool Group1Local 3ffe:ffff:1100::/44 48
Sets the prefix to be dynamically distributed
-
(config)# ipv6 dhcp pool Group1
Configures an IPv6 DHCP address pool.
-
(config-dhcp)# prefix-delegation pool Group1Local
(config-dhcp)# exit
Sets the name of the IPv6 DHCP address local pool set in the IPv6 DHCP address local pool configuration.
-
(config)# interface vlan 10
(config-if)# ipv6 dhcp server Group1
(config-if)# exit
Sets the name of the IPv6 DHCP address pool for the VLAN interface.
