16.1.11 Configuring IPv4 PIM-SM in VRF [SL-L3A]

Points to note

To use IPv4 PIM-SM in a VRF, configure the IPv4 multicast routing functionality for the VRF, and configure IPv4 PIM-SM (sparse mode) on the interface of the VRF.

The settings for IPv4 PIM-SM (sparse mode) are specified in interface configuration mode. The following figure shows an example of a IPv4 PIM-SM configuration in which VRF 10 is associated with VPN 2 and IP of VLAN 20 interfaces of VRF 10 is 192.168.20.1/24.

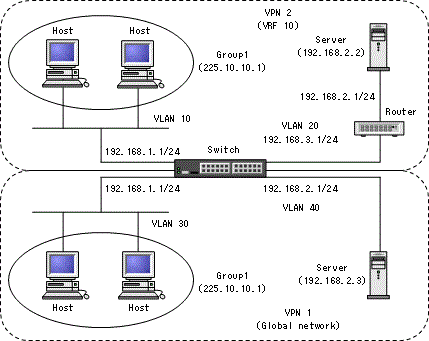

Figure 16-3: Sample IPv4 PIM-SM Configuration in VRF

Command examples

1. (config)# interface vlan 20

   Set VLAN 20.

2. (config-if)# vrf forwarding 10

   Configures VLAN 20 in VRF 10.

3. (config-if)# ip address 192.168.3.1 255.255.255.0

   Sets IP addressing for VLAN 20.

4. (config-if)# ip pim sparse-mode

   (config-if)# exit

   Sets IPv4 PIM-SM for VLAN 20.
