8.3.3 Designing Address Boundaries

When using multiple network address spaces, ensure that the address boundaries are located on the Switch itself, as shown in the figure below. An address boundary is the boundary between network addresses associated with a given natural mask, and differs from the boundary between address classes.

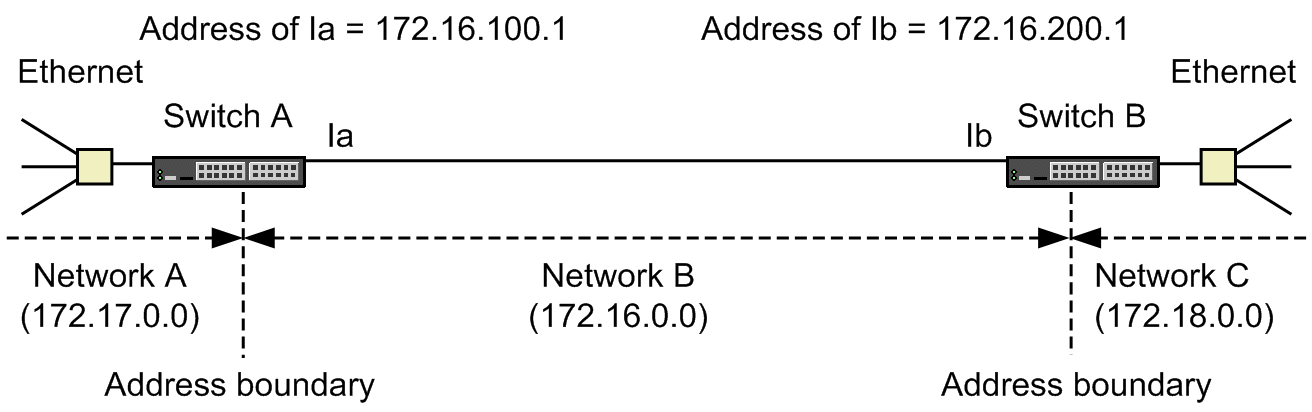

Figure 8-11: Example of normal address boundary design
