26.1.3 E2E-TC operation

When the Switch forwards Sync messages and Delay_Req messages, it adds the relay delay time in the Switch to each message and sends it. Relay delays are not added to additional PTP messaging. The following figure outlines the operation of the Switch in E2E-TC.

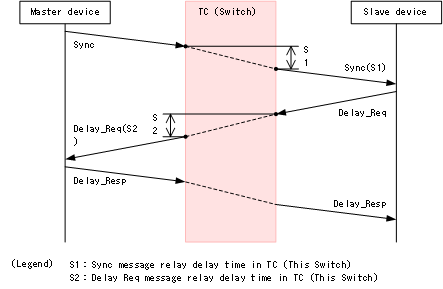

Figure 26-2: Outline of operation of this device in E2E-TC
