26.1.8 VXLAN Access and VXLAN Network ports

VXLAN Access port is the port on the user network.

VXLAN Network port is the port on the Layer 3 network. VXLAN feature supports only IPv4 networks on Layer 3 networks.

The following diagram shows VXLAN Access and VXLAN Network ports.

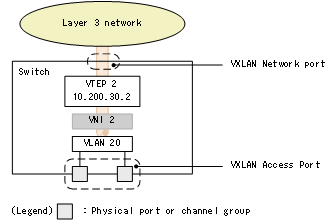

Figure 26-6: VXLAN Access and VXLAN Network ports
