9.2.3 Setting IP addressing to the Switch
- Points to note
-
To access the Switch from a remote operation terminal, you must first set an IP address in the interface that the terminal connects to.

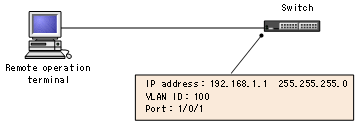

Figure 9-2: Example of connection with a remote operation terminal
Command examples
-
(config)# vlan 100
(config-vlan)# exit
Creates a port VLAN with VLAN ID 100, and switches to the VLAN configuration mode for VLAN 100.
-
(config)# interface gigabitethernet 1/0/1
(config-if)# switchport mode access
(config-if)# switchport access vlan 100
(config-if)# exit
Switches to the Ethernet interface configuration mode for port 1/0/1. Sets port 1/0/1 for the VLAN 100 access port.
-
(config)# interface vlan 100
(config-if)# ip address 192.168.1.1 255.255.255.0
(config-if)# exit
(config)#
Switches to interface configuration mode for VLAN ID 100. Sets IPv4 address 192.168.1.1 and subnet mask 255.255.255.0 for VLAN ID 100.
