36.2.2 Settings for distributing IP to clients

Points to note

Specify the IP addresses that you want to be excluded from assignment to DHCP clients. and then create a DHCP address pool and use it to dynamically distribute IP addresses to DHCP clients.

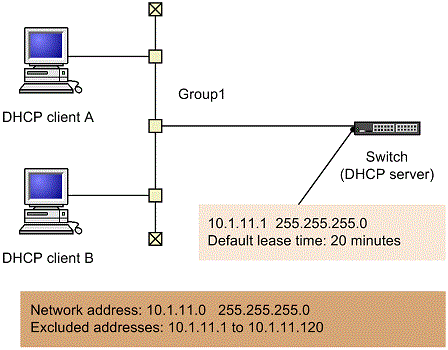

Figure 36-1: Client-server configuration (when IP is dynamically distributed)

Command examples

1. (config)# interface vlan 10

   (config-if)# ip address 10.1.11.1 255.255.255.0

   (config-if)# exit

   Sets the necessary VLAN interface and IP address in advance.

2. (config)# service dhcp vlan 10

   Specifies the name of the VLAN interface on which the DHCP server is enabled.

3. (config)# ip dhcp excluded-address 10.1.11.1 10.1.11.120

   Sets the IP addresses that are to be excluded from assignment to DHCP clients by the DHCP server.

4. (config)# ip dhcp pool Group1

   Creates a DHCP address pool.

   Switches to DHCP configuration mode.

5. (dhcp-config)# network 10.1.11.0 255.255.255.0

   Sets the network address of the DHCP address pool.

6. (dhcp-config)# lease 0 0 20

   Sets 20 minutes as the default lease time for the DHCP address pool.

7. (dhcp-config)# default-router 10.1.11.1

   Sets the IP address of the router on the subnet.
