24.1.2 VLAN

VLAN functionality divides a switch into virtual groups. A switch can be internally grouped into multiple VLANs to partition broadcast domains. This allows enhanced broadcast frame control and security.

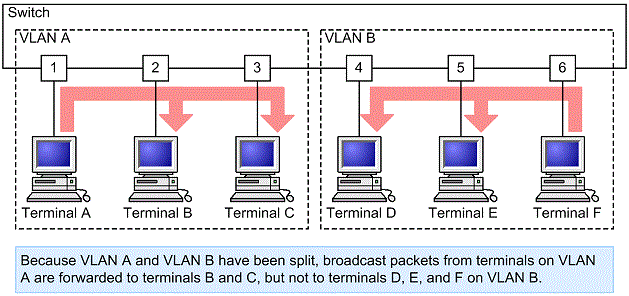

The figure below provides a VLAN overview. Because the broadcast domain is divided between VLAN A and VLAN B, no frames will arrive.

Figure 24-1 Overview of VLANs
