23.1.2 Configuring Link Aggregation

The figure below shows an example of a link aggregation configuration. In this example, four ports are aggregated. If a fault occurs on one of these ports, the faulty port is detached from the channel group, and communication continues by using the rest of the ports as the channel group.

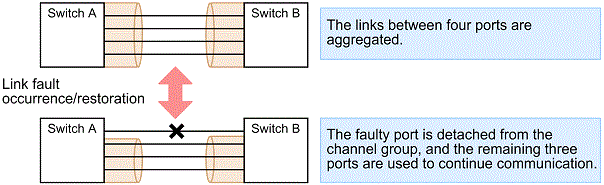

Figure 23-1: Example of link aggregation configuration
