22.3.4 PoE power supply distribution function

PoE Power Distribution function of the Switch reduces the peak-to-peak power consumption in thesystem by distributing PoE power supply starting times at startup. The following figure outlines PoE distribution function.

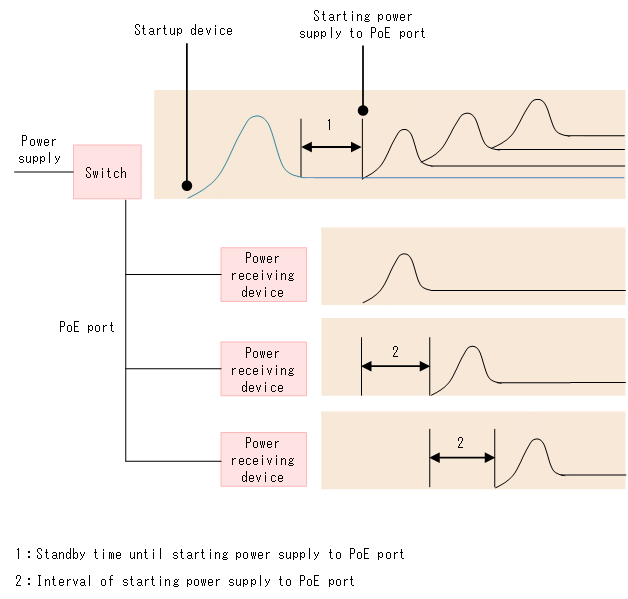

Figure 22-6 Outline of PoE power supply and distribution function

1. Standby time for starting PoE power supply to the equipment

   After the switch starts up, power supply is suppressed until PoE power supply start standby time specified in the configuration has elapsed.

2. Starting PoE power supply interval

   Power supply of the port is started according to the power supply start interval set in the configuration.

The above can be set using the configuration command power inline delay.
