9.1.1 Communication port connection

To log in to the Switch from a remote operation terminal via the communication port, you must first configure the connection in the Switch, including configuring a VLAN and setting its IP address. At initial deployment, no VLANs, IP addresses, or other settings are defined. Log in from the console to set up the connection.

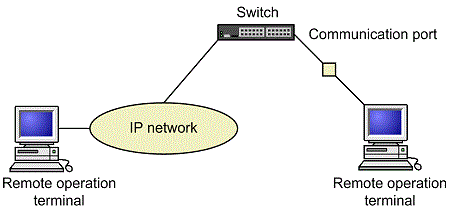

Figure 9-1: Logging in to the Switch from a remote operation terminal
